R8A774 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
IC MPU RZ/G2E 1.2GHZ 552FBGA
| Part | Core Processor | Number of Cores/Bus Width | Supplier Device Package | Mounting Type | Display & Interface Controllers | RAM Controllers | USB | Ethernet [Min] | Ethernet [Max] | Speed | Graphics Acceleration | Co-Processors/DSP | Additional Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - I/O | Number of Cores/Bus Width [custom] | Number of Cores/Bus Width [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

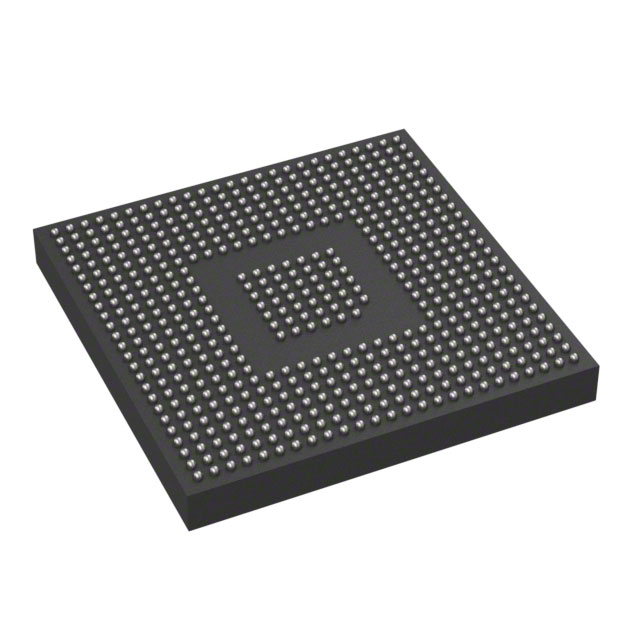

 Renesas Electronics Corporation | ARM® Cortex®-A53 | 2 64 Bit | 552-FBGA (21x21) | Surface Mount | MIPI-CSI | DDR3L | USB 2.0 (1) USB 3.0 (1) | 10 Mbps 100 Mbps | 100 Mbps 1000 Mbps | 1.2 GHz | Multimedia NEON™ MPE | CAN I2C MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 85 C | -40 ¯C | 552-FBGA | ||||

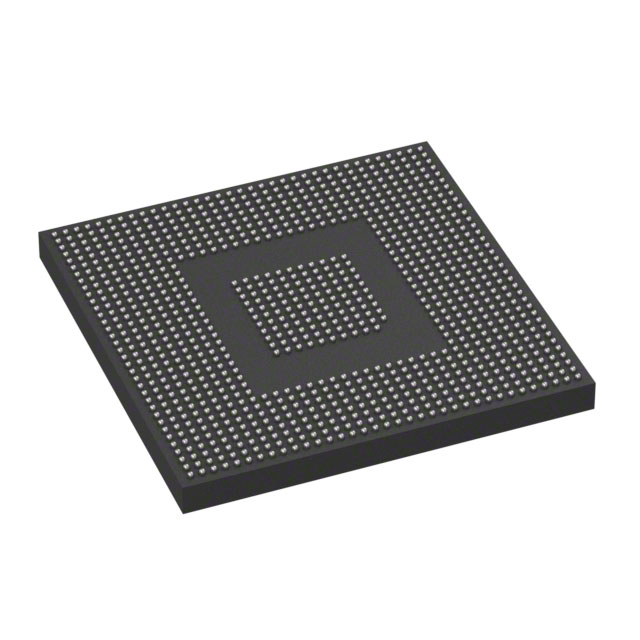

 Renesas Electronics Corporation | ARM® Cortex®-A57 | 2 64 Bit | 1022-FCBGA (29x29) 1022-FPBGA | Surface Mount | DU | LPDDR4 | USB (2) | 10 Mbps 100 Mbps | 100 Mbps 1000 Mbps | 1.5 GHz | CAN I2C SCI SPI | 85 C | -40 ¯C | 1022-BFBGA 1022-BGA FCBGA | 0.82 V 1.8 V 3.3 V | ||||
Renesas Electronics Corporation | ARM® Cortex®-A53 ARM® Cortex®-A57 | 1022-FPBGA (29x29) | Surface Mount | DU | LPDDR4 | USB (2) | 10 Mbps 100 Mbps | 100 Mbps 1000 Mbps | 1.2 GHz 1.5 GHz | CAN I2C SCI SPI | 85 C | -40 ¯C | 1022-BGA | 0.82 V 1.8 V 3.3 V | 64 Bit | 6 Core |
