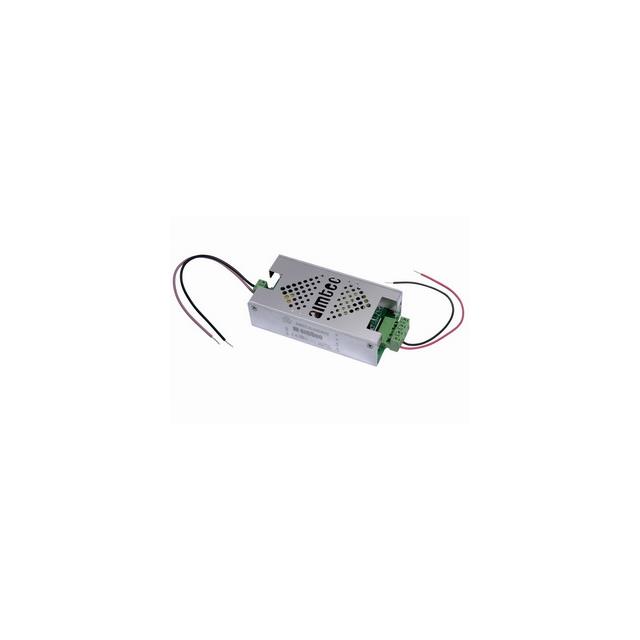

AMEC30 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 12V 30W
| Part | Applications | Type | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Efficiency | Features | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Approval Agency | Voltage - Output 1 | Mounting Type | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | ITE (Commercial) Medical | Enclosed | 264 VAC | 90 VAC | 30 Watts | 4.92 in | 125 mm | 2.56 in | 1.38 in | 35 mm | 65 mm | 60601-1 60950-1 | 83 % | Universal Input | -40 °C | 85 °C | 1 | CB CE cURus | 12 V | Chassis Mount | 4000 V | 2.5 A |
