Ultra-Small 1.5 A MOSFET Gate Driver
Key Features

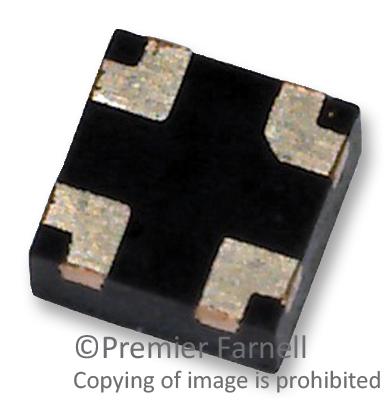

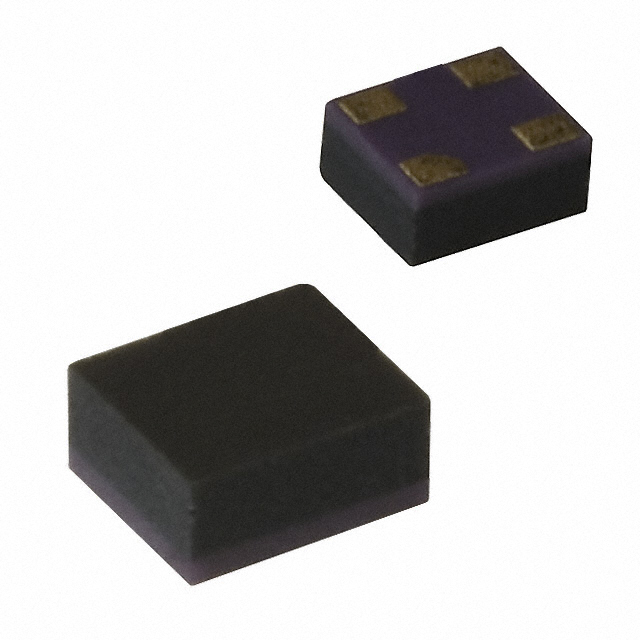

- Ultra-small 4-pin 1.2 x 1.2 mm thin QFN package
- 4.5 V to 18 V operating supply voltage range
- 1.5 A peak current
- 3.5 Ω output resistance at 18 V
- 9 Ω output resistance at 5 V
- Low steady-state supply current
- 77 µA control input low
- 445 µA control input high
- 12 ns rise and fall times into 1,000 pF load
- MIC4414 (non-inverting)
- MIC4415 (inverting)
- -40°C to +125°C junction temperature range
Description
AI
The MIC4414 and MIC4415 are low-side MOSFET gate drivers designed to switch an N-channel enhancement type MOSFET in low-side switch applications. The MIC4414 is a non-inverting driver and the MIC4415 is an inverting driver. These drivers feature short delays and high peak current to produce precise edges and rapid rise and fall times. The MIC4414/15 are powered from a 4.5 V to 18 V supply and can sink and source peak currents up to 1.5 A, switching a 1,000 pF capacitor in 12ns. The on-state gate drive output voltage is approximately equal to the supply voltage (no internal regulators or clamps). High supply voltages, such as 10 V, are appropriate for use with standard N-channel MOSFETs. Low supply voltages, such as 5 V, are appropriate for use with many logic-level N-channel MOSFETs. In a low-side configuration, the gate driver can control a MOSFET that switches any voltage up to the rating of the MOSFET. The MIC4414 and MIC4415 are available in an ultra-small 4-pin 1.2 x 1.2 mm thin QFN package and is rated for -40°C to +125°C junction temperature range.
