42M048 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM GEARED UNI 12V
| Part | Weight | Rotor Inertia | Step Angle | Coil Type | Size / Dimension Shape | Size / Dimension Diameter | Current Rating | Length - Shaft and Bearing | Steps per Revolution | Coil Resistance | Termination Style | Mounting Hole Spacing | Features | Type | Voltage - Rated | Torque - Holding (oz-in) | Torque - Holding (mNm) | Operating Temperature (Max) | Operating Temperature (Min) | Diameter - Shaft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

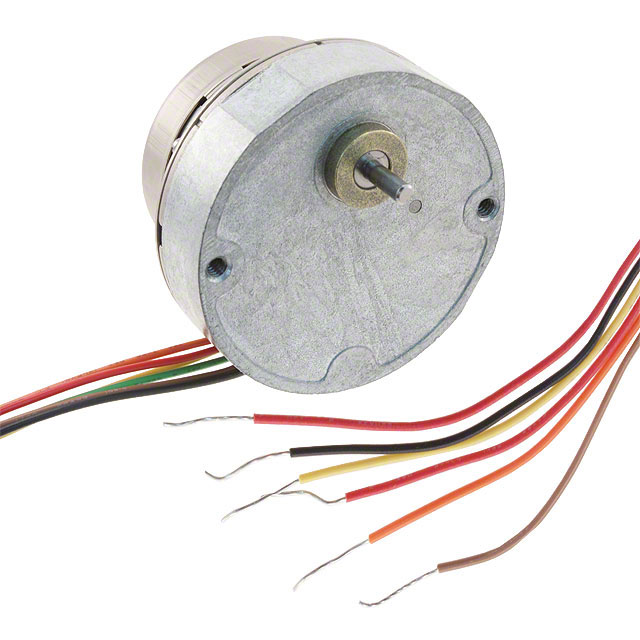

 Portescap | 0.688 lb | 12.5 gcm² | 0.75 ° | Unipolar | Round | 1.65 in | 0.23 A | 0.469 in | 480 steps | 52.4 Ohms | Wire Leads | 1.88 in | Round Shaft | Permanent Magnet Gear Motor | 12 VAC | 9.4 oz-in | 66.2 mNm | 70 °C | -20 °C | 0.093 in |

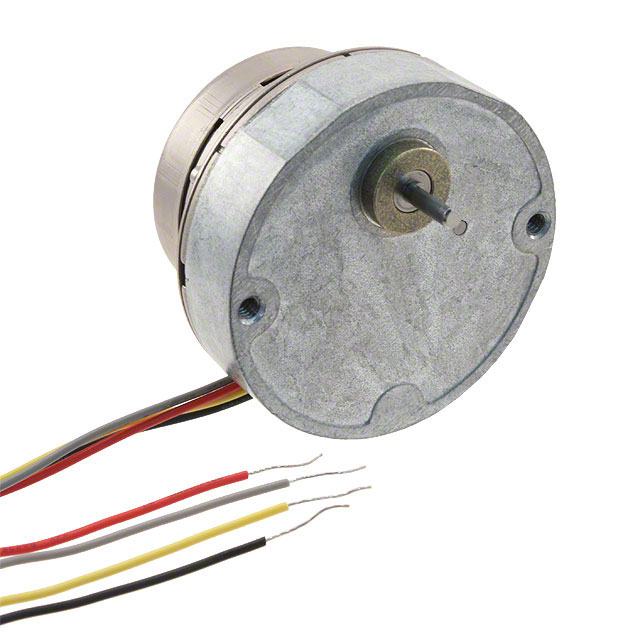

 Portescap | 0.688 lb | 12.5 gcm² | 0.75 ° | Bipolar | Round | 1.65 in | 0.55 A | 0.469 in | 480 steps | 9.1 Ohms | Wire Leads | 1.88 in | Round Shaft | Permanent Magnet Gear Motor | 12 VAC | 11.9 oz-in | 84 mNm | 70 °C | -20 °C | 0.093 in |
