ADIN1200 Series

Robust, Industrial, Low Power, 10 Mbps and 100 Mbps Ethernet PHY

Catalog

Robust, Industrial, Low Power, 10 Mbps and 100 Mbps Ethernet PHY

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Supplier Device Package	Mounting Type	Duplex	Type	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Number of Drivers/Receivers	Data Rate	Primary Attributes	Function	Contents	Supplied Contents

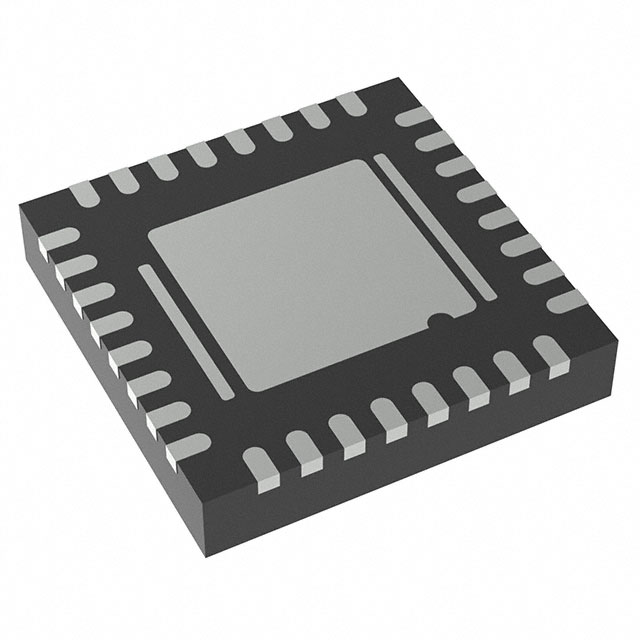

Analog Devices ADIN1200BCP32Z-R7	1.71 V 2.25 V 3.14 V	1.89 V 2.75 V 3.46 V	32-WFQFN Exposed Pad CSP	32-LFCSP (5x5)	Surface Mount	Full Half	Transceiver	85 °C	-40 °C	Ethernet IEEE 802.3 MII PHY2 RMII	1 4	10 Mbps 100 Mbps

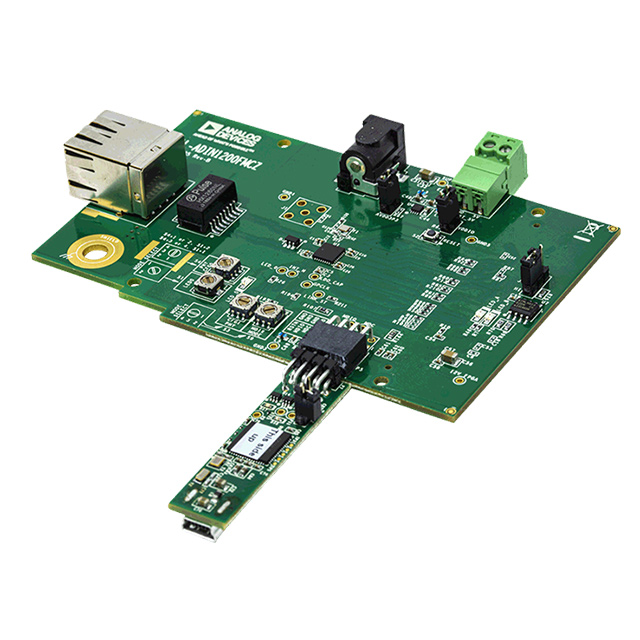

Analog Devices EVAL-ADIN1200FMCZ							Interface						Single Chip Hi-Speed USB to 10/100 Ethernet	Ethernet PHY	Board(s)	Board(s)
Analog Devices ADIN1200CCP32Z-R7	1.71 V 2.25 V 3.14 V	1.89 V 2.75 V 3.46 V	32-WFQFN Exposed Pad CSP	32-LFCSP (5x5)	Surface Mount	Full Half	Transceiver	105 °C	-40 °C	Ethernet IEEE 802.3 MII PHY2 RMII	1 4	10 Mbps 100 Mbps
Analog Devices ADIN1200CCP32Z	1.71 V 2.25 V 3.14 V	1.89 V 2.75 V 3.46 V	32-WFQFN Exposed Pad CSP	32-LFCSP (5x5)	Surface Mount	Full Half	Transceiver	105 °C	-40 °C	Ethernet IEEE 802.3 MII PHY2 RMII	1 4	10 Mbps 100 Mbps

Catalog

Robust, Industrial, Low Power, 10 Mbps and 100 Mbps Ethernet PHY

Key Features

• 10BASE-Te/100BASE-TX IEEE®802.3™compliant

• MII, RMII and RGMII MAC interfaces

• 100BASE-TX RGMII latency transmit: <124 ns, receive <250 ns

• 100BASE-TX MII latency transmit: <52 ns, receive <248 ns

• EMC test standardsIEC 61000-4-5 surge (±4 kV)IEC 61000-4-4 electrical fast transient (EFT) (±4 kV)IEC 61000-4-6 conducted immunity (10 V)EN55032 radiated emissions (Class A)EN55032 conducted emissions (Class A)

• IEC 61000-4-5 surge (±4 kV)

• IEC 61000-4-4 electrical fast transient (EFT) (±4 kV)

• IEC 61000-4-6 conducted immunity (10 V)

• EN55032 radiated emissions (Class A)

• EN55032 conducted emissions (Class A)

• Unmanaged configuration using multilevel pin strapping

• EEE in accordance with IEEE 802.3az

• Start of packet detection for IEEE 1588 time stamp support

• Enhanced link detection

• Configurable LED

• Crystal oscillator/clock input: 25 MHz

• 25 MHz/125 MHz synchronous clock output

• Small package and wide temperature range32-lead, 5 mm × 5 mm LFCSPSpecified for −40°C to +105°C and −40°C to +85°C ambient operation

• 32-lead, 5 mm × 5 mm LFCSP

• Specified for −40°C to +105°C and −40°C to +85°C ambient operation

• Low power consumption139 mW for 100BASE-TX3.3 V/2.5 V/1.8 V MAC interface VDDIO supplySingle-supply operation with 3.3 V VDDIOIntegrated power supply monitoring and POR

• 139 mW for 100BASE-TX

• 3.3 V/2.5 V/1.8 V MAC interface VDDIO supply

• Single-supply operation with 3.3 V VDDIO

• Integrated power supply monitoring and POR

Description

The ADIN1200 is a low power, single-port, 10 Mbps and 100 Mbps Ethernet transceiver with low latency specifications designed for industrial Ethernet applications.This design integrates an energy efficient Ethernet (EEE) physical layer device (PHY) core with all associated common analog circuitry, input and output clock buffering, management interface and subsystem registers, and media access control (MAC) interface and control logic to manage the reset, clock control and pin configuration.The ADIN1200 is available in a 5 mm × 5 mm, 32-lead lead frame chip scale package (LFCSP) and can operate with a single 3.3 V supply, assuming the use of a 3.3 V MAC interface supply. For maximum flexibility in system level design, a separate VDDIO supply enables the management data input/output (MDIO) and MAC interface supply voltages to be configured independently of the other circuitry on the ADIN1200 allowing operation at 1.8 V, 2.5 V, or 3.3 V. At power-up, the ADIN1200 is held in hardware reset until each of the supplies has crossed its minimum rising threshold value and the power is considered good. Brownout protection is provided by monitoring the supplies to detect if one or more of them drops below a minimum falling threshold and holding the device in hardware reset until the power supplies return and satisfy the power-on-reset (POR) circuit.The MII management interface (also referred to as MDIO interface) provides a 2-wire serial interface between a host processor or MAC and the ADIN1200, allowing access to control and status information in the PHY core management registers. The interface is compatible with both IEEE®802.3™Standard Clause 22 and Clause 45 management frame structures.The ADIN1200 can support cable lengths up to 180 meters.Note that throughout this data sheet, multifunction pins, such as XTAL_I/CLK_IN/REF_CLK, are referred to either by the entire pin name or by a single function of the pin, for example, XTAL_I, when only that function is relevant.ApplicationsIndustrial automationProcess controlFactory automationRobotics and motion ControlBuilding automationTest and MeasurementIndustrial internet of things (IoT)
