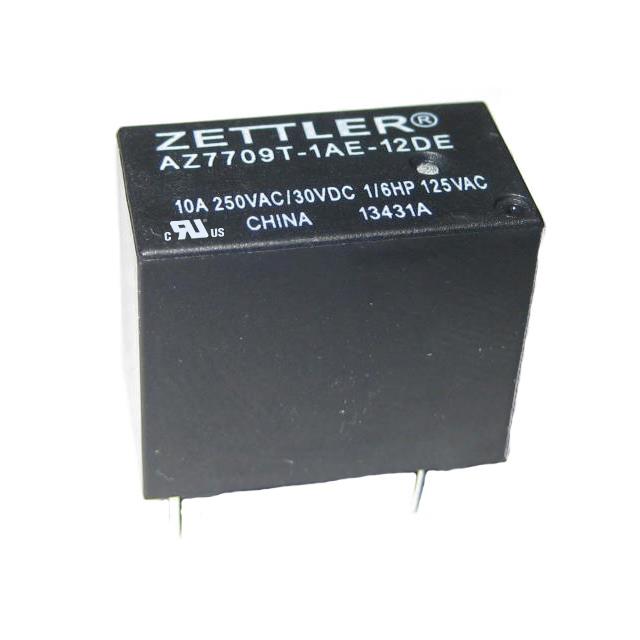

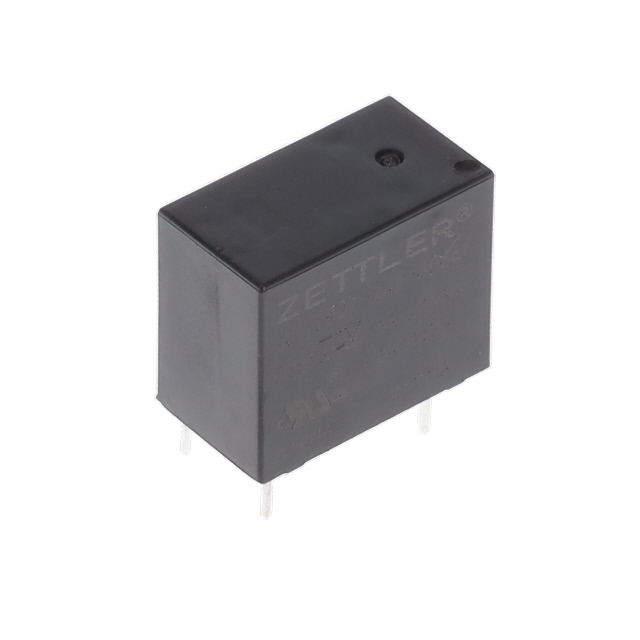

AZ7709T Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 18V
| Part | Coil Resistance | Coil Voltage | Contact Form | Relay Type | Approval Agency | Release Time | Must Operate Voltage | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Termination Style | Switching Voltage [Max] | Coil Type | Coil Current | Seal Rating | Load - Max Switching | Contact Material | Mounting Type | Operate Time | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 1.62 kOhms | 18 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 13.5 VDC | 10 A | 85 °C | -40 C | 0.9 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 11.1 mA | Sealed - Fully | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | |
American Zettler | 55 Ohms | 5 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 3.5 VDC | 10 A | 105 ░C | -40 C | 0.25 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 90.9 mA | Sealed - Fully | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F |
American Zettler | 48 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 10 A | 85 °C | -40 C | 2.4 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | |||||
American Zettler | 720 Ohms | 18 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 12.6 VDC | 10 A | 105 ░C | -40 C | 0.9 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 25 mA | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F | |
American Zettler | 400 Ohms | 9 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 6.75 VDC | 10 A | 85 °C | -40 C | 0.45 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 22.5 mA | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | ||
American Zettler | 24 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 18 VDC | 10 A | 85 °C | -40 C | 1.2 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 8.6 mA | Sealed - Fully | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | ||
American Zettler | 1.62 kOhms | 18 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 13.5 VDC | 10 A | 105 ░C | -40 C | 0.9 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 11.1 mA | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F | |
 American Zettler | 720 Ohms | 12 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 9 VDC | 10 A | 105 ░C | -40 C | 0.6 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 16.7 mA | Sealed - Fully | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F |
 American Zettler | 180 Ohms | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 4.5 VDC | 10 A | 105 ░C | -40 C | 0.3 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 33.3 mA | Sealed - Fully | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F | |
American Zettler | 55 Ohms | 5 VDC | SPST-NO (1 Form A) | General Purpose | CUR TUV UL | 4 ms | 3.5 VDC | 10 A | 105 ░C | -40 C | 0.25 VDC | PC Pin | 30 VDC 250 VAC | Non Latching | 90.9 mA | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | Through Hole | 8 ms | Class F |
