Outdoor-Surge-Protector Series

Outdoor PoE lightning surge protector

Catalog

Outdoor PoE lightning surge protector

Part	Accessory Type	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Ports	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Output Connector	Data Rate	Mounting Type
Microchip Technology PD-OUT/MBK/GCO	Bracket	PH M5X18

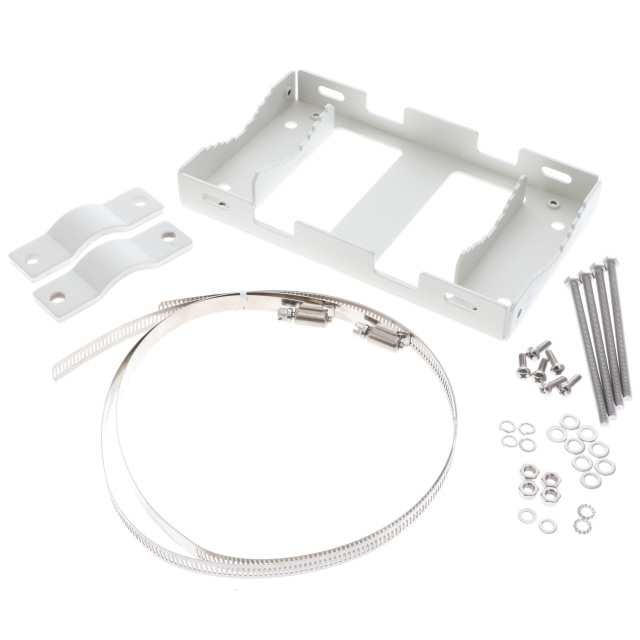

Microchip Technology PD-OUT/MBK/ET	Mounting Brackets
Microchip Technology PD-OUT/MBK/G	Mounting Brackets

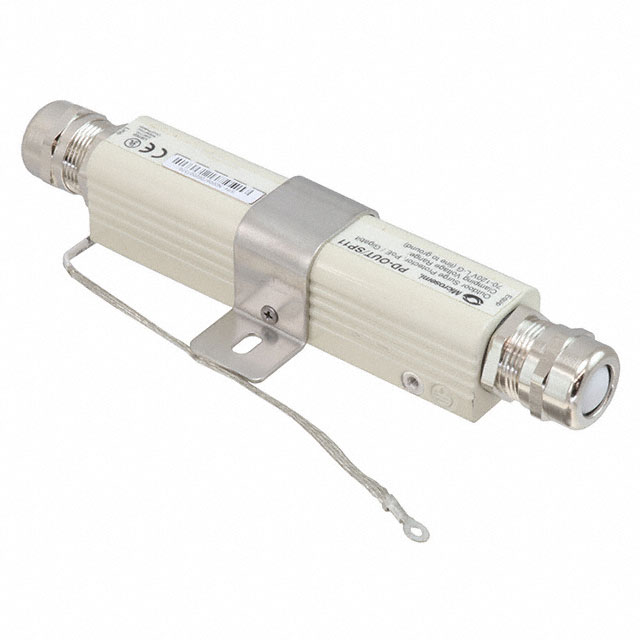

Microchip Technology PD-OUT/SP11			30 mm	7.48 "	1.18 in	30 mm	190 mm	1.18 in	1	IP66	UL	85 °C	-40 °C	RJ45 (Data Power)	RJ45 (Data Power)	10 Mbps 100 Mbps 1000 Mbps	Wall Mount

Catalog

Outdoor PoE lightning surge protector

Key Features

- Supports data rates of up to 1Gbps

- Protects up to 10KV surge

- All eight lines protected including PoE

- Waterproof—IP66 rated

- Supports data rates of up to 1GbpsProtects up to 10KV surgeAll eight lines protected including PoEWaterproof—IP66 rated

- Complies with the latest safety standards

Description

The PD-OUT-SP11 is a high quality surge protection device designed to protect indoor Ethernet networks from lighting that may come from outdoor environment through the Ethernet cable. The product is enclosed in a metal weatherproof enclosure, meeting IP66. It can be easily mounted on a wall or a pole. The SP device can be installed before the cable enters the building to protect the indoor network or immediately adjacent to the wall- or pole-mounted outdoor device (i.e. WLAN AP, IP Camera, etc.).
