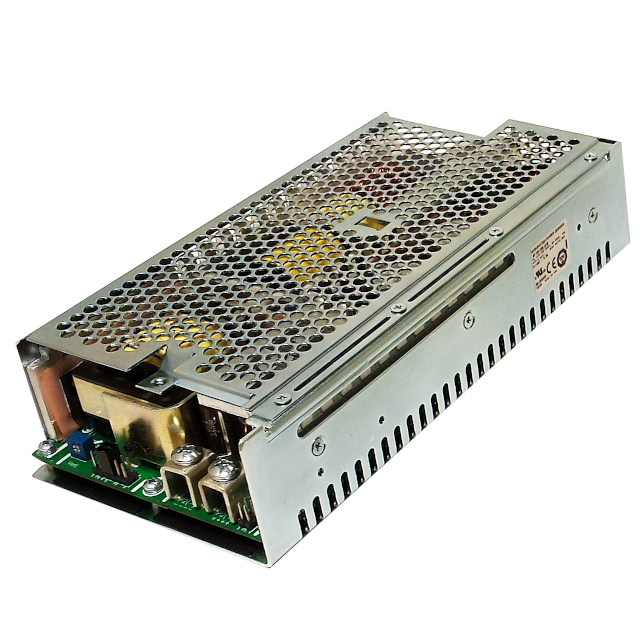

1010941 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
NXT-400-1007,LS CHCO
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Features | Current - Output 1 | Standard Number | Voltage - Output 1 | Power (Watts) | Approval Agency | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 4 " | 8.28 " | 101.6 mm | 210.4 mm | 1.8 in | 45.7 mm | Chassis Mount | 70 °C | 0 °C | 1 | Adjustable Output Remote Sense Universal Input | 14.3 A | 60601-1; 62368-1 | 28 V | 400 W | CE cURus TUV UKCA | ITE (Commercial) Medical | 100 VAC | 240 VAC | 85 % | Enclosed |
