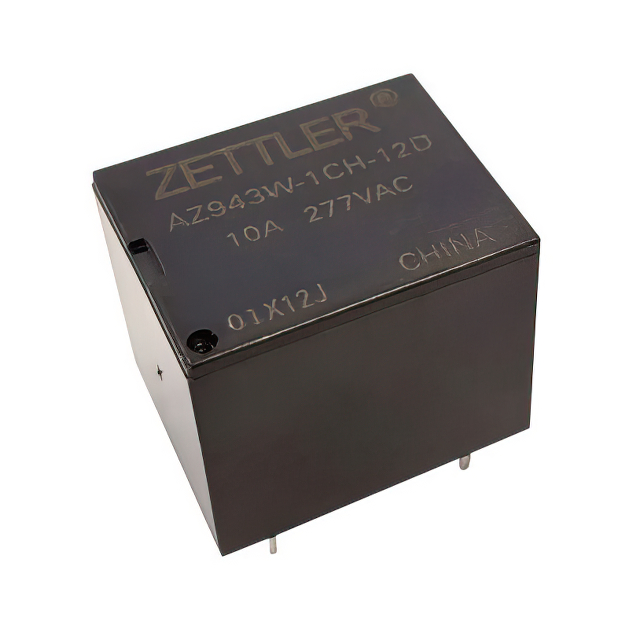

AZ943W-1A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 12V
| Part | Coil Resistance | Contact Material | Load - Max Switching | Mounting Type | Must Operate Voltage | Coil Insulation | Coil Voltage | Termination Style | Release Time | Coil Type | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Relay Type | Coil Current | Contact Rating (Current) | Contact Form | Seal Rating | Approval Agency | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 270 Ohms | Silver Tin Oxide (AgSnO) | 300 W 2770 VA | Through Hole | 9 VDC | Class F | 12 VDC | PC Pin | 5 ms | Non Latching | 30 VDC 277 VAC | 70 °C | -40 C | 1.2 VDC | General Purpose | 44.4 mA | 10 A | SPST-NO (1 Form A) | Sealed - Flux Protection | cUR TUV UL VDE | 10 ms |
