BYT30 Series

Catalog

DIODE GEN PURP 400V 30A D2PAK

Part	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Supplier Device Package	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]
STMicroelectronics BYT30G-400-TR	30 A	400 V	Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	D2PAK	200 mA 500 ns	1.5 V	35 µA	Surface Mount	-40 °C	150 °C

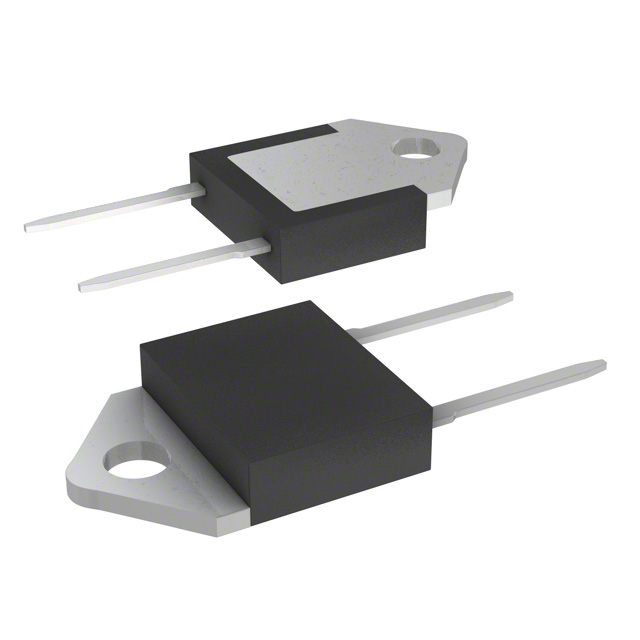

STMicroelectronics BYT30PI-1000RG	30 A	1000 V	Standard	DOP3I-2 Insulated (Straight Leads)	DOP3I	200 mA 500 ns		100 µA	Through Hole	-40 °C	150 °C	165 ns	1.9 V
STMicroelectronics BYT30P-400	30 A	400 V	Standard	SOD-93-2	SOD-93-2	200 mA 500 ns	1.5 V	35 µA	Through Hole	-40 °C	150 °C
