MLX90809 Series

Catalog

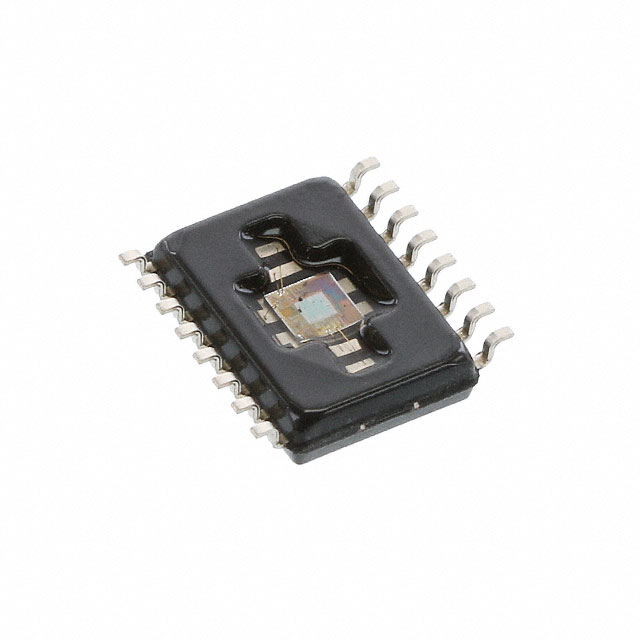

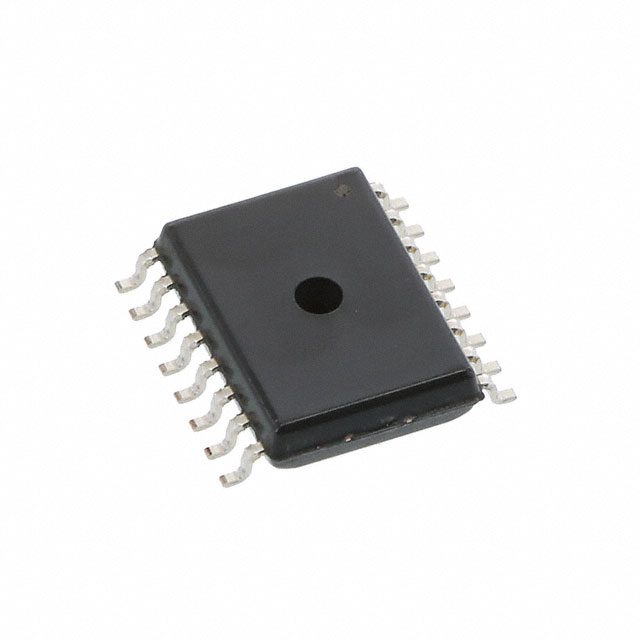

SENSOR 0.73PSID 4.5V 16SOIC

Part	Output [Max]	Output [Min]	Package / Case	Output Type	Termination Style	Mounting Type	Port Style	Features	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Applications	Accuracy	Output	Operating Pressure [Max]	Operating Pressure [Min]
Melexis Technologies NV MLX90809LXG-EAD-000-RE	4.5 V	0.5 V	16-SOIC (0.295" 7.50mm Width) Exposed Pad	Analog Voltage	Gull Wing	Surface Mount	No Port	Amplified Output Temperature Compensated	Differential	-40 C	150 °C	0.73 PSI	5 kPa	-105 kPa	-15.23 PSI	5.5 V	4.5 V	16-SOIC	Board Mount	1.5 %
Melexis Technologies NV MLX90809LXG-EAD-100-SP			16-SOIC (0.295" 7.50mm Width) Exposed Pad	FA2 Pico-SPOX	Gull Wing	Surface Mount	No Port	Amplified Output Temperature Compensated	Differential	-40 C	150 °C		0.73 PSI	-17.4 PSI		5.5 V	4.5 V	16-SOIC	Board Mount	1.5 %	12 b	5 kPa	-120 kPa
Melexis Technologies NV MLX90809LXG-EAD-000-SP	4.5 V	0.5 V	16-SOIC (0.295" 7.50mm Width) Exposed Pad	Analog Voltage	Gull Wing	Surface Mount	No Port	Amplified Output Temperature Compensated	Differential	-40 C	150 °C	0.73 PSI	5 kPa	-105 kPa	-15.23 PSI	5.5 V	4.5 V	16-SOIC	Board Mount	1.5 %
