C2514 Series
Manufacturer: Prysmian Group
Beta
⌘K

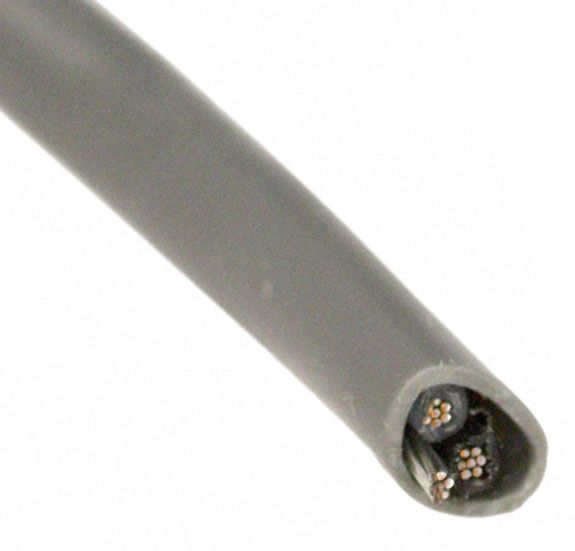

CABLE 2COND 22AWG GRAY SHLD
| Part | Conductor Insulation | Jacket Color | Jacket (Insulation) Material | Ratings | Shield Type | Shield Coverage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Usage | Cable Type | Voltage | Features | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Polyethylene (PE) | Gray | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | 100 % | 22 AWG | 0.02 " | 0.508 mm | Copper Annealed Tinned | Communication Control | Multi-Conductor | 300 VDC | Drain Wire | Flexfoil® | 30 AWG | 7 | 4.24 mm | 0.167 in | 2 | ||
 Prysmian Group | Polyethylene (PE) | Gray | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | 100 % | 22 AWG | 0.02 " | 0.508 mm | Copper Annealed Tinned | Communication Control | Multi-Conductor | 300 VDC | Drain Wire | Flexfoil® | 30 AWG | 7 | 4.24 mm | 0.167 in | 2 | 152.4 m | 500 ft |
Prysmian Group | Polyethylene (PE) | Gray | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | 22 AWG | 0.02 " | 0.508 mm | Copper Annealed Tinned | Communication Control | Multi-Conductor | 300 VDC | Drain Wire | 30 AWG | 7 | 4.24 mm | 0.167 in | 2 | 152.4 m | 500 ft | ||
Prysmian Group | Polyethylene (PE) | Gray | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Foil | 22 AWG | 0.02 " | 0.508 mm | Copper Annealed Tinned | Communication Control | Multi-Conductor | 300 VDC | Drain Wire | 30 AWG | 7 | 4.24 mm | 0.167 in | 2 |
