AME15 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 15V 15W

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Load Regulation	Type	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Line Regulation	Power (Watts)	Number of Outputs	Package / Case	Voltage - Output 1	Approval Agency	Weight [custom]	Weight [custom]	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Load Regulation	Current - Output (Max)	Current - Output (Max)
aimtec AME15-15SVZ	Through Hole	-40 °C	85 °C	80 %	±1%	Enclosed	ITE (Commercial)	1 A	0.88 in	22.5 mm	62 mm	1.77 in	2.44 "	45 mm	Universal Input	0.5 %	15 W	1	8-DIP Module 4 Leads	15 V	CE cURus

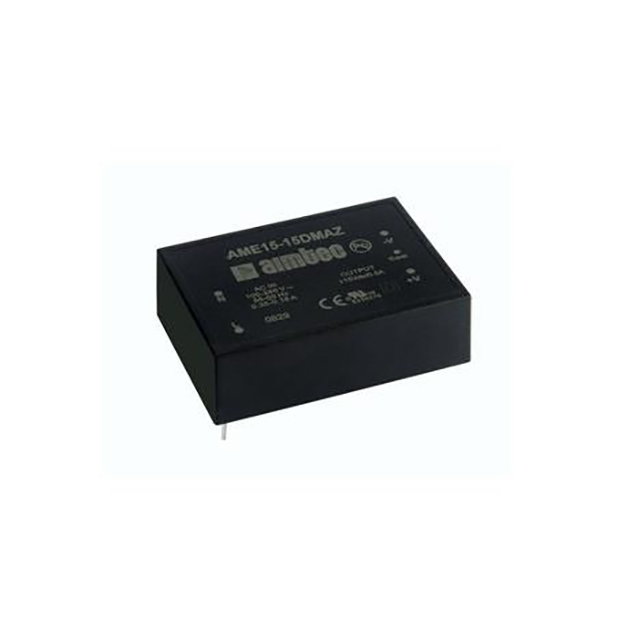

aimtec AME15-5SMAZ	Through Hole	-40 °C	85 °C	77 %	±1%	Enclosed	ITE (Commercial) Medical	3 A	0.79 in		65 mm	1.83 in	2.56 in		Universal Input	1 %	15 W	1	6-DIP Module 4 Leads	5 V	CB CE cULus cURus UL	0.22 lb	100 g	60601-1	20.1 mm	46.5 mm	264 VAC	90 VAC
aimtec AME15-12SMAZ	Through Hole	-40 °C	85 °C	79 %	±1%	Enclosed	ITE (Commercial) Medical	1.25 A		0.83 "	2.56 in			1.83 "	Universal Input	1 %	15 W	1	6-DIP Module 4 Leads	12 V	CB CE cULus cURus UL			60601-1		46.5 mm	264 VAC 370 VDC	90 VAC 130 VDC	65 mm	21 mm
aimtec AME15-24DCJZ	Through Hole	-25 °C	70 °C	83 %		Enclosed	ITE (Commercial)			0.89 in 22.5 mm	2.44 in 62 mm			1.77 in 45 mm	Universal Input	1.5 %	15 W	2	7-DIP Module 5 Leads	24 V	CE cURus	0.187 lb	85 g								1.5 %	310 mA	310 mA
aimtec AME15-512DCJZ	Through Hole	-25 °C	70 °C	80 %		Enclosed	ITE (Commercial)			0.89 in 22.5 mm	2.44 in 62 mm			1.77 in 45 mm	Universal Input	1.5 %	15 W	2	7-DIP Module 6 Leads	5 V	CE cURus	0.187 lb	85 g								1.5 %	2 A 400 mA

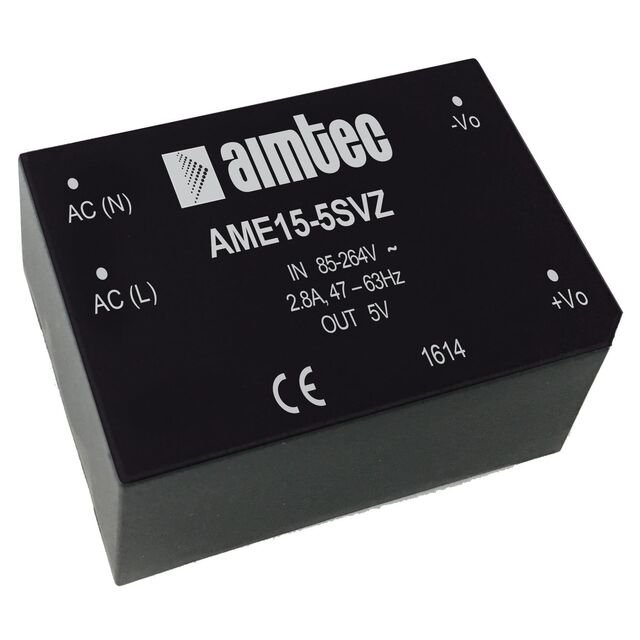

aimtec AME15-9SVZ	Through Hole	-40 °C	85 °C	78 %	±1%	Enclosed	ITE (Commercial)	1.6 A	0.88 in	22.5 mm	62 mm	1.77 in	2.44 "	45 mm	Universal Input	0.5 %	15 W	1	8-DIP Module 4 Leads	9 V	CE cURus
