ADR127 Series

Precision, Micropower LD0 1.25 VOUTVoltage Reference in TSOT

Catalog

Precision, Micropower LD0 1.25 VOUTVoltage Reference in TSOT

Part	Supplier Device Package	Current - Supply	Voltage - Output (Min/Fixed)	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Tolerance	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Noise - 0.1Hz to 10Hz	Reference Type	Current - Output

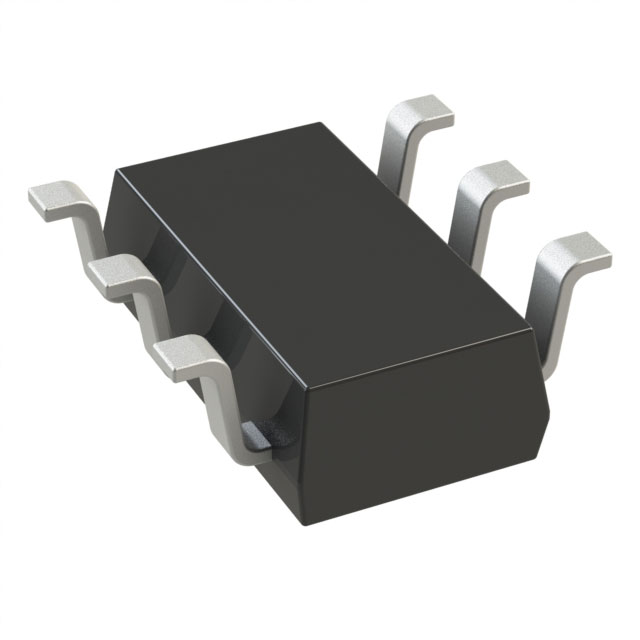

Analog Devices ADR127BUJZ-REEL7	TSOT-6	95 µA	1.25 V	18 V	2.7 V	SOT-23-6 Thin TSOT-23-6	0.12 %	1.81 mOhm	Surface Mount	-40 °C	125 °C	9 ppm/°C	9 µVpp/V	Series	5 mA

Catalog

Precision, Micropower LD0 1.25 VOUTVoltage Reference in TSOT

Key Features

• Initial accuracyA grade: ±0.24%B grade: ±0.12%

• Maximum temperature coefficientA grade: 25 ppm/°CB grade: 9 ppm/°C

• Low dropout: 300 mV for ADR121, ADR125

• High output current: +5 mA/−2 mA

• Low typical operating current: 85 μA

• Input range: 2.7 V to 18 V for ADR127

• Temperature range: −40°C to +125°C

• Tiny TSOT (UJ-6) package

Description

TheADR121/ADR125/ ADR127 are a family of micropower, high precision, series mode, band gap references with sink and source capability. The parts feature high accuracy and low power consumption in a tiny package. The ADR12x design includes a patented temperature-drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. temperature characteristics.The ADR12x is a low dropout voltage reference, requiring only 300 mV for ADR121 / ADR125 and 1.45 V for ADR127 above the nominal output voltage on the input to provide a stable output voltage. This low dropout performance, coupled with the low 85 μA operating current, makes the ADR12x ideal for battery-powered applications.Available in an extended industrial temperature range of −40°C to +125°C, the ADR121 / ADR125 / ADR127 are housed in the tiny TSOT (UJ-6) package.APPLICATIONSBattery-powered instrumentationPortable medical equipmentData acquisition systemsAutomotive
