01342 Series

Catalog

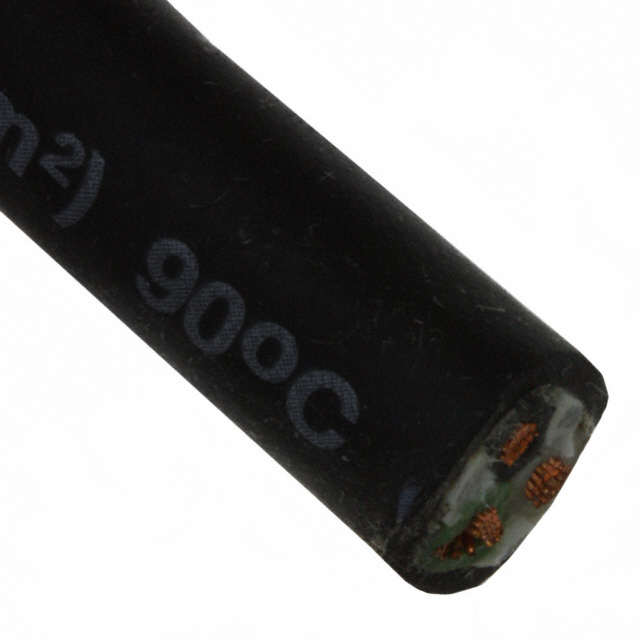

CABLE 3COND 16AWG BLACK 500'

Part	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Usage	Length [x]	Length [x]
Prysmian Group 01342.38T.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	152.4 m	500 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black
Prysmian Group 01342.15.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	76.2 m	250 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black	Cord and Cordset
Prysmian Group 01342.38.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	152.4 m	500 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black
Prysmian Group 01342.41.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	304.8 m	1000 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black
Prysmian Group 01342.44.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	762 m	2500 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black
Prysmian Group 01342.44.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	762 m	2500 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black
Prysmian Group 01342.15.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	76.2 m	250 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black	Cord and Cordset
Prysmian Group 01342.41T.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26	15.24 m 304.8 m	50 ft 1000 ft	Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black		100 ft	30.5 m
Prysmian Group 01342.82.01	300 VDC	0.33 in	8.38 mm	Copper Annealed Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26			Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black		100 ft	30.5 m
Prysmian Group 01342.99.01	300 VDC	0.33 in	8.38 mm	Copper Bare	90 °C	-40 C	3	Ethylene Propylene Terpolymer Rubber (EPDM)	30 AWG	26			Multi-Conductor	0.03 in	0.762 mm	Carolprene	16 AWG	Black		1 '	300 mm
