3N163 Series
Manufacturer: Linear Integrated Systems, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
P-CHANNEL, SINGLE ENHANCEMENT MO
| Part | Package / Case | Power Dissipation (Max) | Technology | Current - Continuous Drain (Id) | Rds On (Max) | FET Type | Input Capacitance (Ciss) (Max) | Drain to Source Voltage (Vdss) | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Package Name | Vgs(th) (Max) | Vgs (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Linear Integrated Systems, Inc. | TO-206AF TO-72-4 Metal Can | 375 mW | MOSFET (Metal Oxide) | 50 mA | 250 Ohm | P-Channel | 3.5 pF | 40 V | Through Hole | 20 V | TO-72-4 | 5 V | -6.5 V |

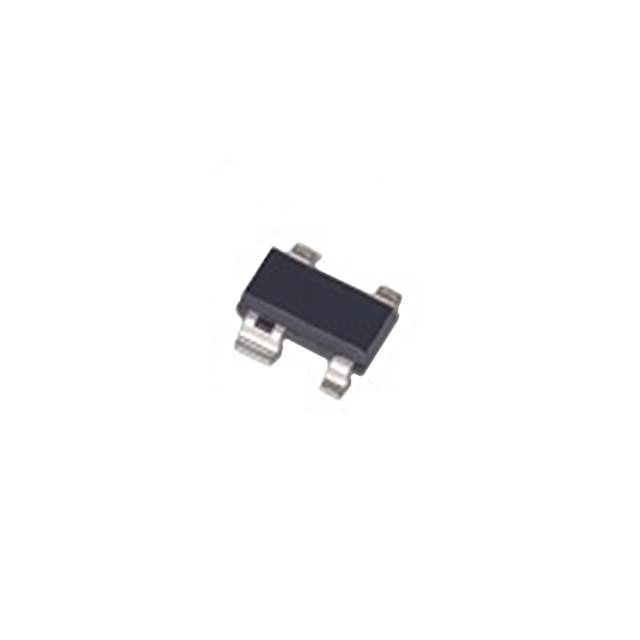

 Linear Integrated Systems, Inc. | TO-253-4 TO-253AA | 350 mW | MOSFET (Metal Oxide) | 50 mA | 250 Ohm | P-Channel | 3.5 pF | 40 V | Surface Mount | 20 V | SOT-143-4 | 5 V | -6.5 V |
