RM15WTRZB Series

Catalog

CONN RCPT FMALE 4 POS

Part	Orientation	Mounting Type	Mounting Feature	Connector Type	Fastening Type	Number of Positions	Shell Size - Insert [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Material	Material Flammability Rating	Current Rating (Amps)	Shell Finish	Ingress Protection	Color	Shell Material	Insert Material	Voltage Rating	Shielding
Hirose Electric Co Ltd RM15WTRZB-4S(72)	Keyed	Panel Mount	Flange	Receptacle Female Sockets	Threaded	4	15

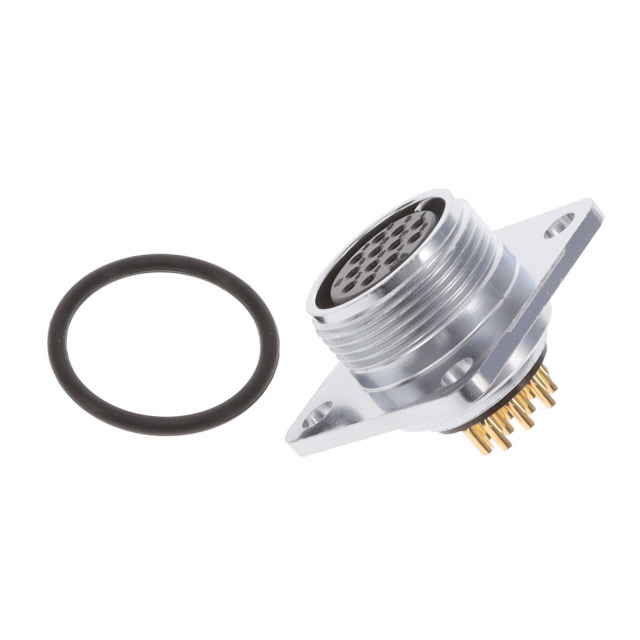

Hirose Electric Co Ltd RM15WTRZB-12S(72)	Keyed	Panel Mount	Flange	Receptacle Female Sockets	Threaded	12	15	8 µin	0.203 µm	Gold	85 °C	-25 °C	Metal	Copper Alloy	UL94 V-0	5 A	Chrome	IP67/IP68	Silver	Zinc Alloy	Diallyl Phthalate (DAP)	350 VAC 490 VDC
Hirose Electric Co Ltd RM15WTRZB-8S(77)	Keyed	Panel Mount	Flange	Receptacle Female Sockets	Threaded	8	15				85 °C	-25 °C	Metal		UL94 V-0	5 A		IP67/IP68	Silver	Brass Zinc Alloy		500 VAC 700 VDC	Unshielded
Hirose Electric Co Ltd RM15WTRZB-10P(77)	Keyed	Panel Mount	Flange	Receptacle Male Pins	Threaded	10	15				85 °C	-25 °C	Metal		UL94 V-0	5 A		IP67/IP68	Silver	Brass Zinc Alloy		350 VAC 490 VDC	Unshielded
Hirose Electric Co Ltd RM15WTRZB-4PA-A(11)	Keyed	Panel Mount	Flange	Receptacle Male Pins	Threaded	4	15				85 °C	-25 °C	Metal		UL94 V-0	10 A		IP67/IP68	Silver	Brass Zinc Alloy		500 VAC 700 VDC	Unshielded

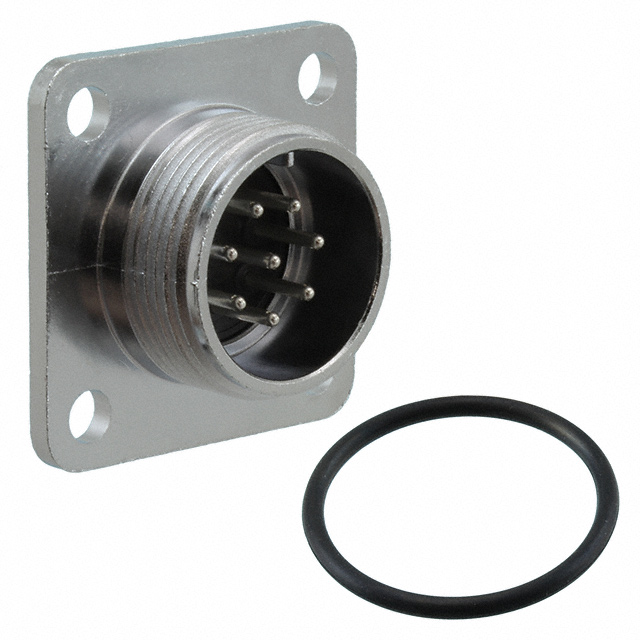

Hirose Electric Co Ltd RM15WTRZB-8P(71)	Keyed	Panel Mount	Flange	Receptacle Male Pins	Threaded	8	15	78.7 µin	2 µm	Silver	85 °C	-25 °C	Metal	Copper Alloy	UL94 V-0	5 A	Chrome	IP67/IP68	Silver	Zinc Alloy	Diallyl Phthalate (DAP)	500 VAC 700 VDC

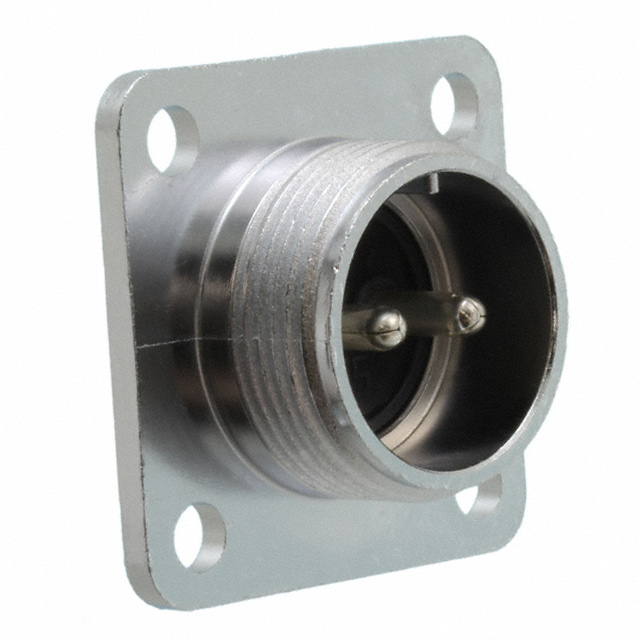

Hirose Electric Co Ltd RM15WTRZB-2P(71)	Keyed	Panel Mount	Flange	Receptacle Male Pins	Threaded	2	15	78.7 µin	2 µm	Silver	85 °C	-25 °C	Metal	Copper Alloy	UL94 V-0	10 A	Chrome	IP67/IP68	Silver	Zinc Alloy	Diallyl Phthalate (DAP)	600 VAC 840 VDC
