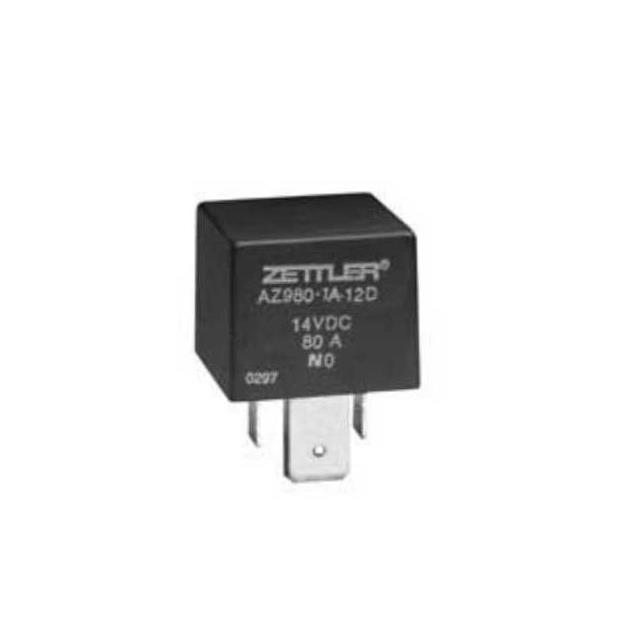

AZ980 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 12V
| Part | Coil Power | Contact Material | Coil Resistance | Coil Type | Contact Form | Coil Voltage | Must Operate Voltage | Termination Style | Release Time | Contact Rating (Current) | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Operate Time | Mounting Type | Features | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | Non Latching | SPST-NO (1 Form A) | 12 VDC | 7.8 VDC | Plug In Quick Connect | 5 ms | 80 A | 30 VDC | 85 °C | -40 C | 1.2 VDC | 7 ms | Socketable | Sealed - Epoxy SUPER-ISO | 133.3 mA |
American Zettler | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | Non Latching | SPDT (1 Form C) | 12 VDC | 7.8 VDC | Plug In Quick Connect | 5 ms | 60 A | 30 VDC | 85 °C | -40 C | 1.2 VDC | 7 ms | Socketable | Sealed - Epoxy SUPER-ISO | 133.3 mA |
