SDDB Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

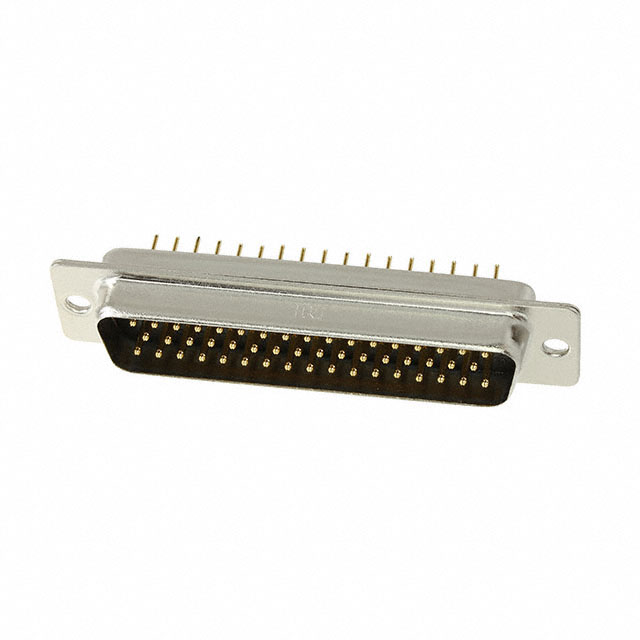

CONN D-SUB PLUG 50P PNL MNT SLDR
| Part | Contact Material | Dielectric Material | Color | Voltage Rating | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Flange Feature | Material Flammability Rating | Connector Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Shell Material, Finish | Number of Rows [custom] | Mounting Type | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 350 VDC | D-Sub | 0.203 çm | 8 µin | 50 | Housing/Shell (Unthreaded) | UL94 V-0 | Plug Male Pins | Solder | 5 | D DD | Signal | Nickel Plated Steel | 3 | Panel Mount Through Hole | 3 A | Gold |
 Hirose Electric Co Ltd | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 350 VDC | D-Sub | 0.203 çm | 8 µin | 50 | Housing/Shell (Unthreaded) | UL94 V-0 | Receptacle Female Sockets | Solder | 5 | D DD | Signal | Nickel Plated Steel | 3 | Panel Mount Through Hole | 3 A | Gold |
