1441 Series

Catalog

BLACK STEEL WALL MOUNT CHASSIS ENCLOSURE

Part	Weight [custom]	Weight [custom]	Material	Height [z]	Height [z]	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Color	Design	Features	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Area (L x W)	Area (L x W)	Size / Dimension [y]	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Thickness	Height
Hammond Manufacturing 1441-24BK3	2.3 lbs	1 kg	Metal Steel	77.22 mm	3.04 in	20 Gauge	619 cm²	96 in²	Black	Open End(s)	Hardware not Provided	Chassis	8 "	304.8 mm	12 "	203.2 mm
Hammond Manufacturing 1441-33			Metal Steel	102.62 mm	4.04 in	20 Gauge			Gray	Open End(s)	Hardware not Provided	Chassis	10 "	431.8 mm	17 "		4.1 lbs	1.9 kg	170 in²	1097 cm²	254 mm
Hammond Manufacturing 1441-26			Metal Steel	51.82 mm	2.04 in	20 Gauge			Gray	Open End(s)	Hardware not Provided	Chassis	8 "	406.4 mm	16 in	203.2 mm	2.6 lbs	1.2 kg		826 cm²		128 in²
Hammond Manufacturing 1441-22BK3CWW			Metal Steel Wood	48.97 mm	1.928 in	20 Gauge			Black	Open End(s)		Chassis		302.97 mm		201.37 mm			94.5 in˛	610 cm˛			7.928 in	11.928 in

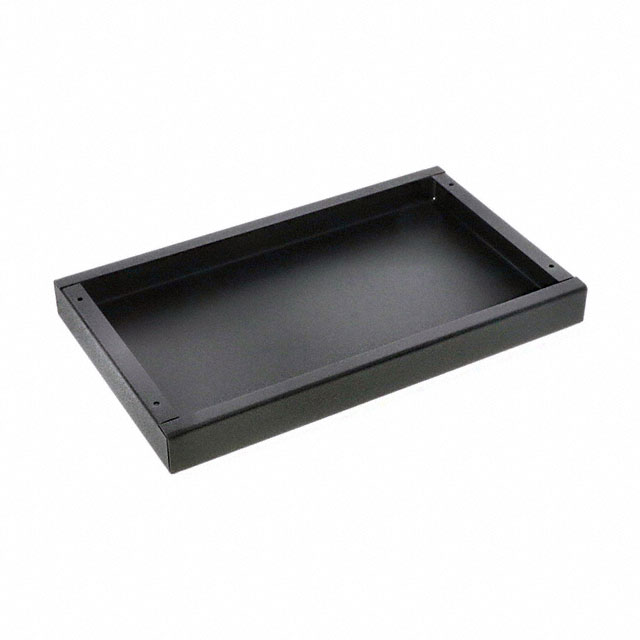

Hammond Manufacturing 1441-15BK3			Metal Steel	26.42 mm	1.04 "	20 Gauge			Black	Open End(s)	Hardware not Provided	Chassis	6 in	254 mm	10 in	152.4 mm	1.1 lbs	499 g	60 in²	387 cm²
Hammond Manufacturing 1441-6			Metal Steel	51.82 mm	2.04 in	20 Gauge			Gray	Open End(s)	Hardware not Provided	Chassis	4 "	101.6 mm	4 "	101.6 mm	0.55 lb	249.48 g	16 in²	103 cm²
Hammond Manufacturing 1441-38BK3			Metal Steel	77.22 mm	3.04 in				Black	Open End(s)	Hardware not Provided	Chassis	14 in	431.8 mm	17 "	355.6 mm	5.8 lbs	2.6 kg	238 in²	1535 cm²					18 Gauge
Hammond Manufacturing 1441-8BK3			Metal Steel	51.82 mm	2.04 in	20 Gauge			Black	Open End(s)	Hardware not Provided	Chassis	4 "	152.4 mm	6 "	101.6 mm	0.756 lb	342.92 g	24 in²	155 cm²
Hammond Manufacturing 1441-42BK3			Metal Steel		5 in				Black	Open End(s)	Hardware not Provided	Chassis	14 in	431.8 mm	17 "	355.6 mm	10 lbs	4.5 kg	238 in²	1535 cm²					18 Gauge	127 mm
Hammond Manufacturing 1441-42			Metal Steel		5 in				Gray	Open End(s)	Hardware not Provided	Chassis	14 in	431.8 mm	17 "	355.6 mm	10 lbs	4.5 kg	238 in²	1535 cm²					18 Gauge	127 mm
