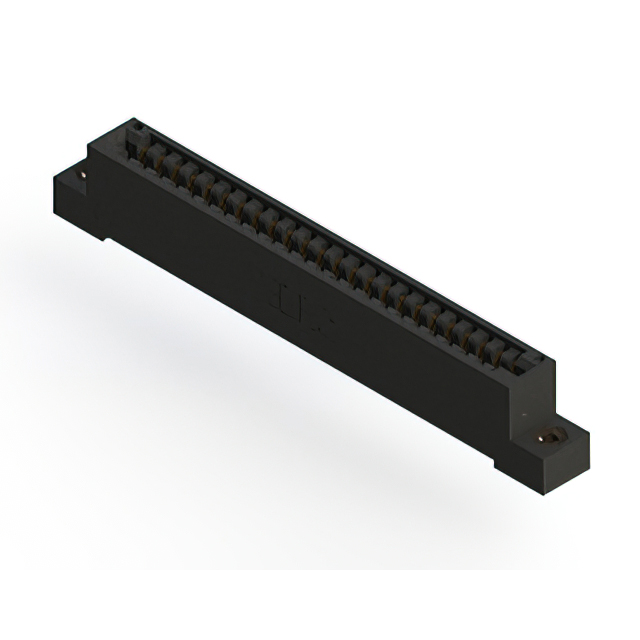

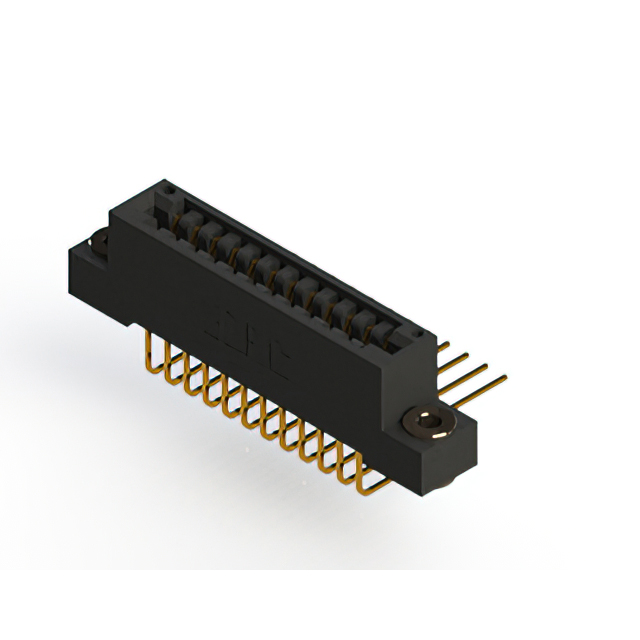

396-024 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 24POS 0.125
...
| Part | Number of Rows | Flange Feature | Mounting Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Card Type | Material - Insulation | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | |||||
 EDAC Inc. | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | |||||
 EDAC Inc. | 2 | Floating Bobbin Flush Mount | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | 0.116 in | 2.95 mm | |||
 EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
 EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
 EDAC Inc. | 1 | M3 Threaded Insert Top Mount Opening | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | |||||
 EDAC Inc. | 1 | Flush Mount Side Opening Unthreaded | Through Hole Right Angle | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 2 | Through Hole | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | 2 | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Copper Alloy | -40 °C | 105 ░C | 2 | Black | 0.125 in | 3.18 mm | 12 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Dual Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Dual | 24 | Card Extender | ||||
 EDAC Inc. | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Copper Alloy | -40 °C | 105 ░C | 1 | Black | 0.125 in | 3.18 mm | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Non Specified - Single Edge | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Single | 24 |
