1553 Series

Catalog

BOX ABS BLACK 6.5"L X 3.15"W

Part	Features	Area (L x W) [custom]	Area (L x W) [custom]	Color	Thickness	Thickness	Material	Container Type	Height	Height	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Proto Board Type	Plating	Circuit Pattern	Hole Diameter [diameter]	Hole Diameter [diameter]	Pitch	Pitch

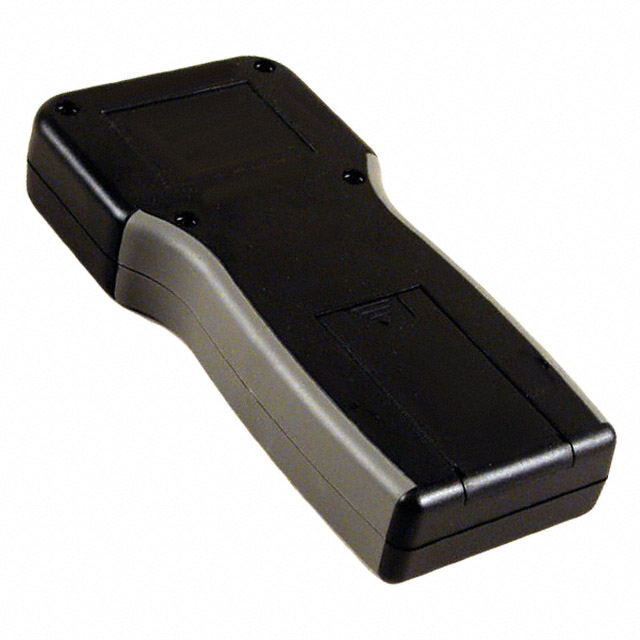

Hammond Manufacturing 1553TTBKBAT	9V and AA Battery Compartment Flame Retardant PCB Supports	20.4 in²	132 cm²	Black	2.29 mm	0.09 in	ABS	Box	27.94 mm	1.1 in	80 mm	165 mm	6.496 "	3.15 in	UL94 V-0

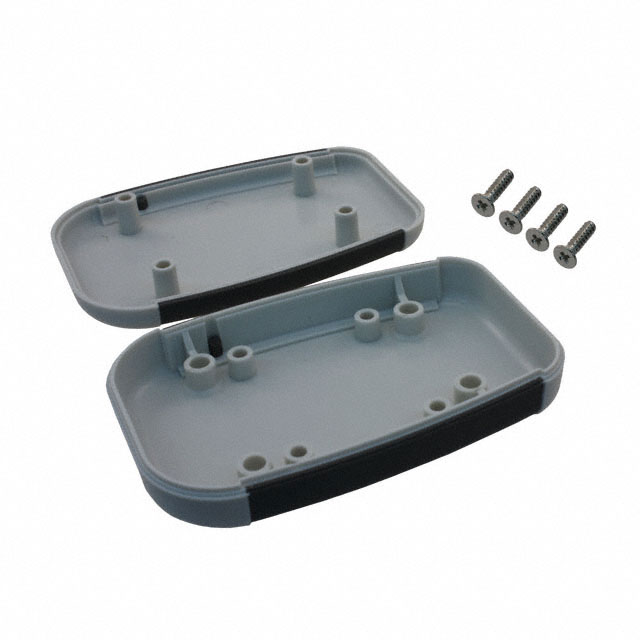

Hammond Manufacturing 1553AAGY	PCB Supports			Gray	2.01 mm	0.079 in	ABS	Box	16.99 mm		50.08 mm	75 mm	2.953 "	1.972 in	UL94 HB	Hand Held Split Sides	5.81 in²	37.5 cm²	0.669 in

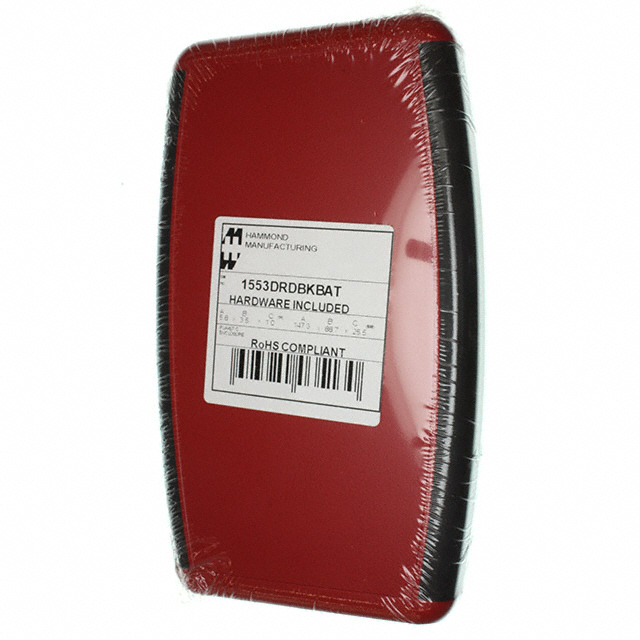

Hammond Manufacturing 1553DRDBKBAT	9V and AA Battery Compartment PCB Supports			Red	2.74 mm	0.108 in	ABS	Box	25 mm	0.984 in	89 mm	147.24 mm	5.797 in	3.504 "	UL94 HB	Hand Held Split Sides	20.3 in²	131 cm²

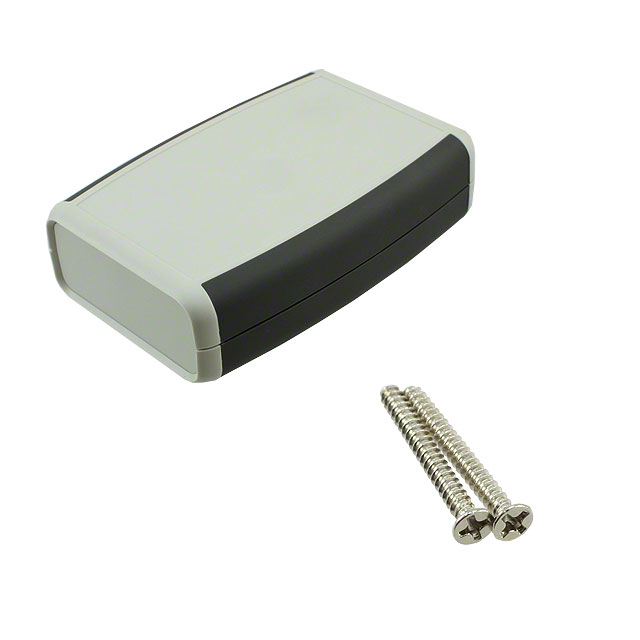

Hammond Manufacturing 1553CGY	PCB Supports			Gray	2.49 mm	0.098 in	ABS	Box			78.97 mm	117.22 mm	4.615 in	3.109 in	UL94 HB	Hand Held Split Sides			1.26 in	32 mm

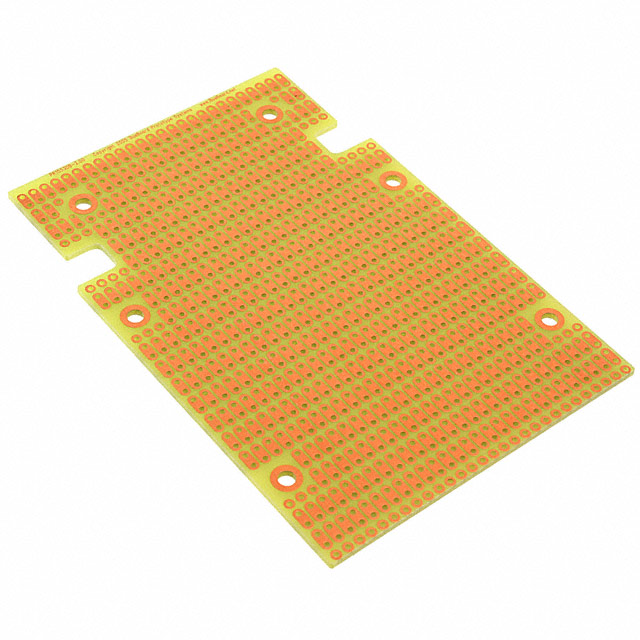

Hammond Manufacturing 1553DBPCB							Acrylonitrile Butadiene Styrene (ABS)				72.4 mm	106.2 mm	4.18 "	2.85 in							Breadboard Prepunched Insulating	Non-Plated Through Hole (NPTH)	2 Hole Pad (Single Side)	1.07 mm	0.042 "	0.1 "	2.54 mm
Hammond Manufacturing 1553BYLBK	PCB Supports			Yellow	2.74 mm	0.108 in	ABS	Box	24 mm	0.945 in	78.97 mm	117.22 mm	4.615 in	3.109 in	UL94 HB	Hand Held Split Sides
Hammond Manufacturing 1553DGY	PCB Supports			Gray	2.74 mm	0.108 in	ABS	Box	25 mm	0.984 in	89 mm	147.24 mm	5.797 in	3.504 "	UL94 HB	Hand Held Split Sides	20.3 in²	131 cm²
Hammond Manufacturing 1553DRDBK	PCB Supports			Red	2.74 mm	0.108 in	ABS	Box	25 mm	0.984 in	89 mm	147.24 mm	5.797 in	3.504 "	UL94 HB	Hand Held Split Sides	20.3 in²	131 cm²
Hammond Manufacturing 1553DBK	PCB Supports			Black	2.74 mm	0.108 in	ABS	Box	25 mm	0.984 in	89 mm	147.24 mm	5.797 in	3.504 "	UL94 HB	Hand Held Split Sides	20.3 in²	131 cm²

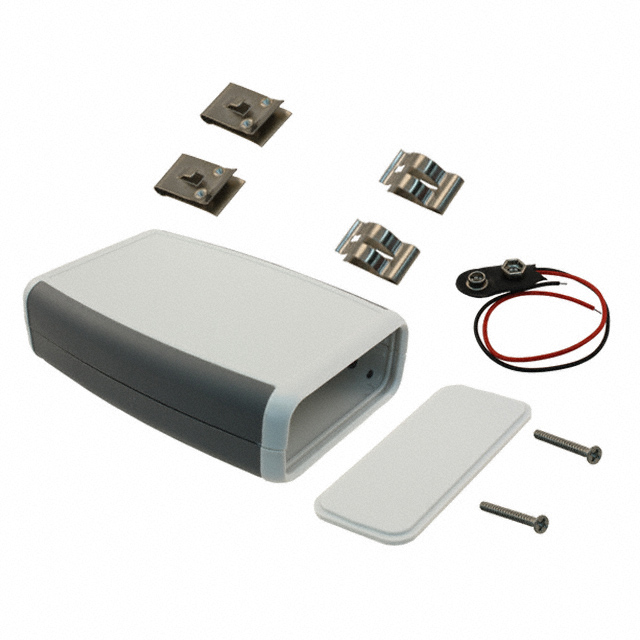

Hammond Manufacturing 1553CGYBAT	9V and AA Battery Compartment PCB Supports			Gray	2.49 mm	0.098 in	ABS	Box			78.97 mm	117.22 mm	4.615 in	3.109 in	UL94 HB	Hand Held Split Sides			1.26 in	32 mm
