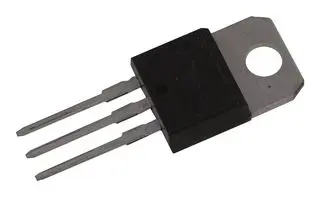

TN1610H-6I Series

16 A 600 V High Temperature SCR in insulated TO-220I

Catalog

16 A 600 V High Temperature SCR in insulated TO-220I

Part	SCR Type	Current - On State (It (AV)) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - On State (Vtm) (Max)	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max)	Current - Off State (Max) [Max] [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]
STMicroelectronics TN1610H-6I	Standard Recovery	10 A	TO-220-3	140 A 153 A	16 A	30 mA	1.6 V	TO-220AB Insulated	1.3 V	5 µA	Through Hole	-40 °C	150 °C	600 V	10 mA

Catalog

16 A 600 V High Temperature SCR in insulated TO-220I

Description

Thanks to its operating junction temperature up to 150°C, the TN1610H-6I offers high thermal performance operation up to 16 A rms. Its trade-off noise immunity (dV/dt = 1000 V/μs) versus its gate triggering current (IGT= 10 mA) and its turn-on current rise (dI/dt = 100 A/μs) allows to design robust and compact control circuit for voltage regulator in motorbikes and industrial drives, overvoltage crowbar protection, motor control circuits in power tools and kitchen appliances and inrush current limiting circuits.
