SWI15 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Weight	Weight	Standard Number	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Type	Power (Watts)	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Approval Agency	Applications	No Load Power Consumption	Polarization	Form	Current - Output (Max) [Max]

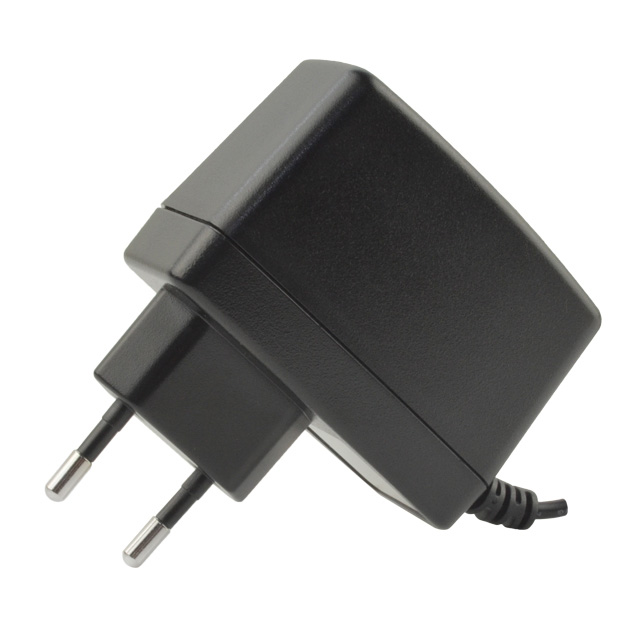

CUI Inc. SWI15-12-E-P5	99.79 g	0.22 lb	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	12 V	264 VAC	90 VAC	CEE 7/16	2.8 in	2.62 "	71 mm	66.6 mm	1.91 in	48.4 mm	Fixed Blade	12 W	Europe	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI	EN FCC SIQ TUV	ITE (Commercial)	75 mW	Positive Center	Wall Mount	1 A
CUI Inc. SWI15-15-E-P5	99.79 g	0.22 lb	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	15 V	264 VAC	90 VAC	CEE 7/16	2.8 in	2.62 "	71 mm	66.6 mm	1.91 in	48.4 mm	Fixed Blade	15 W	Europe	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI	EN FCC SIQ TUV	ITE (Commercial)	75 mW	Positive Center	Wall Mount	1 A

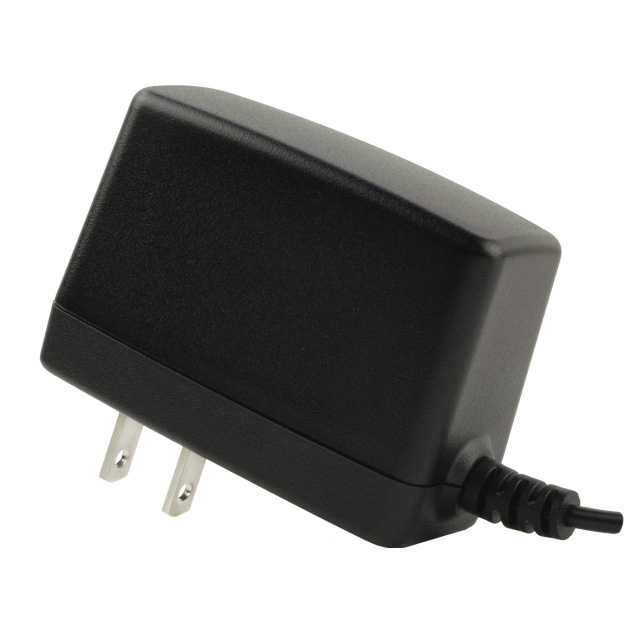

CUI Inc. SWI15-5-N-P5	99.79 g	0.22 lb	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	5 V	264 VAC	90 VAC	NEMA 1-15P	2.8 in	1.3 in	71 mm	33 mm	1.91 in	48.4 mm	Fixed Blade	10 W	North America	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI		ITE (Commercial)	75 mW	Positive Center	Wall Mount	2 A
CUI Inc. SWI15-12-N-P5	99.79 g	0.22 lb	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	12 V	264 VAC	90 VAC	NEMA 1-15P	2.8 in	1.3 in	71 mm	33 mm	1.91 in	48.4 mm	Fixed Blade	12 W	North America	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI		ITE (Commercial)	75 mW	Positive Center	Wall Mount	1 A
CUI Inc. SWI15-9-N-P5			55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	9 V	264 VAC	90 VAC	NEMA 1-15P	2.8 in	1.3 in	71 mm	33 mm	1.91 in	48.4 mm	Fixed Blade	13 W	North America	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI		ITE (Commercial)	75 mW	Positive Center	Wall Mount	1.4 A
CUI Inc. SWI15-24-N-P5	99.79 g	0.22 lb	55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	24 V	264 VAC	90 VAC	NEMA 1-15P	2.8 in	1.3 in	71 mm	33 mm	1.91 in	48.4 mm	Fixed Blade	15 W	North America	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI		ITE (Commercial)	75 mW	Positive Center	Wall Mount	630 mA
CUI Inc. SWI15-9-E-P5			55011 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	9 V	264 VAC	90 VAC	CEE 7/16	2.8 in	1.3 in	71 mm	33 mm	1.91 in	48.4 mm	Fixed Blade	13 W	Europe	-20 ░C	40 °C	70.9 "	1.8 m	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	CoC Tier 2 Level VI	EN FCC SIQ TUV	ITE (Commercial)	75 mW	Positive Center	Wall Mount	1.4 A
