BXRE-50 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

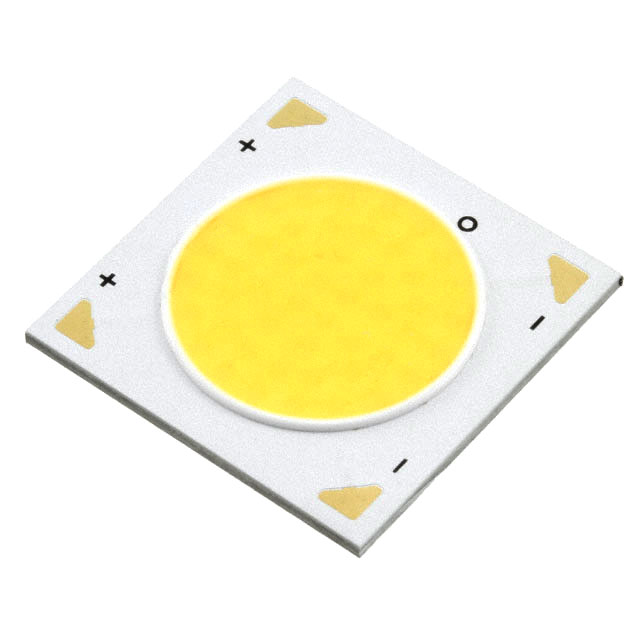

LED COB V22 CL WHT SQUARE 5000K

...

Part	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Current - Test	Lens Type	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Viewing Angle	Configuration	Type	CCT (K)	CCT (K)	Height [z]	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Features
BRIDGELUX BXRE-50G6501-B-73	131 lm/W 134 lm/W	7755 lm 7952 lm	1.17 A	Flat	90	22.6 mm	120 °	Square	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1.7 mm	85 °C	28 mm	28 mm	50.7 V	Cool White	2.34 A
BRIDGELUX BXRE-50E1001-B-73	147 lm/W	1355 lm	270 mA	Flat	80	10.2 mm	120 °	Square	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1.7 mm	85 °C	13.5 mm	13.5 mm	33.8 V	Cool White	540 mA
BRIDGELUX BXRE-50C6501-B-73	164 lm/W 168 lm/W	9694 lm 9983 lm	1.17 A	Flat	70	22.6 mm	120 °	Square	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1.7 mm	85 °C	28 mm	28 mm	50.7 V	Cool White	2.34 A
BRIDGELUX BXRE-50C0801-D-73	159 lm/W	932 lm	350 mA	Flat	70	8.1 mm	120 °	Square	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1.7 mm	85 °C	12.5 mm	12.5 mm	16.7 V	Cool White	700 mA
BRIDGELUX BXRE-50C1001-C-74	157 lm/W		360 mA	Flat	70	10.2 mm		Square	Chip On Board (COB)	5000 K	4-Step MacAdam Ellipse	1.7 mm	85 °C	13.5 mm	13.5 mm	34 V	Cool White	720 mA
BRIDGELUX BXRE-50G08F0-E-83	170 lm/W	857 lm		Flat	90	8.5 mm	120 °	Square	Chip On Board (COB)	5000 K		1.65 mm	85 °C	12.5 mm	12.5 mm	33.7 V	Cool White	150 mA	Dimming
BRIDGELUX BXRE-50C6500-H-24	134 lm/W	6525 lm		Flat	70	22 mm	120 °	Square	Chip On Board (COB)	5000 K	4-Step MacAdam Ellipse	1.7 mm	85 °C	28 mm	28 mm	34.7 V	Cool White	2.8 A
BRIDGELUX BXRE-50G3001-D-24	115 lm/W	2898 lm		Flat	90	15.2 mm	120 °	Square	Chip On Board (COB)	5000 K	4-Step MacAdam Ellipse	1.7 mm	25 °C	21 mm	21 mm	36 V	Cool White	1.4 A
BRIDGELUX BXRE-50C6501-D-73	165 lm/W 172 lm/W	7706 lm		Flat	70	22.6 mm	120 °	Square	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1.7 mm	85 °C	28 mm	28 mm	33.4 V	Cool White	2.8 A
BRIDGELUX BXRE-50E0800-A-24		751 lm	175 mA	Flat	80	8.1 mm	120 °	Square	Chip On Board (COB)	5000 K	4-Step MacAdam Ellipse	1.7 mm	85 °C	12.5 mm	12.5 mm	34.6 V	Cool White	350 mA
