RQ7L055BG Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

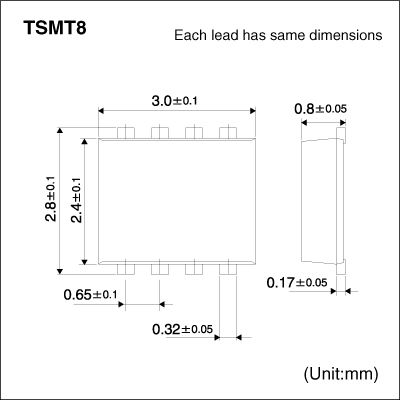

MOSFET, N-CH, 60V, 5.5A, TSMT8 ROHS COMPLIANT: YES
| Part | Supplier Device Package | Technology | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Drain to Source Voltage (Vdss) | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs [Max] | Operating Temperature | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | TSMT8 | MOSFET (Metal Oxide) | 5.5 A | 2.5 V | N-Channel | 4.5 V 10 V | 20 V | 60 V | Surface Mount | 460 pF | 1.1 W | 29 mOhm | 150 °C | 7.6 nC |
