629-7W2 Series
Manufacturer: EDAC Inc.
Beta
⌘K

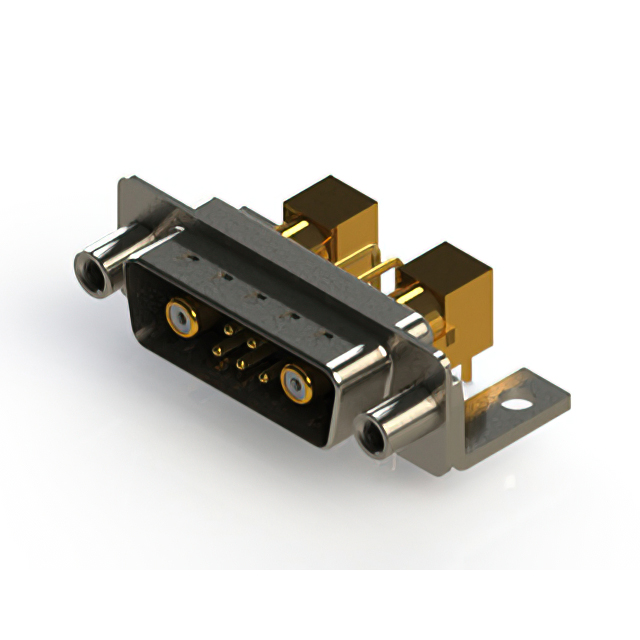

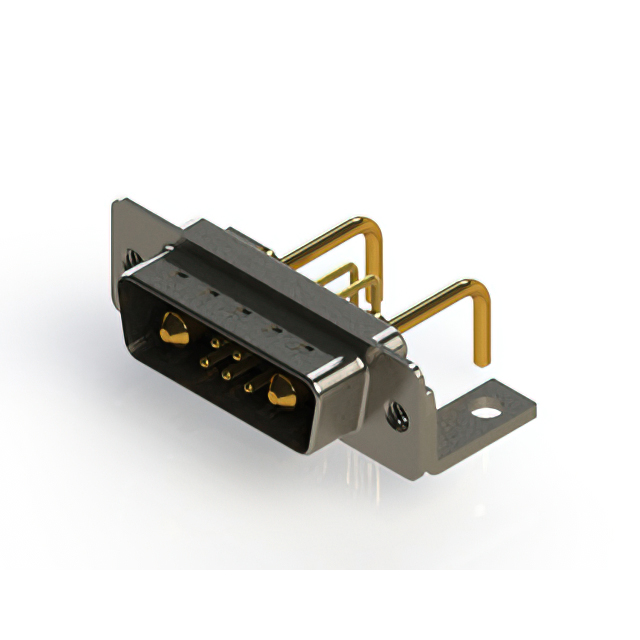

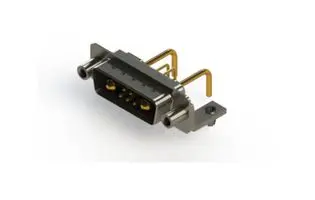

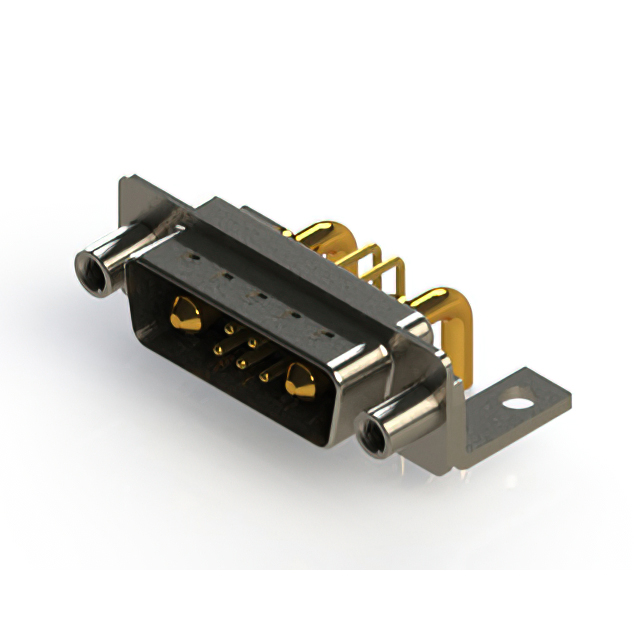

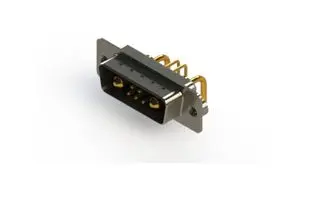

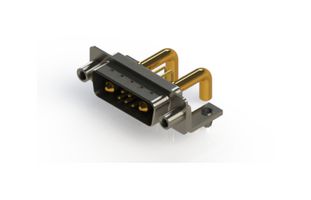

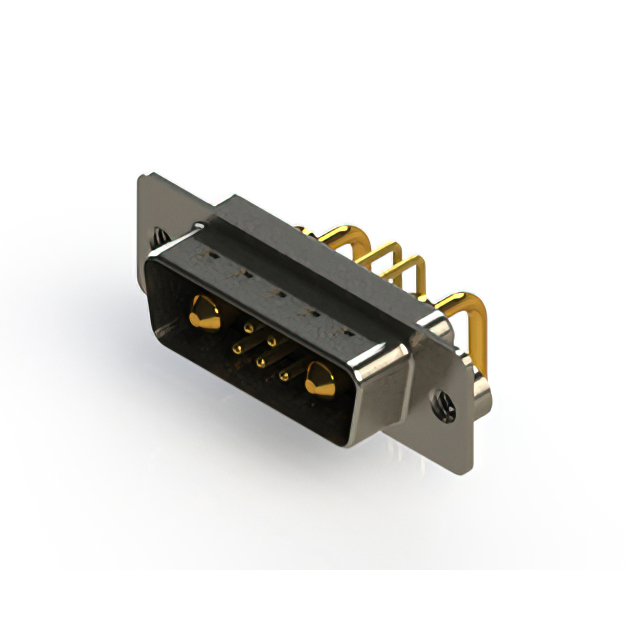

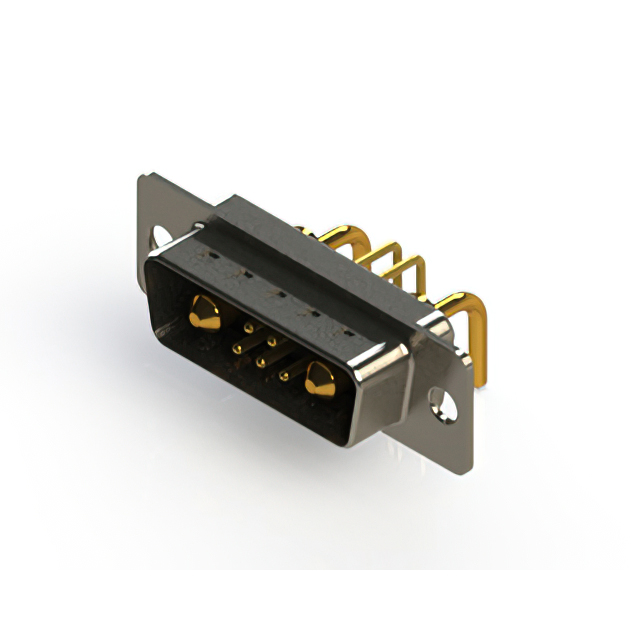

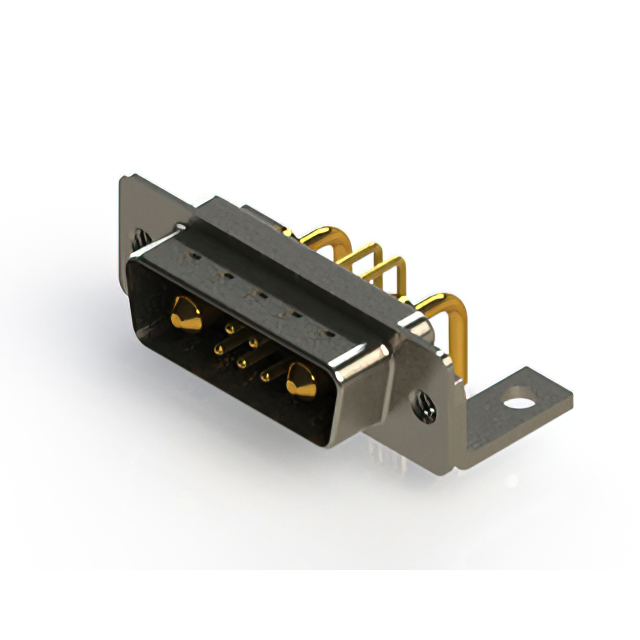

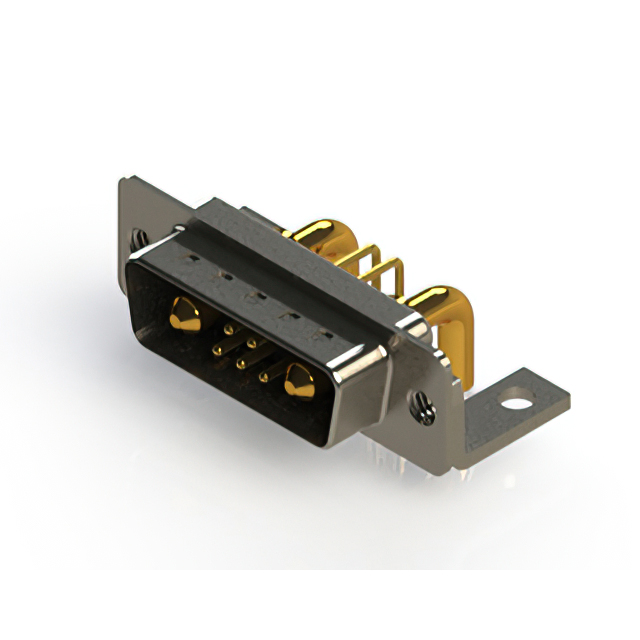

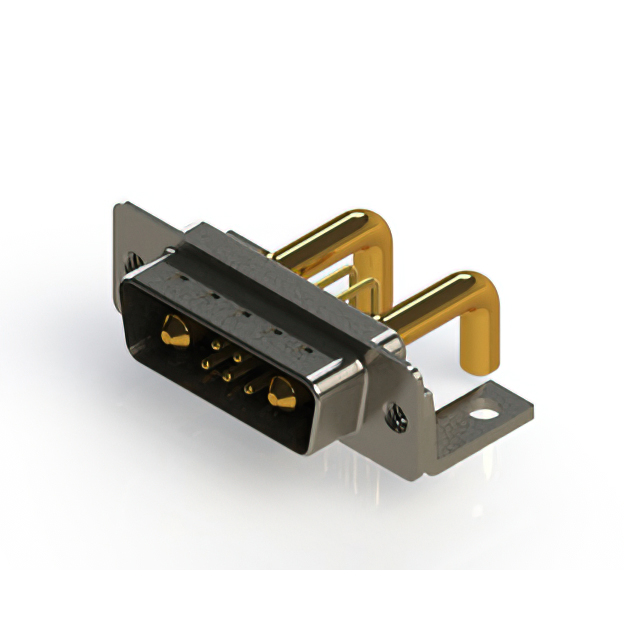

CONN D-SUB PLUG 7POS R/A SLDR
| Part | Dielectric Material | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Flange Feature | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish | Backset Spacing | Backset Spacing | Number of Rows [custom] | Material Flammability Rating | Termination | Shell Material, Finish | Current Rating (Amps) | Features | Mounting Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Flange Feature | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell (Unthreaded) | Plug Male Pins | 7 | 5 | 2 | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | Nickel Plated Steel | 10A 5A | Grounding Indents Shielded | Right Angle Through Hole | Combo D-Sub | ||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell (M3) | Plug Male Pins | 7 | 5 | 2 | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 30 Áin | 0.76 Ám | 5 A 30 A | ||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell | Plug Male Pins | 7 | 5 | 2 | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | 10A 5A | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 30 Áin | 0.76 Ám | 4-40 | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | M3 | Plug Male Pins | 7 | 5 | 2 | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | 20A 5A | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | |||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | M3 | Plug Male Pins | 7 | 5 | 2 | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 30 Áin | 0.76 Ám | 5 A 40 A | |||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Coax Signal | M3 | Plug Male Pins | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | Nickel Plated Steel | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 5 | 2 | ||||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell | Plug Male Pins | 7 | 5 | 2 | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | 10A 5A | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 4-40 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | M3 | Plug Male Pins | 7 | 5 | 2 | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | 10A 5A | Board Lock Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | |||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell | Plug Male Pins | 7 | 5 | 2 | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | Nickel Plated Steel | Grounding Indents Mounting Brackets | Right Angle Through Hole | Combo D-Sub | 30 Áin | 0.76 Ám | 5 A 40 A | 4-40 | ||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | A DA | 2 | 7W2 | Signal and Power | Housing/Shell | Plug Male Pins | 7 | 5 | 2 | Flash | Gold | 9.4 mm | 0.37 in | 2 | UL94 V-0 | Solder | 10A 5A | Right Angle Through Hole | Combo D-Sub | 4-40 |
