AD7327 Series

Catalog

500 KSPS, 8-CHANNEL, SOFTWARE SELECTABLE TRUE BIPOLAR INPUT, 12-BIT PLUS SIGN A/D CONVERTER

Part	Architecture	Number of A/D Converters	Sampling Rate (Per Second)	Number of Bits	Ratio - S/H:ADC	Data Interface	Reference Type	Package / Case [y]	Package / Case	Package / Case [x]	Configuration	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of Inputs	Supplier Device Package	Input Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Input Range	Power (Typ) @ Conditions	Supplied Contents	Utilized IC / Part
Analog Devices AD7327TRUZ-EP-RL7

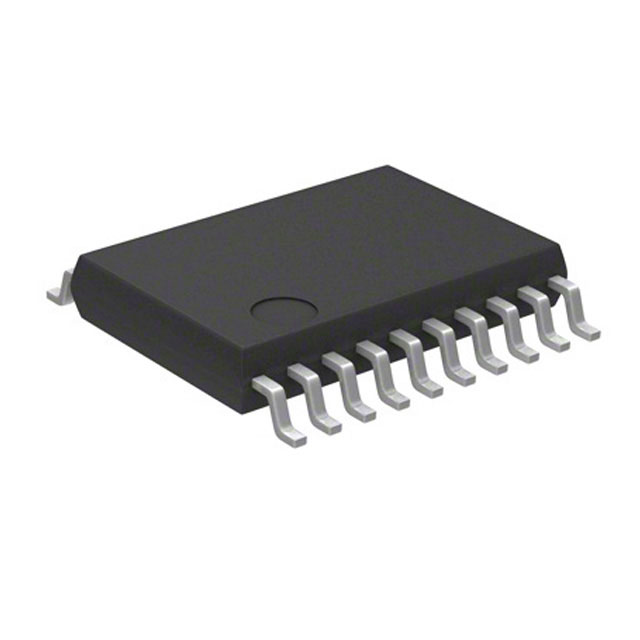

Analog Devices AD7327TRUZ-EP	SAR	1	500k	12 bits	1:1	DSP MICROWIRE™ QSPI™ SPI™	External Internal	4.4 mm	20-TSSOP	0.173 in	MUX-S/H-ADC	5.25 V	2.7 V	8	20-TSSOP	Differential Pseudo-Differential Single Ended	16.5 V	-12 V	Surface Mount	-55 °C	125 °C
Analog Devices AD7327TRU-EP	SAR	1	500k	12 bits	1:1	DSP SPI	External Internal	4.4 mm	20-TSSOP	0.173 in	MUX-S/H-ADC	5.25 V	2.7 V	2 3 4	20-TSSOP	Differential Pseudo-Differential Single Ended	16.5 V	-12 V	Surface Mount	-55 °C	125 °C	Temperature Sensor True Bipolar

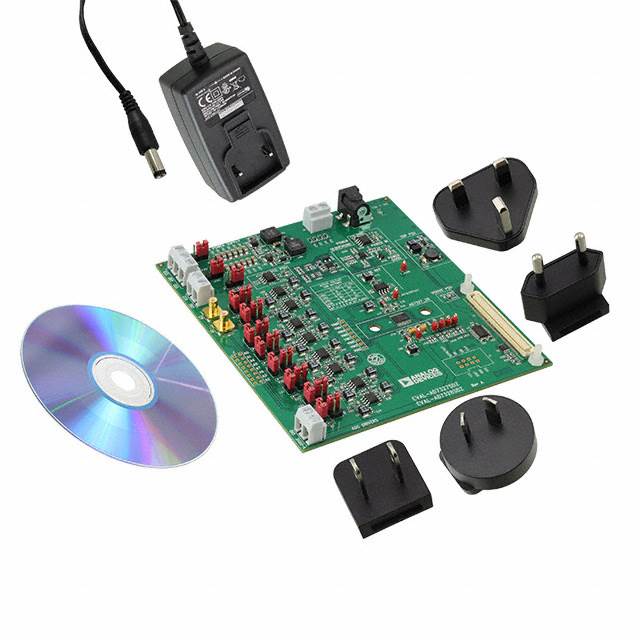

Analog Devices EVAL-AD7327SDZ		1	500k	12 bits		Serial																	10 V	17 mW	Board(s)	AD7327
Analog Devices AD7327TRU-EP-RL7	SAR	1	500k	12 bits	1:1	DSP SPI	External Internal	4.4 mm	20-TSSOP	0.173 in	MUX-S/H-ADC	5.25 V	2.7 V	2 3 4	20-TSSOP	Differential Pseudo-Differential Single Ended	16.5 V	-12 V	Surface Mount	-55 °C	125 °C	Temperature Sensor True Bipolar
