12038MA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

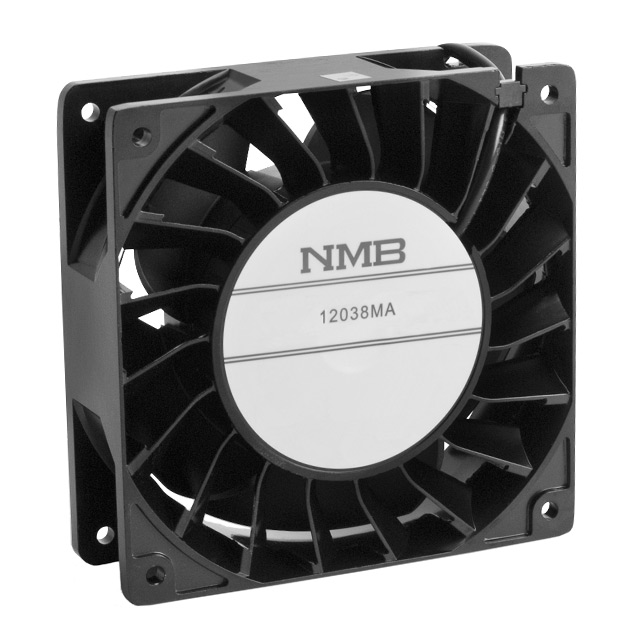

FAN AXIAL 120X38MM 48VDC WIRE
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Lifetime @ Temp. | Air Flow | Air Flow | Material - Frame | Features | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Bearing Type | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Noise | Static Pressure | Static Pressure | RPM | Width [y] | Termination | Fan Type | Material - Blade [custom] | Approval Agency | Size / Dimension | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.82 A | 38 VDC | 60 V | Plastic | 40000 Hrs | 5.19 m³/min | 185.5 CFM | Plastic | Auto Restart | 70 °C | -10 °C | 39.36 W | Ball | 48 VDC | 120 mm | 120 mm | 72 dB(A) | 740 Pa | 2.97 in H2O | 9000 RPM | 38 mm | 2 Wire Leads | Tubeaxial | ||||
NMB TECHNOLOGIES | 30 VDC | 52.8 VDC | 100000 Hrs | Aluminum | 70 °C | -10 °C | 23.5 W | Ball | 48 VDC | 119 mm | 59.5 dB | 38.4 mm | 2 Wire Leads | Tubeaxial | Aluminum | CE CSA UL VDE | Square | 119 mm |
