AZ7555-1A Series
Manufacturer: American Zettler
Beta
⌘K

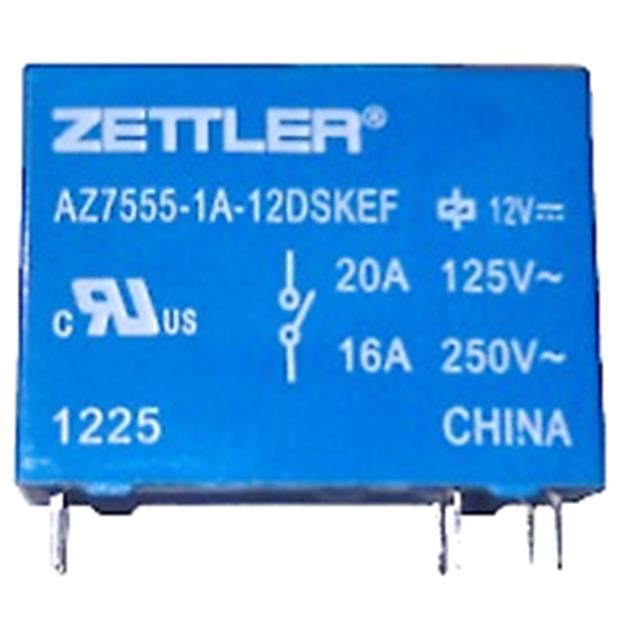

RELAY GEN PURPOSE SPST 20A 5V
| Part | Coil Resistance | Mounting Type | Coil Voltage | Seal Rating | Contact Rating (Current) | Must Operate Voltage | Coil Type | Contact Form | Switching Voltage [Max] | Approval Agency | Must Release Voltage | Load - Max Switching | Coil Insulation | Release Time | Coil Current | Termination Style | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 208 Ohms | Through Hole | 5 VDC | Sealed - Fully | 20 A | 3.75 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 0.5 VDC | 480 W 5000 VA | Class F | 8 ms | 24 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose |
American Zettler | 48.5 Ohms | Through Hole | 5 VDC | 20 A | 3.75 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 0.5 VDC | 480 W 5000 VA | 8 ms | 103.1 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose | ||
 American Zettler | 270 Ohms | Through Hole | 12 VDC | Sealed - Fully | 20 A | 9 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 1.2 VDC | 480 W 5000 VA | 8 ms | 44.4 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose | |
American Zettler | 4.4 kOhms | Through Hole | 48 VDC | Sealed - Fully | 20 A | 36 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 4.8 VDC | 480 W 5000 VA | 8 ms | 10.9 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose | |
American Zettler | 820 Ohms | Through Hole | 24 VDC | Sealed - Fully | 20 A | 16.8 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 2.4 VDC | 480 W 5000 VA | 8 ms | 29.3 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 15 ms | General Purpose | |
American Zettler | 6.67 kOhms | Through Hole | 60 VDC | Sealed - Fully | 20 A | 45 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 6 VDC | 480 W 5000 VA | Class F | 8 ms | 9 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose |
American Zettler | 4.8 kOhms | Through Hole | 24 VDC | Sealed - Fully | 20 A | 18 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 2.4 VDC | 480 W 5000 VA | 8 ms | 5 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose | |
American Zettler | 2.7 kOhms | Through Hole | 18 VDC | 20 A | 13.5 VDC | Non Latching | SPST-NO (1 Form A) | 30 VDC 277 VAC | CUR TUV UL | 1.8 VDC | 480 W 5000 VA | Class F | 8 ms | 6.7 mA | PC Pin | Silver Tin Oxide (AgSnO) | 85 °C | -40 C | 20 ms | General Purpose |
