SN74LVC1G86-Q1 Series

Automotive single 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gate

Catalog

Automotive single 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gate

Part	Logic Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Max Propagation Delay @ V, Max CL	Number of Inputs	Current - Output High, Low [y]	Current - Output High, Low [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Supplier Device Package	Mounting Type	Current - Quiescent (Max) [Max]	Qualification	Grade	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments SN74LVC1G86DCKR	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	0.8 V	0.7 V	SC-70-5	Surface Mount	10 µA
Texas Instruments SN74LVC1G86DBVRG4	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	SC-74A SOT-753	0.8 V	0.7 V	SOT-23-5	Surface Mount	10 µA
Texas Instruments SN74LVC1G86DBVT	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	SC-74A SOT-753	0.8 V	0.7 V	SOT-23-5	Surface Mount	10 µA
Texas Instruments SN74LVC1G86QDCKRQ1	XOR (Exclusive OR)	125 °C	-40 °C	0.1 V	3.8 V	5 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	0.55 V	0.1 V	SC-70-5	Surface Mount	15 µA	AEC-Q100	Automotive
Texas Instruments SN74LVC1G86YZAR	XOR (Exclusive OR)	85 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-XFBGA DSBGA	0.8 V	0.7 V	5-DSBGA	Surface Mount	10 µA			1.4	0.9
Texas Instruments SN74LVC1G86DCKT	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	0.8 V	0.7 V	SC-70-5	Surface Mount	10 µA

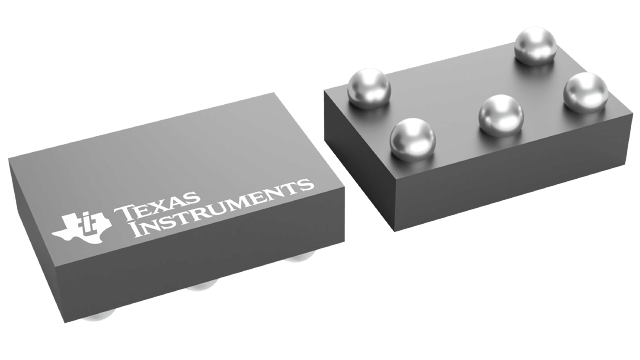

Texas Instruments SN74LVC1G86YZPR	XOR (Exclusive OR)	85 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-XFBGA DSBGA	0.8 V	0.7 V	5-DSBGA	Surface Mount	10 µA			1.4	0.9
Texas Instruments SN74LVC1G86DCKRG4	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	0.8 V	0.7 V	SC-70-5	Surface Mount	10 µA
Texas Instruments SN74LVC1G86QDCKTQ1	XOR (Exclusive OR)	125 °C	-40 °C	0.1 V	3.8 V	5 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	5-TSSOP SC-70-5 SOT-353	0.55 V	0.1 V	SC-70-5	Surface Mount	15 µA	AEC-Q100	Automotive
Texas Instruments SN74LVC1G86DBVR	XOR (Exclusive OR)	125 °C	-40 °C	1.7 V	2 V	4 ns	2	32 mA	32 mA	5.5 V	1.65 V	1	SC-74A SOT-753	0.8 V	0.7 V	SOT-23-5	Surface Mount	10 µA

Catalog

Automotive single 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gate

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:±4000-V Human-Body Model (HBM) ESD Classification Level 3A±1000-V Charged-Device Model (CDM) ESD Classification Level C5Supports 5-V VCCOperationInputs Accept Voltages to 5.5 VSupports Down Translation to VCCLow Power Consumption, 15-µA Maximum ICCMaximum tpdof 6 ns at 3.3 V and 50-pF load±24-mA Output Drive at 3.3 VIoffSupports Partial-Power-Down Mode, and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:±4000-V Human-Body Model (HBM) ESD Classification Level 3A±1000-V Charged-Device Model (CDM) ESD Classification Level C5Supports 5-V VCCOperationInputs Accept Voltages to 5.5 VSupports Down Translation to VCCLow Power Consumption, 15-µA Maximum ICCMaximum tpdof 6 ns at 3.3 V and 50-pF load±24-mA Output Drive at 3.3 VIoffSupports Partial-Power-Down Mode, and Back-Drive ProtectionLatch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Description

The SN74LVC1G86-Q1 is an automotive qualified device that performs the Boolean function Y =AB + ABin positive logic. This single 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCCoperation. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output. This device has low power consumption with maximum tpdof 6 ns at 3.3 V and 50-pF capacitive load. The max output drive is ±32-mA at 4.5 V and ±24-mA at 3.3 V. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current back flow through the device when it is powered down. The SN74LVC1G86-Q1 is an automotive qualified device that performs the Boolean function Y =AB + ABin positive logic. This single 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCCoperation. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output. This device has low power consumption with maximum tpdof 6 ns at 3.3 V and 50-pF capacitive load. The max output drive is ±32-mA at 4.5 V and ±24-mA at 3.3 V. This device is fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current back flow through the device when it is powered down.
