C4066 Series
Manufacturer: Prysmian Group
Beta
⌘K

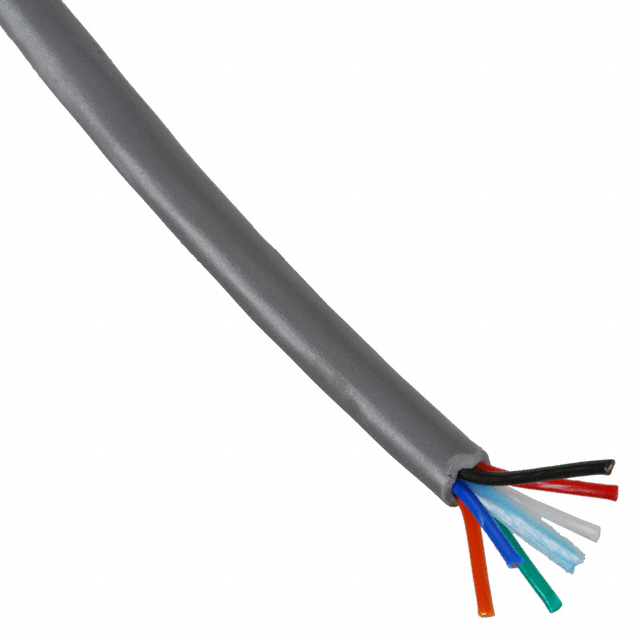

CABLE 6COND 22AWG GRAY
| Part | Conductor Insulation | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Usage | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 300 VDC | 0.813 mm | 0.032 in | 6 | Communication Control | 22 AWG | 5.54 mm | 0.218 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 80 °C | -20 ░C | Gray | Multi-Conductor |
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft | 300 VDC | 0.813 mm | 0.032 in | 6 | Communication Control | 22 AWG | 5.54 mm | 0.218 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 80 °C | -20 ░C | Gray | Multi-Conductor |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 300 VDC | 0.813 mm | 0.032 in | 6 | Communication Control | 22 AWG | 5.54 mm | 0.218 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 80 °C | -20 ░C | Gray | Multi-Conductor |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft | 300 VDC | 0.813 mm | 0.032 in | 6 | Communication Control | 22 AWG | 5.54 mm | 0.218 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 80 °C | -20 ░C | Gray | Multi-Conductor |
