GaAs MMIC I/Q Downconverter 37 - 44 GHz
Key Features
• Conversion Gain: 14 dB
• Image Rejection: 25 dBc
• Input Third-Order Intercept (IP3): -1 dBm
• LO Drive Range: -3 to +6 dBm
• Gain Flatness: ± 1.5 dB

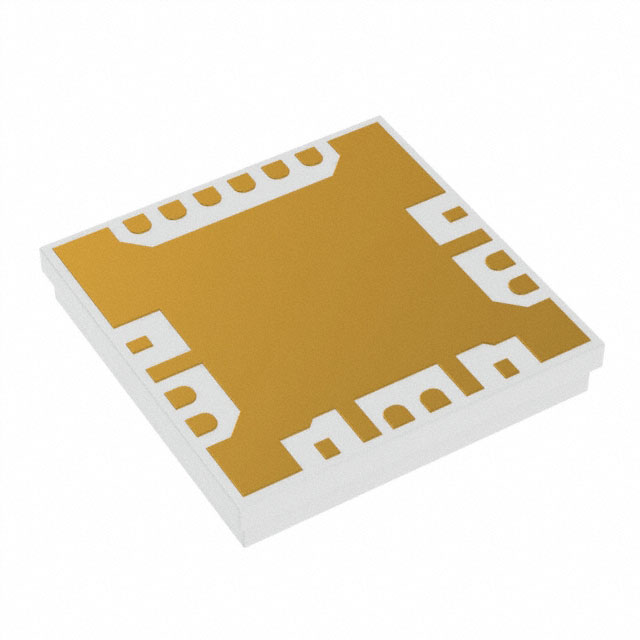

• 16 Terminal, 5 mm x 5 mm Ceramic Leadless Chip Carrier (LCC) Package
Description
AI
The HMC6789BLC5A is a compact GaAs MMIC I/Q downconverter in a 12-terminal, RoHS compliant, ceramic leadless chip carrier (LCC) package. This device provides a small signal conversion gain of 14 dB with 25 dBc of image rejection. The HMC6789BLC5A utilizes a low noise amplifier to drive the I/Q mixer where the LO is driven by a ×2 multiplier. IF1 and IF2 mixer inputs are provided and an external 90° hybrid is needed to select the required sideband. The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC6789BLC5A is a much smaller alternative to hybrid style single sideband downconverter assemblies and it eliminates the need for wire bonding by allowing the use of surface mount manufacturing techniques.ApplicationsPoint-to-Point and Point-to-Multi-Point RadiosMilitary Radar, EW & ELINTSatellite CommunicationsSensors
