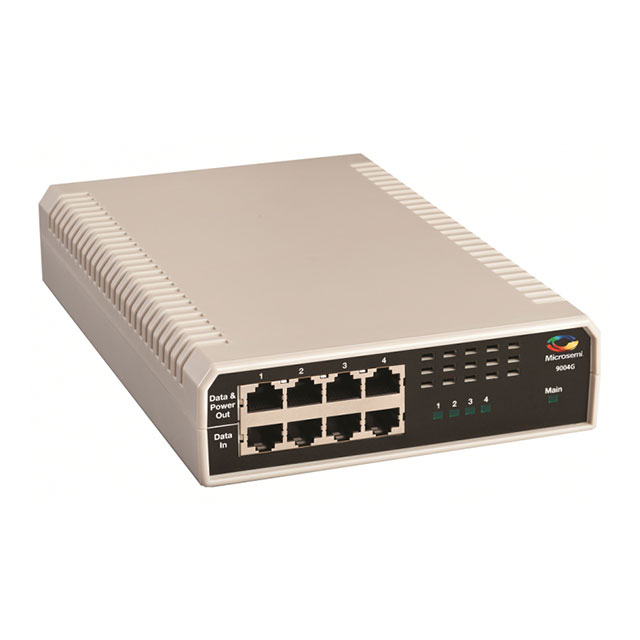

PD-9004G Series

4 ports, 30W, IEEE 802.3at-compliant indoor PoE midspan

Catalog

4 ports, 30W, IEEE 802.3at-compliant indoor PoE midspan

Part	Operating Temperature [Max]	Input Connector	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Output Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Data Rate	Current - Output	Number of Ports	Voltage - Output	Approval Agency	Power (Watts) - Per Port	Compliance
Microchip Technology PD-9004G/AC-US	40 °C	RJ45 (Data Power)	Midspan Injector	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	8.82 "	1.69 in	5.82 "	42.9 mm	224 mm	147.8 mm	10 Mbps 100 Mbps 1000 Mbps	545 mA	4	55 V	CE	30 W	IEEE802.3af
Microchip Technology PD-9004G/AC-AU	40 °C	RJ45 (Data Power)	Midspan Injector	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	8.82 "	1.69 in	5.82 "	42.9 mm	224 mm	147.8 mm	10 Mbps 100 Mbps 1000 Mbps	545 mA	4	55 V	CE	30 W	IEEE802.3af
Microchip Technology PD-9004G/AC-UK	40 °C	RJ45 (Data Power)	Midspan Injector	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	8.82 "	1.69 in	5.82 "	42.9 mm	224 mm	147.8 mm	10 Mbps 100 Mbps 1000 Mbps	545 mA	4	55 V	CE	30 W	IEEE802.3af
Microchip Technology PD-9004G/AC	40 °C	RJ45 (Data Power)	Midspan Injector	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	8.82 "	1.69 in	5.82 "	42.9 mm	224 mm	147.8 mm	10 Mbps 100 Mbps 1000 Mbps	545 mA	4	55 V	CE	30 W	IEEE802.3af
Microchip Technology PD-9004G/AC-JP	40 °C	RJ45 (Data Power)	Midspan Injector	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	8.82 "	1.69 in	5.82 "	42.9 mm	224 mm	147.8 mm	10 Mbps 100 Mbps 1000 Mbps	545 mA	4	55 V	CE	30 W	IEEE802.3af

Catalog

4 ports, 30W, IEEE 802.3at-compliant indoor PoE midspan

Key Features

- Number of ports: 4

- PoE output: 30W per port

- Data rates: 10/100/1000 Mbps

- Power input: AC

- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)

- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE

- Complies with the latest EMI and safety standards

- Compact design

Description

The four ports PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution to upgrade existing infrastructure with PoE, ensuring safe operation of any standard PoE data terminal. The PD-9004G is an ideal solution for powering and controlling up to 4 remote devices, including wireless LAN access points, security network cameras and IP phones without any changes to the installed network infrastructure.
