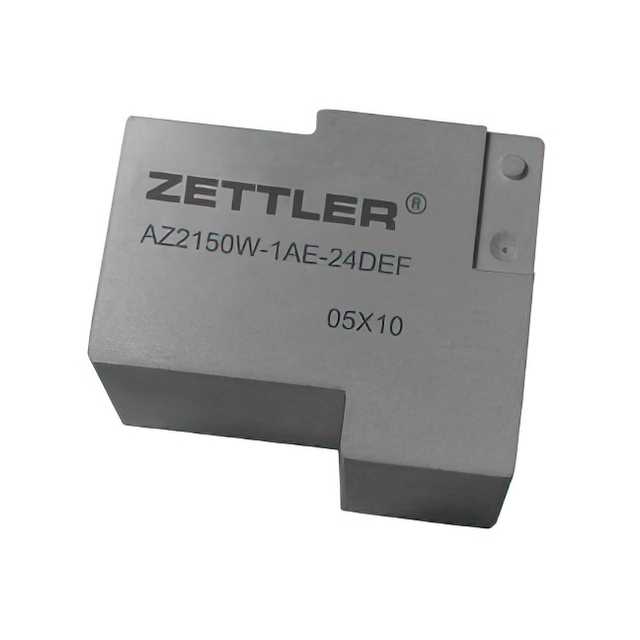

AZ2150W Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 6V
| Part | Coil Resistance | Must Release Voltage | Coil Type | Contact Rating (Current) | Load - Max Switching | Coil Insulation | Release Time | Contact Material | Contact Form | Coil Current | Operate Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Approval Agency | Mounting Type | Relay Type | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 32.5 Ohms | 0.6 VDC | Non Latching | 30 A | 900 W 8310 VA | Class F | 10 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 184.6 mA | 15 ms | PC Pin | 85 °C | -40 C | 4.5 VDC | cUR UL VDE | Through Hole | General Purpose | ||
American Zettler | 130 Ohms | 1.2 VDC | Non Latching | 30 A | 900 W 8310 VA | Class F | 10 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 92.3 mA | 15 ms | PC Pin | 85 °C | -40 C | 9 VDC | cUR UL VDE | Through Hole | General Purpose | 12 VDC | Sealed - Fully |
American Zettler | 2.08 kOhms | 4.8 VDC | Non Latching | 30 A | 900 W 8310 VA | Class F | 10 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 23.1 mA | 15 ms | PC Pin | 85 °C | -40 C | 36 VDC | cUR UL VDE | Through Hole | General Purpose | 48 VDC | Sealed - Fully |
American Zettler | 520 Ohms | 2.4 VDC | Non Latching | 30 A | 900 W 8310 VA | Class F | 10 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 46.2 mA | 15 ms | PC Pin | 85 °C | -40 C | 18 VDC | cUR UL VDE | Through Hole | General Purpose | 24 VDC | Sealed - Fully |
American Zettler | 22.5 Ohms | 0.5 VDC | Non Latching | 30 A | 900 W 8310 VA | Class F | 10 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 222.2 mA | 15 ms | PC Pin | 85 °C | -40 C | 3.75 VDC | cUR UL VDE | Through Hole | General Purpose | 5 VDC | Sealed - Fully |
