FH43B Series

Catalog

CONN FPC BOTTOM 51POS 0.2MM R/A

Part	Actuator Color	Housing Color	Current Rating (Amps)	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Pitch	Pitch	Actuator Material	Material Flammability Rating	Housing Material	Number of Positions	Cable End Type	Contact Material	Termination	Locking Feature	Mounting Type	Connector/Contact Type	FFC, FCB Thickness [custom]	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]
Hirose Electric Co Ltd FH43B-51S-0.2SHW(99)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	51	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold
Hirose Electric Co Ltd FH43B-41S-0.2SHW(10)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	41	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold

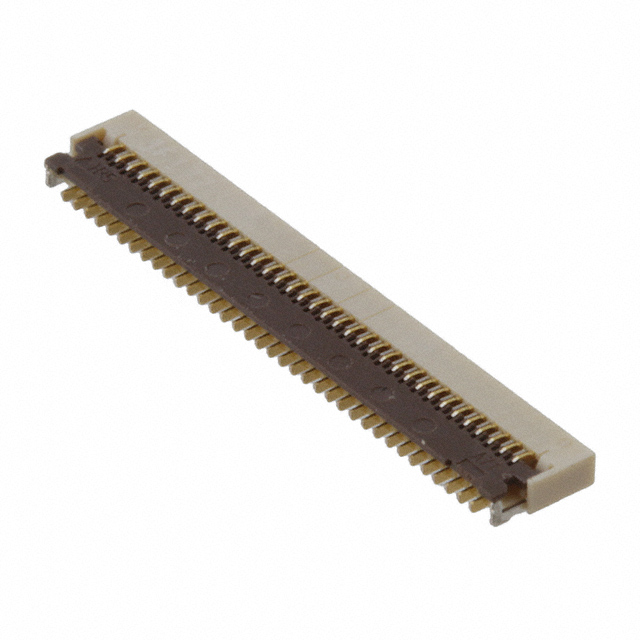

Hirose Electric Co Ltd FH43BW-71S-0.2SHW(99)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	71	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold

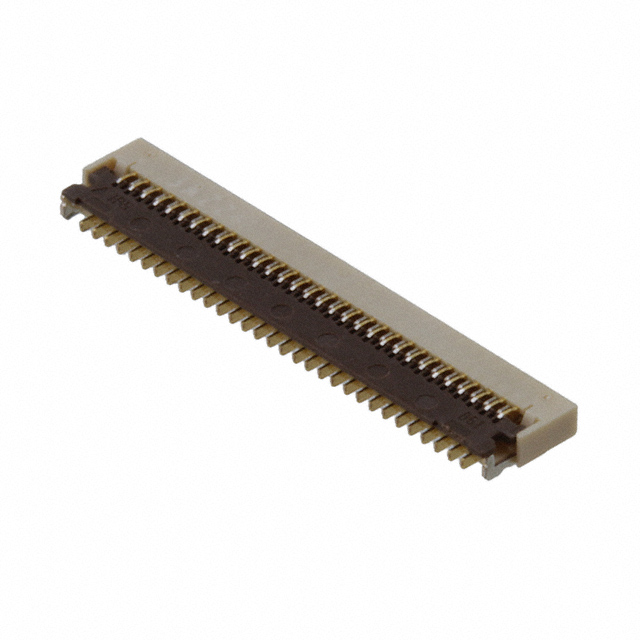

Hirose Electric Co Ltd FH43B-61S-0.2SHW(99)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	61	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold

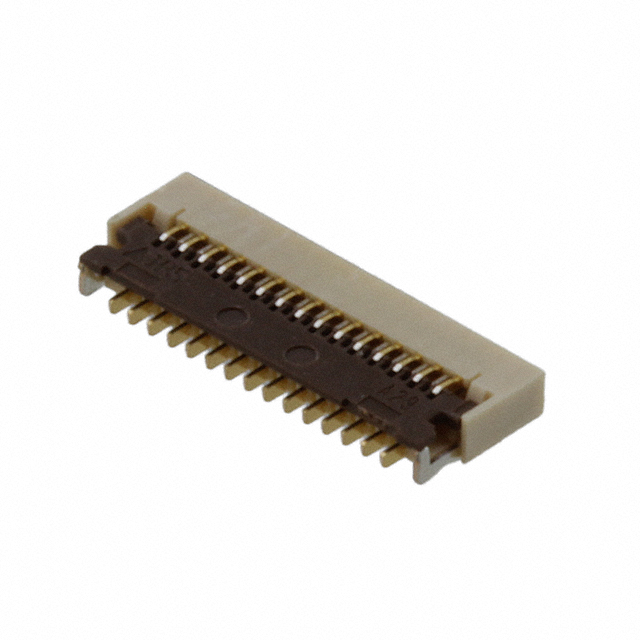

Hirose Electric Co Ltd FH43B-29S-0.2SHW(10)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	29	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold
Hirose Electric Co Ltd FH43BW-71S-0.2SHW(10)					-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Halogen Free Nylon Polyamide (PA)	UL94 V-0	Liquid Crystal Polymer (LCP) Halogen Free	71	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold

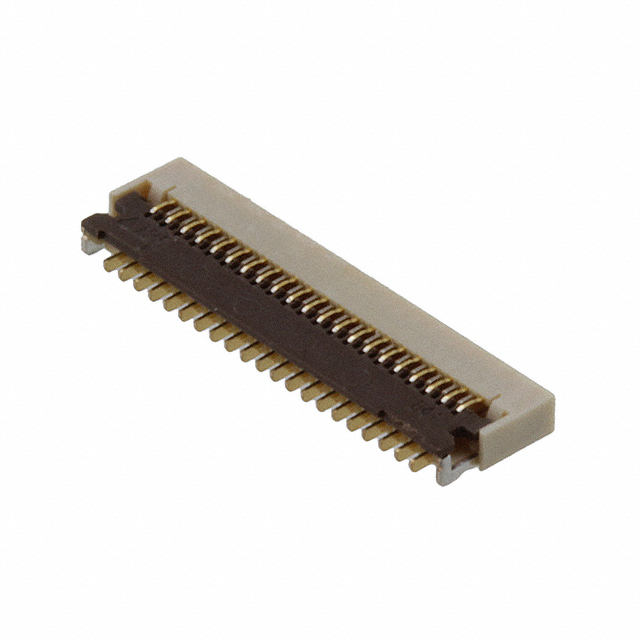

Hirose Electric Co Ltd FH43B-41S-0.2SHW(99)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	41	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold
Hirose Electric Co Ltd FH43BW-31S-0.2SHW(10)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Halogen Free Nylon Polyamide (PA)	UL94 V-0	Liquid Crystal Polymer (LCP) Halogen Free		Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold	1.97 Áin	0.05 Ám	31

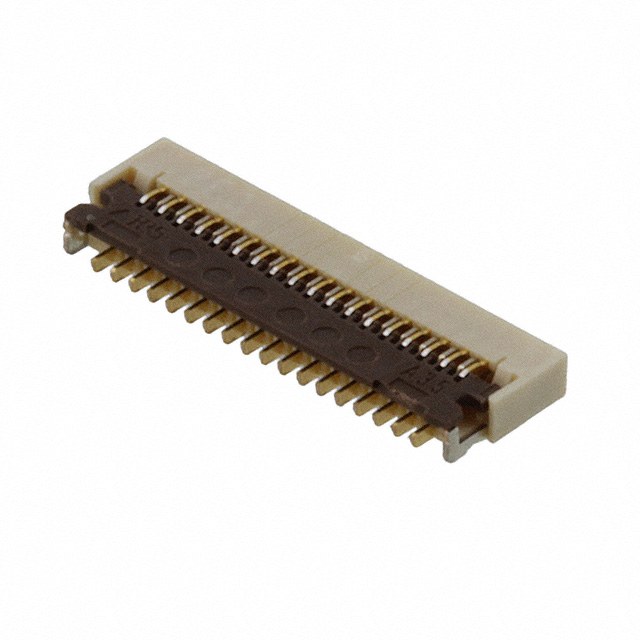

Hirose Electric Co Ltd FH43BW-35S-0.2SHW(10)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Halogen Free Nylon Polyamide (PA)	UL94 V-0	Liquid Crystal Polymer (LCP) Halogen Free	35	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold	1.97 Áin	0.05 Ám
Hirose Electric Co Ltd FH43B-35S-0.2SHW(99)	Black	Beige	0.2 A	10	-55 C	85 °C	30 VDC	0.2 mm	0.008 in	Polyamide (PA) Nylon	UL94 V-0	Liquid Crystal Polymer (LCP)	35	Tabbed	Phosphor Bronze	Solder	Flip Lock	Right Angle Surface Mount	Contacts Bottom	0.2 mm	FPC	0.88 mm	0.035 in	Gold
