ADGM1004 Series

0 Hz/DC to 13 GHz, 2.5 kV HBM ESD, SP4T, MEMS Switch with Integrated Driver

Catalog

0 Hz/DC to 13 GHz, 2.5 kV HBM ESD, SP4T, MEMS Switch with Integrated Driver

Part	For Use With/Related Products	Supplied Contents	Frequency [Min]	Frequency [Max]	Type	Impedance	Supplier Device Package	Mounting Type	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Isolation	Package / Case	IIP3	Voltage - Supply	Frequency Range [Min]	Frequency Range [Max]	Test Frequency

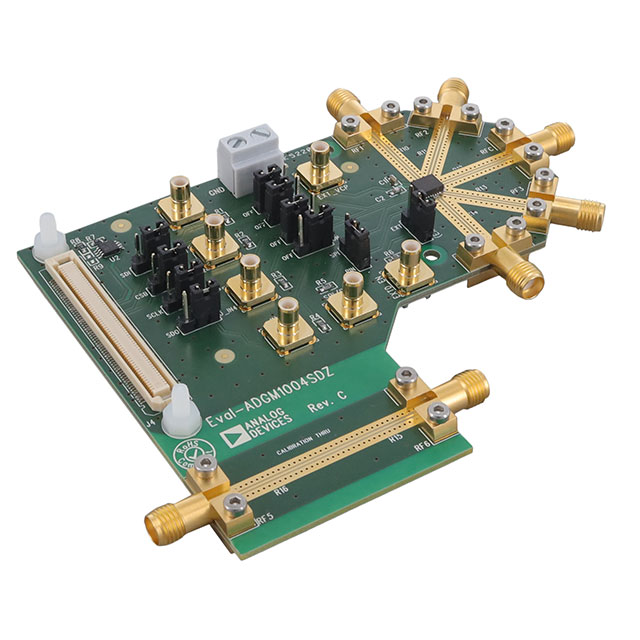

Analog Devices EVAL-ADGM1004SDZ	ADGM1004	Board(s)	0 Hz	13 GHz	Switch SP4T
Analog Devices ADGM1004JCPZ-R2						50 Ohms	24-LFCSP (5x4)	Surface Mount	0.45 dB	0 °C	85 °C	24 dB	24-LFQFN Exposed Pad CSP	67 dBm	3.3 V	DC	13 GHz	2.5 GHz

Catalog

0 Hz/DC to 13 GHz, 2.5 kV HBM ESD, SP4T, MEMS Switch with Integrated Driver

Key Features

• Fully operational down to 0 Hz/dcOn resistance: 2.9 Ω (maximum)Off leakage: 0.5 nA (maximum)

• On resistance: 2.9 Ω (maximum)

• Off leakage: 0.5 nA (maximum)

• −3 dB bandwidth10.8 GHz (typical) for RF1, RF413 GHz (typical) for RF2, RF3

• 10.8 GHz (typical) for RF1, RF4

• 13 GHz (typical) for RF2, RF3

• RF performance characteristicsInsertion loss: 0.45 dB (typical) at 2.5 GHzIsolation: 24 dB (typical) at 2.5 GHzIP3: 67 dBm (typical)RF input power: 32 dBm (maximum)

• Insertion loss: 0.45 dB (typical) at 2.5 GHz

• Isolation: 24 dB (typical) at 2.5 GHz

• IP3: 67 dBm (typical)

• RF input power: 32 dBm (maximum)

• Actuation lifetime: 1 billion cycles (minimum)Hermetically sealed switch contactsOn switching time: 75 µs (maximum)

• Hermetically sealed switch contacts

• On switching time: 75 µs (maximum)

• ESD HBM rating5 kV for RF1 to RF4 and RFC pins2.5 kV for all other pins

• 5 kV for RF1 to RF4 and RFC pins

• 2.5 kV for all other pins

• Integrated driver removes the need for an external driverSupply voltage: 3.0 V to 3.6 VCMOS/LVTTL compatibleParallel and SPI InterfaceIndependently controllable switches

• Supply voltage: 3.0 V to 3.6 V

• CMOS/LVTTL compatible

• Parallel and SPI Interface

• Independently controllable switches

• Switch is in an open state with no power supply present

• Requirement to avoid floating nodes on all RFx pins

• 5 mm × 4 mm × 1.45 mm, 24-lead LFCSP

• Operating temperature range: 0°C to 85°C

Description

The ADGM1004 is a wideband, single-pole, four-throw (SP4T) switch fabricated using Analog Devices, Inc., microelectro-mechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational from 0 Hz/dc to 13 GHz, making it an ideal solution for a wide range of RF and precision equipment switching needs.An integrated driver chip generates a high voltage to electrostatically actuate switch that can be controlled by a parallel interface and a serial peripheral interface (SPI). All four switches are independently controllable.The device is packaged in a 24-lead, 5 mm × 4 mm × 1.45 mm, lead frame chip-scale package (LFCSP).To ensure optimum operation of the ADGM1004, follow the Critical Operational Requirements section exactly.The on resistance (RON) performance of the ADGM1004 is affected by part to part variation, channel to channel variation, cycle actuations, settling time post turn on, bias voltage, and temperature changes.Note that throughout this data sheet, multifunction pins, such as IN1/SDI, are referred to either by the entire pin name or by a single function of the pin, for example, SDI, when only that function is relevant.ApplicationsRelay replacementsAutomatic test equipment (ATE): RF, digital, and mixed signalsLoad and probe boards: RF, digital, and mixed signalsRF test instrumentationReconfigurable filters and attenuatorsHigh performance RF switching
