BXRH-35 Series

Manufacturer: BRIDGELUX

Catalog

LED COB V6 HD WARM WHT SQU 3500K

Part	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Type	Lens Type	Height	Configuration	Color	Temperature - Test	Light Emitting Surface (LES) [diameter]	Current - Test	Viewing Angle	CRI (Color Rendering Index)	Current - Max [Max]	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Height [z]

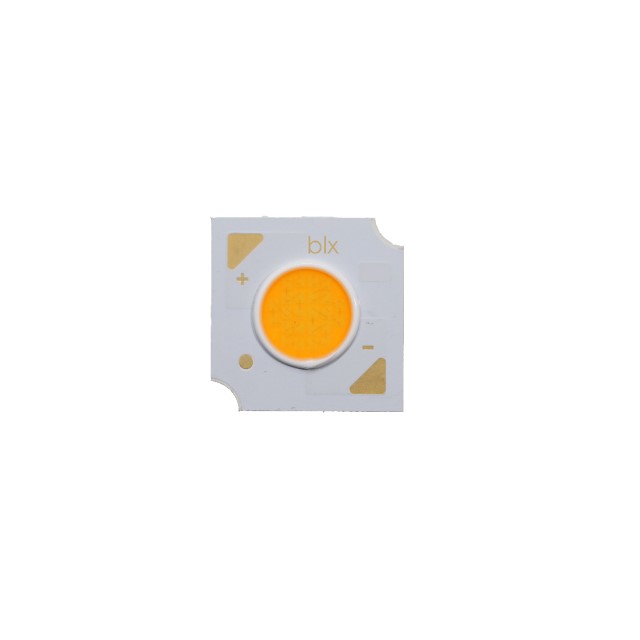

BRIDGELUX BXRH-35E1000-B-83	13.5 mm	13.5 mm	144 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	6.6 mm	350 mA	120 °	80	600 mA	3500 K	3-Step MacAdam Ellipse	1839 lm	36.6 V
BRIDGELUX BXRH-35A3001-D-73	19 mm	19 mm	102 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	85 °C	9.2 mm		120 °	93	960 mA	3500 K	3-Step MacAdam Ellipse	2526 lm	35.4 V
BRIDGELUX BXRH-35A0601-A-73	12.5 mm	12.5 mm	91 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	85 °C	5.2 mm	175 mA	120 °	93	240 mA	3500 K	3-Step MacAdam Ellipse	565 lm	35.4 V
BRIDGELUX BXRH-35A3001-D-23			84 lm/W	Chip On Board (COB)	Flat		Square	Warm White	25 °C	9.5 mm	1 A	112 °	93	1.4 A	3500 K	3-Step MacAdam Ellipse	3074 lm	36.6 V	1.7 mm
BRIDGELUX BXRH-35G0600-B-83	12.5 mm	12.5 mm	114 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	4.8 mm	350 mA	120 °	90	600 mA	3500 K	3-Step MacAdam Ellipse		18.3 V
BRIDGELUX BXRH-35H3000-D-83	19 mm	19 mm	107 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	8.8 mm		120 °	97	1.2 A	3500 K	3-Step MacAdam Ellipse	2744 lm	36.6 V
BRIDGELUX BXRH-35A3001-D-83	19 mm	19 mm		Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	9.2 mm		120 °	93	960 mA	3500 K	3-Step MacAdam Ellipse		36.4 V
BRIDGELUX BXRH-35E0300-B-83	12.5 mm	12.5 mm	144 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	3.8 mm		120 °	80	360 mA	3500 K	3-Step MacAdam Ellipse	405 lm	17.6 V
BRIDGELUX BXRH-35H0300-A-83	12.5 mm	12.5 mm	106 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	25 °C	3.8 mm	80 mA	120 °	97	180 mA	3500 K	3-Step MacAdam Ellipse	299 lm	35.2 V
BRIDGELUX BXRH-35A1001-B-73	13.5 mm	13.5 mm	95 lm/W	Chip On Board (COB)	Flat	1.63 mm	Square	Warm White	85 °C	7 mm	350 mA	120 °	93	480 mA	3500 K	3-Step MacAdam Ellipse	1173 lm	35.4 V
