DF11G Series

Catalog

CONN HEADER SMD 26POS 2MM

Part	Mated Stacking Heights	Contact Material	Number of Rows [custom]	Termination	Number of Positions Loaded	Fastening Type	Shrouding	Features	Contact Shape	Material Flammability Rating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Mounting Type	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Contact Type	Voltage Rating	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Finish - Mating

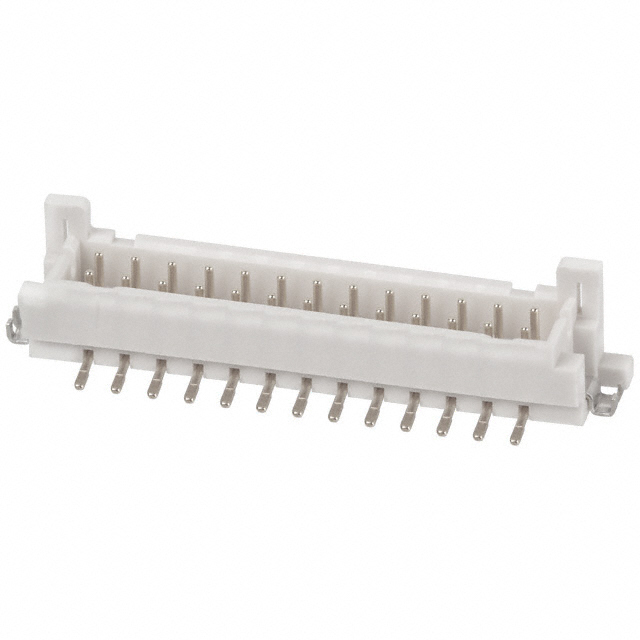

Hirose Electric Co Ltd DF11GZ-26DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	26	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable
Hirose Electric Co Ltd DF11G-10DP-2V(50)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	10	2 mm	0.079 in				Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable	Gold

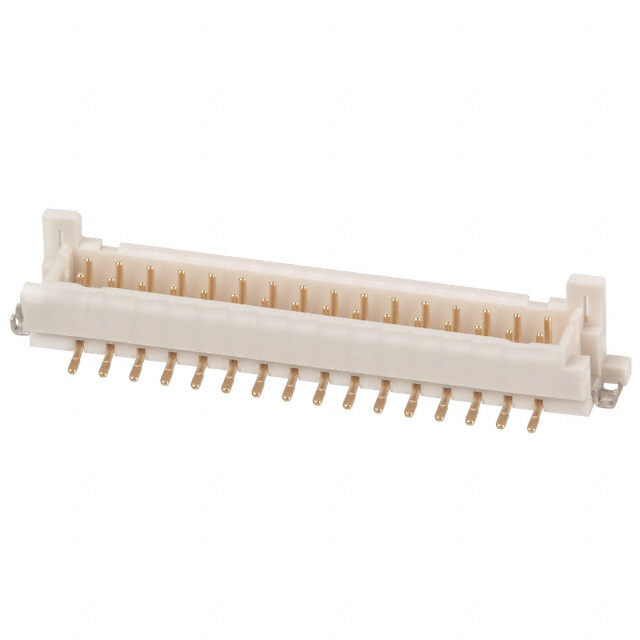

Hirose Electric Co Ltd DF11G-32DP-2V(50)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0		2 mm	0.079 in				Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable	Gold

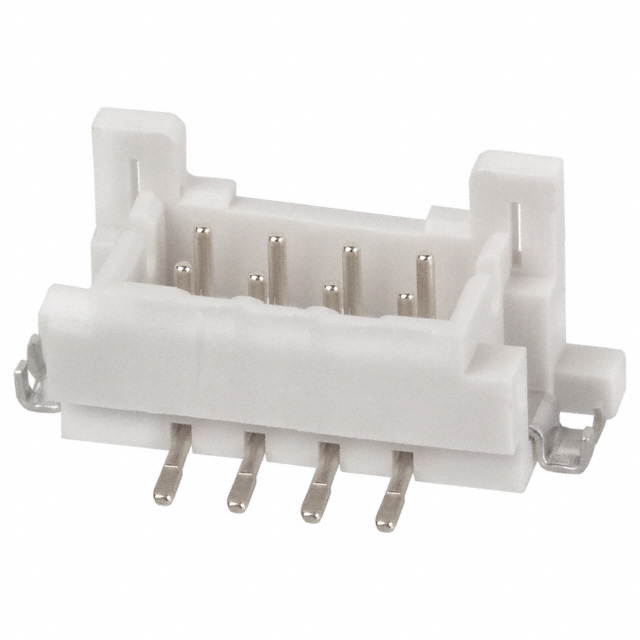

Hirose Electric Co Ltd DF11GZ-8DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	8	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable
Hirose Electric Co Ltd DF11GZ-30DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	30	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable
Hirose Electric Co Ltd DF11G-8DP-2V(50)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	8	2 mm	0.079 in				Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable	Gold

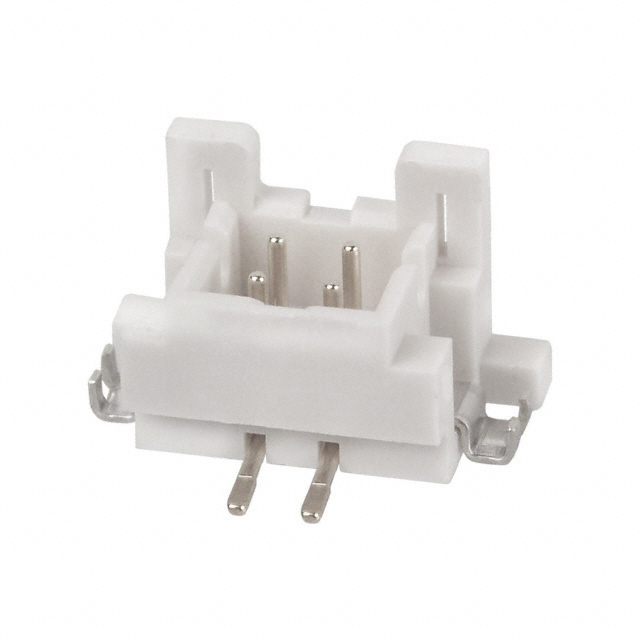

Hirose Electric Co Ltd DF11GZ-4DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	4	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable
Hirose Electric Co Ltd DF11GZ-28DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	28	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable

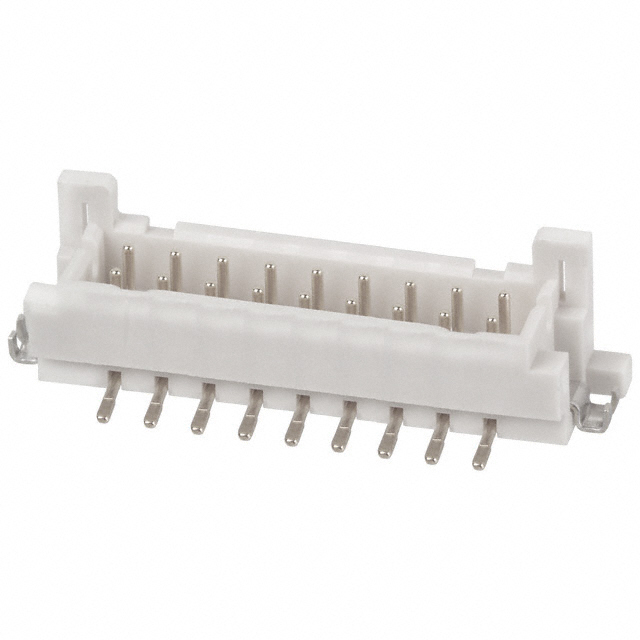

Hirose Electric Co Ltd DF11GZ-18DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	18	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable

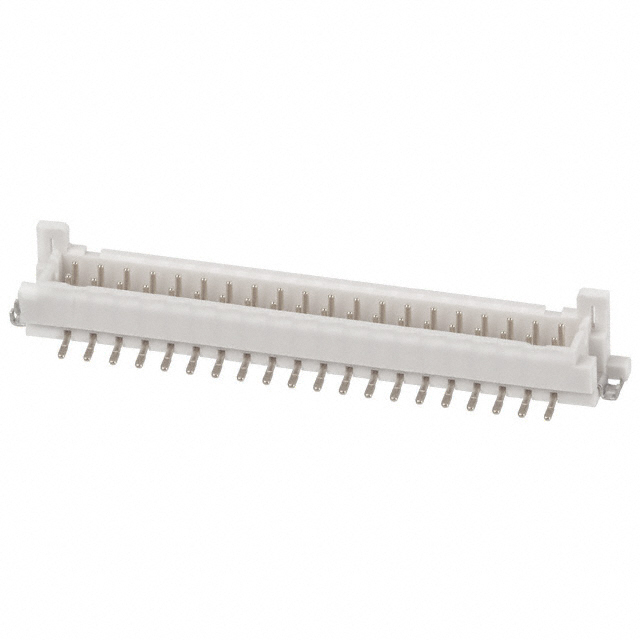

Hirose Electric Co Ltd DF11GZ-40DP-2V(20)	8.2 mm 8.45 mm 9.55 mm	Brass	2	Solder	All	Detent Lock	Shrouded - 4 Wall	Board Guide Solder Retention	Circular	UL94 V-0	40	2 mm	0.079 in	39.4 µin	1 µm	Tin	Surface Mount	Nylon Polyamide (PA)	0.283 in	7.19 mm	Beige	Male Pin	250 V	2 A	Header	0.079 "	2 mm	85 °C	-30 ░C	Board to Board Cable
