DF19L Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER BRD EDGE 30P 1MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Features | Insulation Material | Contact Type | Number of Positions | Contact Finish - Mating | Insulation Height [custom] | Insulation Height [custom] | Pitch - Mating | Pitch - Mating | Contact Material | Connector Type | Voltage Rating | Mounting Type | Material Flammability Rating | Fastening Type | Insulation Color | Number of Positions Loaded | Style | Number of Rows | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 85 °C | -35 °C | Shrouded - 3 Wall | Solder Retention | Nylon Polyamide (PA) | Male Pin | 30 | Gold | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Phosphor Bronze | Receptacle | 100 V | Board Edge Cutout Surface Mount Right Angle | UL94 V-0 | Friction Lock | Black | All | Board to Cable/Wire | 1 | Solder | ||||||

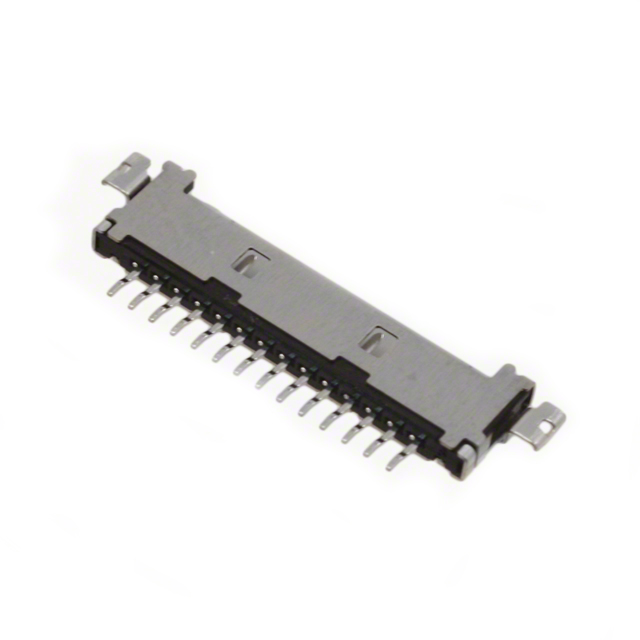

 Hirose Electric Co Ltd | 85 °C | -35 °C | Shrouded - 3 Wall | Solder Retention | Nylon Polyamide (PA) | Male Pin | 14 | Gold | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Phosphor Bronze | Receptacle | 100 V | Board Edge Cutout Surface Mount Right Angle | UL94 V-0 | Friction Lock | Black | All | Board to Cable/Wire | 1 | Solder | ||||||

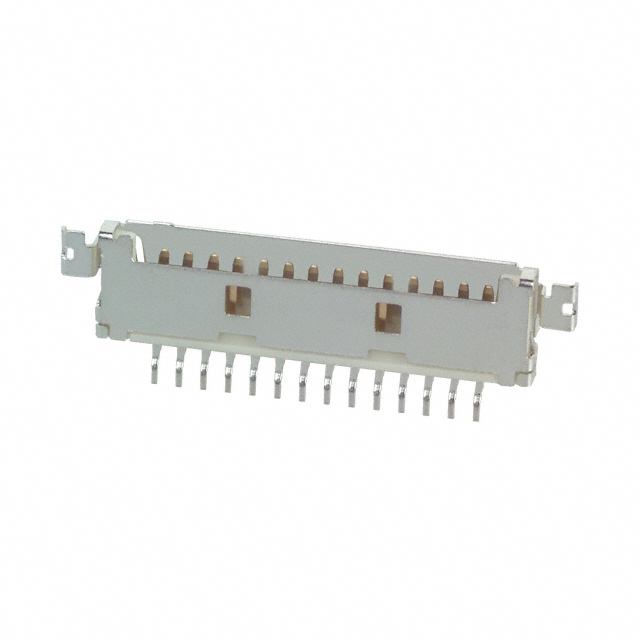

 Hirose Electric Co Ltd | 85 °C | -35 °C | Shrouded - 3 Wall | Solder Retention | Nylon Polyamide (PA) | Male Pin | 14 | Gold | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Phosphor Bronze | Receptacle | 100 V | Board Edge Cutout Surface Mount Right Angle | UL94 V-0 | Friction Lock | Beige | All | Board to Cable/Wire | 1 | Solder | ||||||
Hirose Electric Co Ltd | 85 °C | -35 °C | Shrouded - 3 Wall | Solder Retention | Nylon Polyamide (PA) | Male Pin | 14 | Gold | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Phosphor Bronze | Receptacle | 100 V | Board Edge Cutout Surface Mount Right Angle | UL94 V-0 | Friction Lock | Beige | All | Board to Cable/Wire | 1 | Solder | ||||||
 Hirose Electric Co Ltd | 85 °C | -35 °C | Shrouded - 3 Wall | Solder Retention | Nylon Polyamide (PA) | Male Pin | 20 | Gold | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Phosphor Bronze | Receptacle | 100 VAC | Board Edge Cutout Surface Mount Right Angle | UL94 V-0 | Friction Lock | Black | All | Board to Cable/Wire | 1 | Solder | 0.1 Ám | 3.94 Áin | Varies by Wire Gauge | Gold | 3.94 µin | 0.1 µm |
