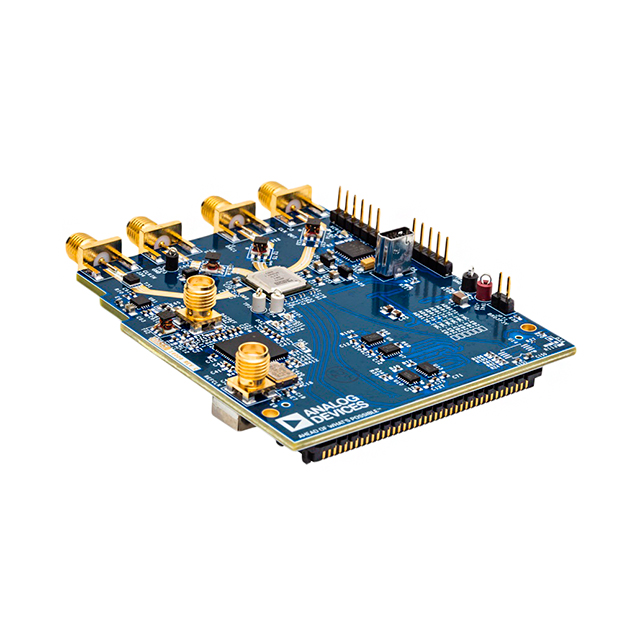

Dual, 16-Bit, 12.6 GSPS RF DAC with Channelizers
Key Features
• Supports multiband wireless applications3 bypassable, complex data input channels per RF DAC1.54 GSPS maximum complex input data rate per input channel1 independent NCO per input channel
• 3 bypassable, complex data input channels per RF DAC
• 1.54 GSPS maximum complex input data rate per input channel
• 1 independent NCO per input channel
• Proprietary, low spurious and distortion design2-tone intermodulation distortion (IMD) = −83 dBc at 1.8 GHz, −7 dBFS/tone RF outputSpurious free dynamic range (SFDR) <−80 dBc at 1.8 GHz, −7 dBFS RF output
• 2-tone intermodulation distortion (IMD) = −83 dBc at 1.8 GHz, −7 dBFS/tone RF output
• Spurious free dynamic range (SFDR) <−80 dBc at 1.8 GHz, −7 dBFS RF output
• Flexible 8-lane, 15.4 Gbps JESD204B interfaceSupports single-band and multiband use casesSupports 12-bit high density mode for increased data throughput
• Supports single-band and multiband use cases
• Supports 12-bit high density mode for increased data throughput
• Multiple chip synchronizationSupports JESD204B Subclass 1
• Supports JESD204B Subclass 1
• Selectable interpolation filter for a complete set of input data rates1×, 2×, 3×, 4×, 6×, and 8× configurable data channel interpolation1×, 2×, 4×, 6×, 8×, and 12× configurable final interpolation
• 1×, 2×, 3×, 4×, 6×, and 8× configurable data channel interpolation
• 1×, 2×, 4×, 6×, 8×, and 12× configurable final interpolation
• Final 48-bit NCO that operates at the DAC rate to support frequency synthesis up to 6 GHz
• Transmit enable function allows extra power saving and downstream circuitry protection
• High performance, low noise PLL clock multiplierSupports 12.6 GSPS DAC update rateObservation ADC clock driver with selectable divide ratios
• Supports 12.6 GSPS DAC update rate
• Observation ADC clock driver with selectable divide ratios
• Low power2.55 W at 12 GSPS, dual channel mode
• 2.55 W at 12 GSPS, dual channel mode
• 10 mm × 10 mm, 144-ball BGA_ED with metal enhanced thermal lid, 0.80 mm pitch
Description
AI
The AD9172 is a high performance, dual, 16-bit digital-to-analog converter (DAC) that supports DAC sample rates to 12.6 GSPS. The device features an 8-lane, 15 Gbps JESD204B data input port, a high performance, on-chip DAC clock multiplier, and digital signal processing capabilities targeted at single-band and multiband direct to radio frequency (RF) wireless applications.The AD9172 features three complex data input channels per RF DAC that are bypassable. Each data input channel includes a configurable gain stage, an interpolation filter, and a channel numerically controlled oscillator (NCO) for flexible, multiband frequency planning. The device supports up to a 1.5 GSPS complex data rate per input channel and is capable of aggregating multiple complex input data streams up to a maximum complex data rate of 1.5 GSPS. Additionally, the AD9172 supports ultrawide bandwidth modes bypassing the channelizers to provide maximum data rates of up to 3.08 GSPS (with 16-bit resolution) and 4.1 GSPS (with 12-bit resolution).The AD9172 is available in a 144-ball BGA_ED package.PRODUCT HIGHLIGHTSSupports single-band and multiband wireless applications with three bypassable complex data input channels per RF DAC at a maximum complex input data rate of 1.5 GSPS. One independent NCO per input channel.Ultrawide bandwidth channel bypass modes supporting up to 3 GSPS data rates with 16-bit resolution and 4 GSPS with 12-bit resolution.Low power dual converter decreases the amount of power consumption needed in high bandwidth and multichannel applications.APPLICATIONSWireless communications infrastructureMultiband base station radiosMicrowave/E-band backhaul systemsInstrumentation, automatic test equipment (ATE)Radars and jammers
