SN74ALVC125 Series

4-ch, 1.65-V to 3.6-V buffers with 3-state outputs

Catalog

4-ch, 1.65-V to 3.6-V buffers with 3-state outputs

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits per Element	Package / Case [custom]	Package / Case [custom]	Package / Case	Logic Type	Supplier Device Package	Current - Output High, Low	Number of Elements	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Output Type	Package / Case [x]	Package / Case [y]

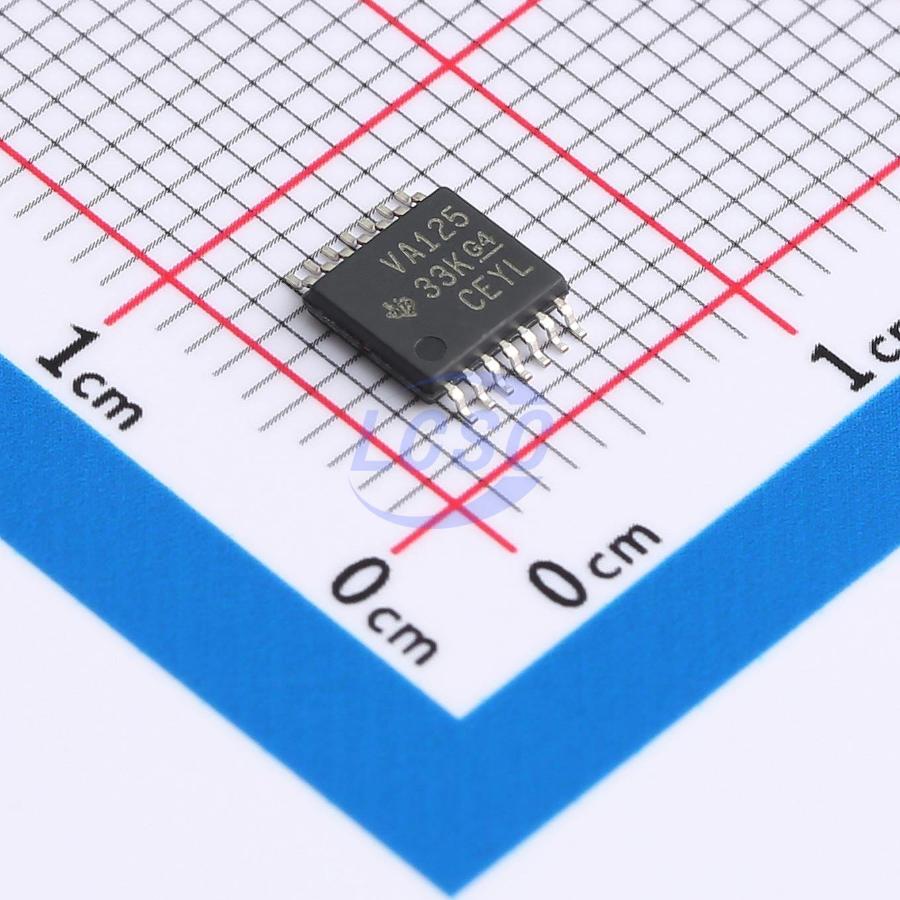

Texas Instruments SN74ALVC125PWR	85 °C	-40 °C	1	0.173 "	4.4 mm	14-TSSOP	Buffer Non-Inverting	14-TSSOP	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State
Texas Instruments SN74ALVC125NSRE4	85 °C	-40 °C	1			14-SOIC	Buffer Non-Inverting	14-SO	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State	0.209 "	5.3 mm
Texas Instruments SN74ALVC125PW	85 °C	-40 °C	1	0.173 "	4.4 mm	14-TSSOP	Buffer Non-Inverting	14-TSSOP	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State
Texas Instruments SN74ALVC125DGVR	85 °C	-40 °C	1			14-TFSOP	Buffer Non-Inverting		24 mA	4	1.65 V	3.6 V	Surface Mount	3-State	0.173 in 4.4 mm
Texas Instruments SN74ALVC125NS	85 °C	-40 °C	1			14-SOIC	Buffer Non-Inverting	14-SO	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State	0.209 "	5.3 mm
Texas Instruments SN74ALVC125D	85 °C	-40 °C	1			14-SOIC	Buffer Non-Inverting		24 mA	4	1.65 V	3.6 V	Surface Mount	3-State	0.154 in	3.9 mm
Texas Instruments SN74ALVC125PWE4	85 °C	-40 °C	1	0.173 "	4.4 mm	14-TSSOP	Buffer Non-Inverting	14-TSSOP	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State
Texas Instruments SN74ALVC125PWRE4	85 °C	-40 °C	1	0.173 "	4.4 mm	14-TSSOP	Buffer Non-Inverting	14-TSSOP	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State
Texas Instruments SN74ALVC125PWRG4	85 °C	-40 °C	1	0.173 "	4.4 mm	14-TSSOP	Buffer Non-Inverting	14-TSSOP	24 mA	4	1.65 V	3.6 V	Surface Mount	3-State

Catalog

4-ch, 1.65-V to 3.6-V buffers with 3-state outputs

Key Features

• Operates From 1.65 V to 3.6 VMax tpdof 2.8 ns at 3.3 V±24-mA Output Drive at 3.3 VLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)Operates From 1.65 V to 3.6 VMax tpdof 2.8 ns at 3.3 V±24-mA Output Drive at 3.3 VLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)

Description

This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCCoperation. The SN74ALVC125 features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE)\ input is high. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCCoperation. The SN74ALVC125 features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE)\ input is high. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
