DC620 Series
Manufacturer: Analog Devices
Beta
⌘K

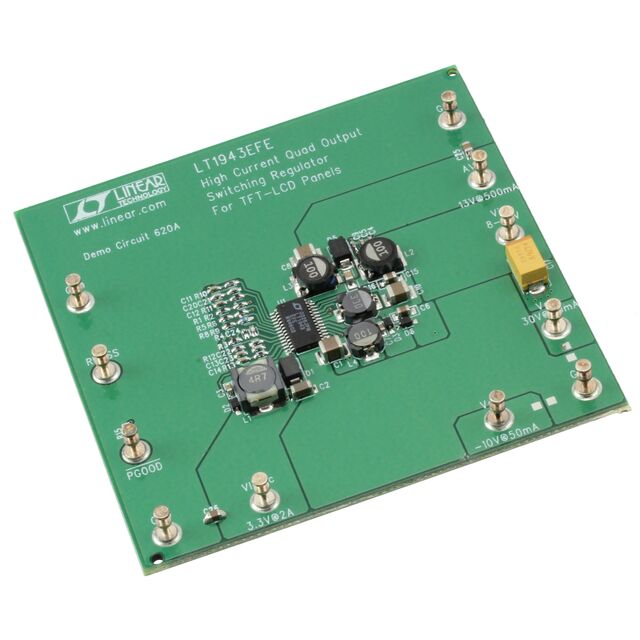

BOARD EVAL FOR LT1943EFE
| Part | Regulator Topology | Board Type | Outputs and Type | Outputs and Type | Frequency - Switching | Main Purpose | Voltage - Output | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Boost Buck Inverting | Fully Populated | 4 | Non-Isolated | 1.2 MHz | Special Purpose DC/DC LCD Supply | -10 V 3.3 V 13 V 30 VDC | Board(s) | 20 V | 8 V | LT1943 | 2 A 30 mA 50 mA 500 mA |
