FX8 Series

Catalog

CONN HDR 90POS SMD GOLD

Part	Number of Positions	Features	Pitch	Pitch	Mated Stacking Heights	Contact Finish	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Connector Type	Mounting Type	Height Above Board	Height Above Board

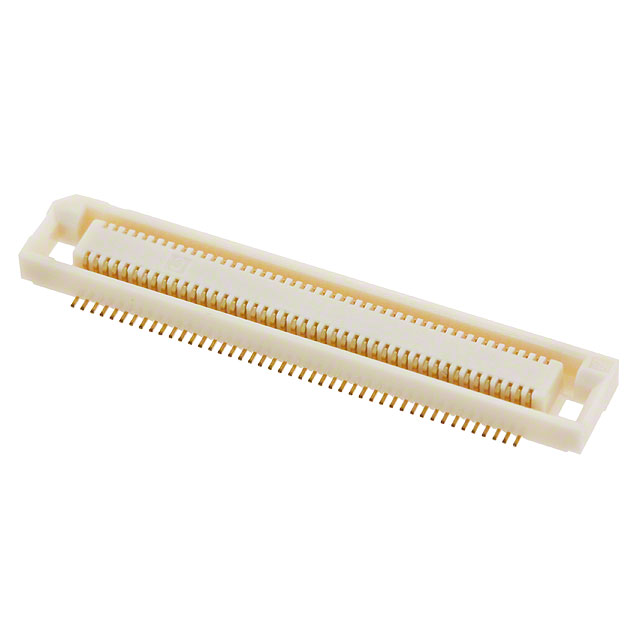

Hirose Electric Co Ltd FX8-90P-SV1(21)	90	Board Guide	0.6 mm	0.024 "	4 mm	Gold	2	3.85 mm	0.152 in	Header Outer Shroud Contacts	Surface Mount

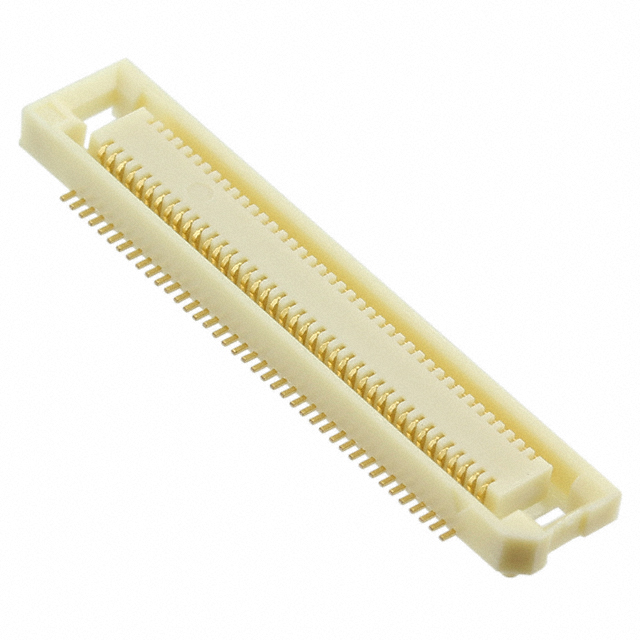

Hirose Electric Co Ltd FX8-80S-SV	80	Board Guide	0.6 mm	0.024 "	3 mm 4 mm	Gold	2	2.26 mm	0.089 in	Receptacle Center Strip Contacts	Surface Mount

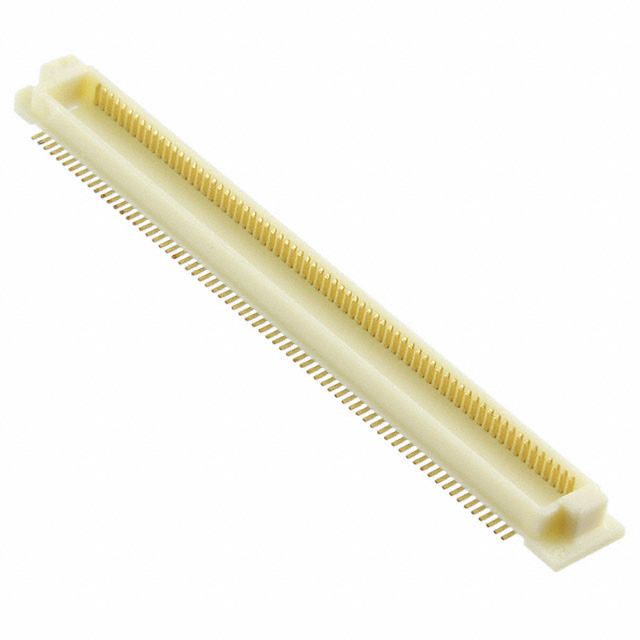

Hirose Electric Co Ltd FX8-140P-SV(92)	140	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm

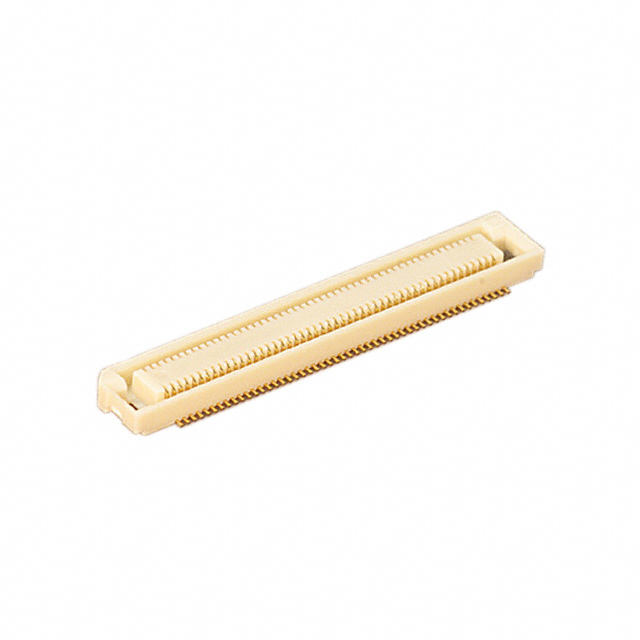

Hirose Electric Co Ltd FX8-100S-SV(21)	100	Board Guide	0.6 mm	0.024 "	3 mm 4 mm	Gold	2	2.26 mm	0.089 in	Receptacle Center Strip Contacts	Surface Mount
Hirose Electric Co Ltd FX8-90P-SV	90	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm

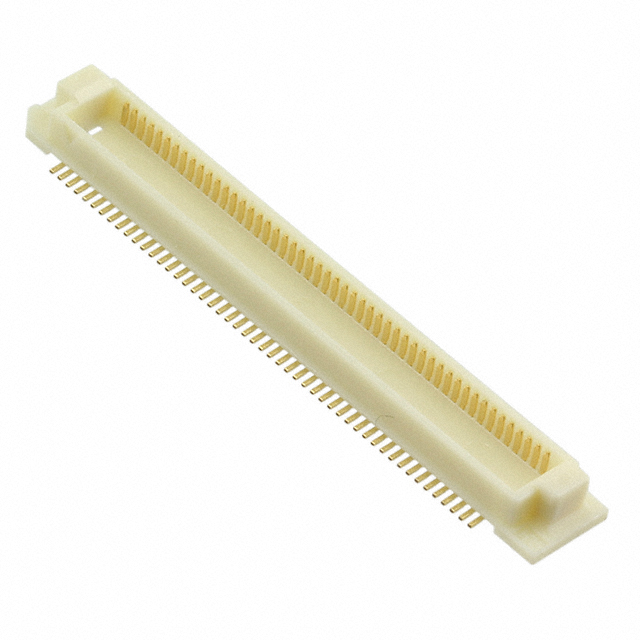

Hirose Electric Co Ltd FX8-100P-SV(21)	100	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm
Hirose Electric Co Ltd FX8-90P-SV(92)	90	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm
Hirose Electric Co Ltd FX8-80S-SV(22)	80	Board Guide	0.6 mm	0.024 "	3 mm 4 mm	Gold	2	2.26 mm	0.089 in	Receptacle Center Strip Contacts	Surface Mount
Hirose Electric Co Ltd FX8-40P-SV(71)	40	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm

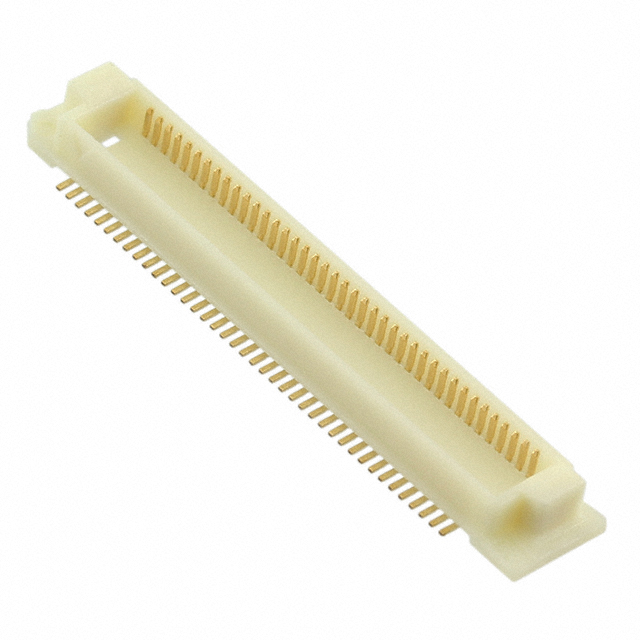

Hirose Electric Co Ltd FX8-80P-SV(71)	80	Board Guide	0.6 mm	0.024 "	3 mm	Gold	2			Header Outer Shroud Contacts	Surface Mount	0.112 "	2.85 mm
