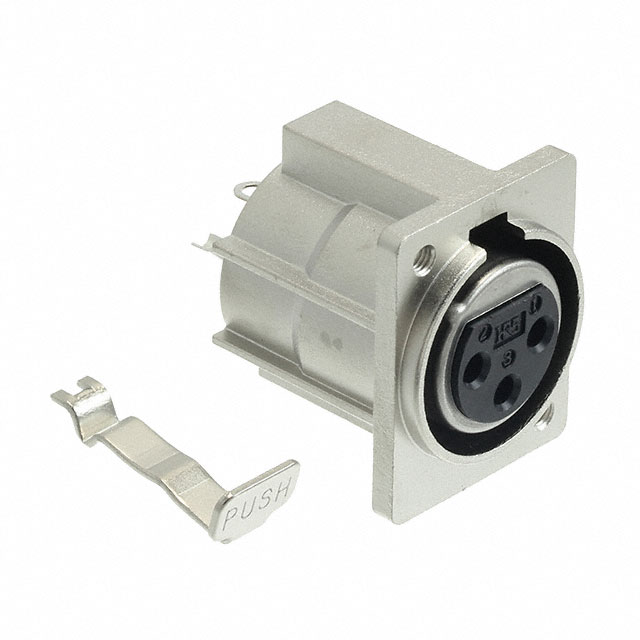

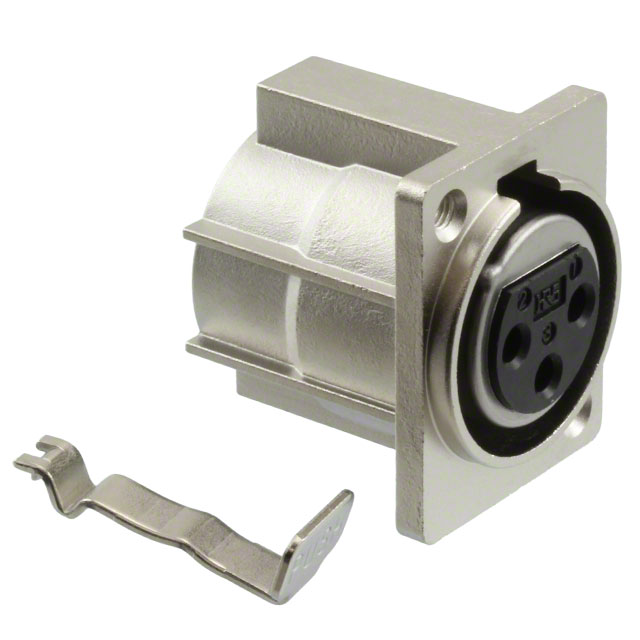

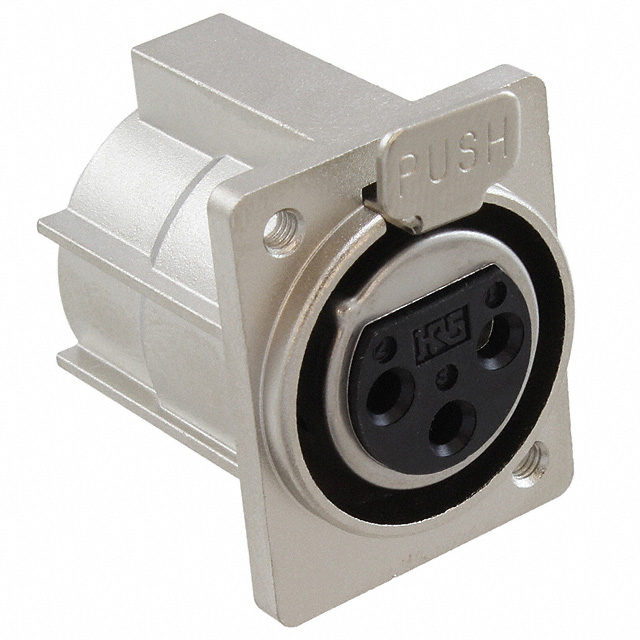

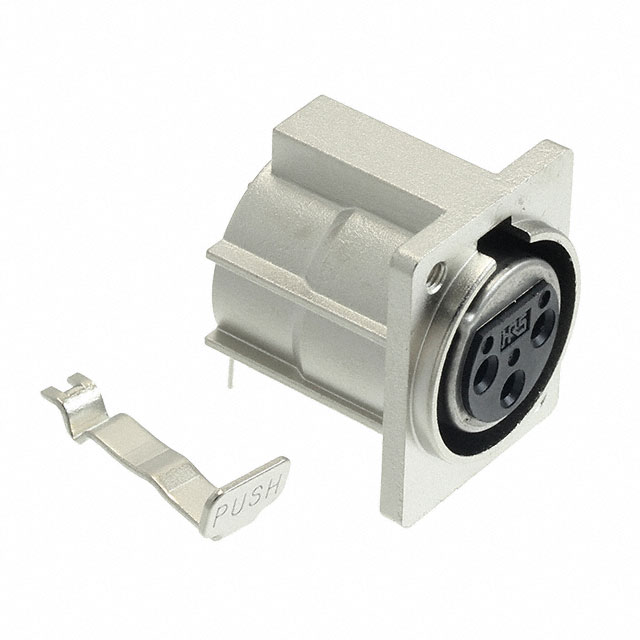

HA16PRM Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG FMALE 3P SOLDER CUP
| Part | Shell Size - Insert | Material Flammability Rating | Features | Voltage Rating | Mounting Type | Mounting Feature | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Color | Primary Material | Orientation | Fastening Type | Shell Finish | Contact Material | Current Rating (Amps) | Shielding | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 16 | UL94 V-0 | Ground | 130 VAC 180 VDC | Panel Mount | Flange | Aluminum or Zinc Alloy | -25 °C | 70 °C | Silver | Silver | Metal | Keyed | Latch Lock | Nickel | Copper Alloy | 15 A | Shielded | Plug Female Sockets | |
 Hirose Electric Co Ltd | 16 | UL94 V-0 | Ground | 130 VAC 180 VDC | Panel Mount Right Angle Through Hole | Flange | Aluminum or Zinc Alloy | -25 °C | 70 °C | Silver | Silver | Metal | Keyed | Latch Lock | Nickel | Copper Alloy | 3 A | Shielded | Plug Female Sockets | Solder |
 Hirose Electric Co Ltd | 16 | UL94 V-0 | Ground | 130 VAC 180 VDC | Panel Mount Through Hole | Flange | Aluminum or Zinc Alloy | -25 °C | 70 °C | Silver | Silver | Metal | Keyed | Latch Lock | Nickel | Copper Alloy | 3 A | Shielded | Plug Female Sockets | Solder |
 Hirose Electric Co Ltd | 16 | UL94 V-0 | 130 VAC 180 VDC | Panel Mount | Flange | Aluminum or Zinc Alloy | -25 °C | 70 °C | Silver | Metal | Keyed | Latch Lock | Nickel | 3 A | Shielded | Plug Female Sockets | ||||
Hirose Electric Co Ltd | 16 | UL94 V-0 | Ground | 130 VAC 180 VDC | Panel Mount Right Angle Through Hole | Flange | Aluminum or Zinc Alloy | -25 °C | 70 °C | Silver | Metal | Keyed | Latch Lock | Nickel | Copper Alloy | 3 A | Shielded | Plug Female Sockets | Solder |
