ADPL76030 Series

55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Catalog

55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Part	Mounting Type	Package / Case	Output Type	Number of Outputs	Duty Cycle (Max) [Max]	Clock Sync	Control Features	Function	Topology	Supplier Device Package	Output Configuration	Synchronous Rectifier	Output Phases	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Frequency - Switching	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Utilized IC / Part	Main Purpose	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output	Board Type	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]
Analog Devices ADPL76030EUFD#PBF	Surface Mount	28-WFQFN Exposed Pad	Transistor Driver	1	50 %		Current Limit Enable Frequency Control Power Good Power on Reset Soft Start	Step-Up/Step-Down	Buck-Boost	28-QFN (4x5)	Positive		4	4 V	55 V	1.4 MHz	-40 °C	125 ¯C

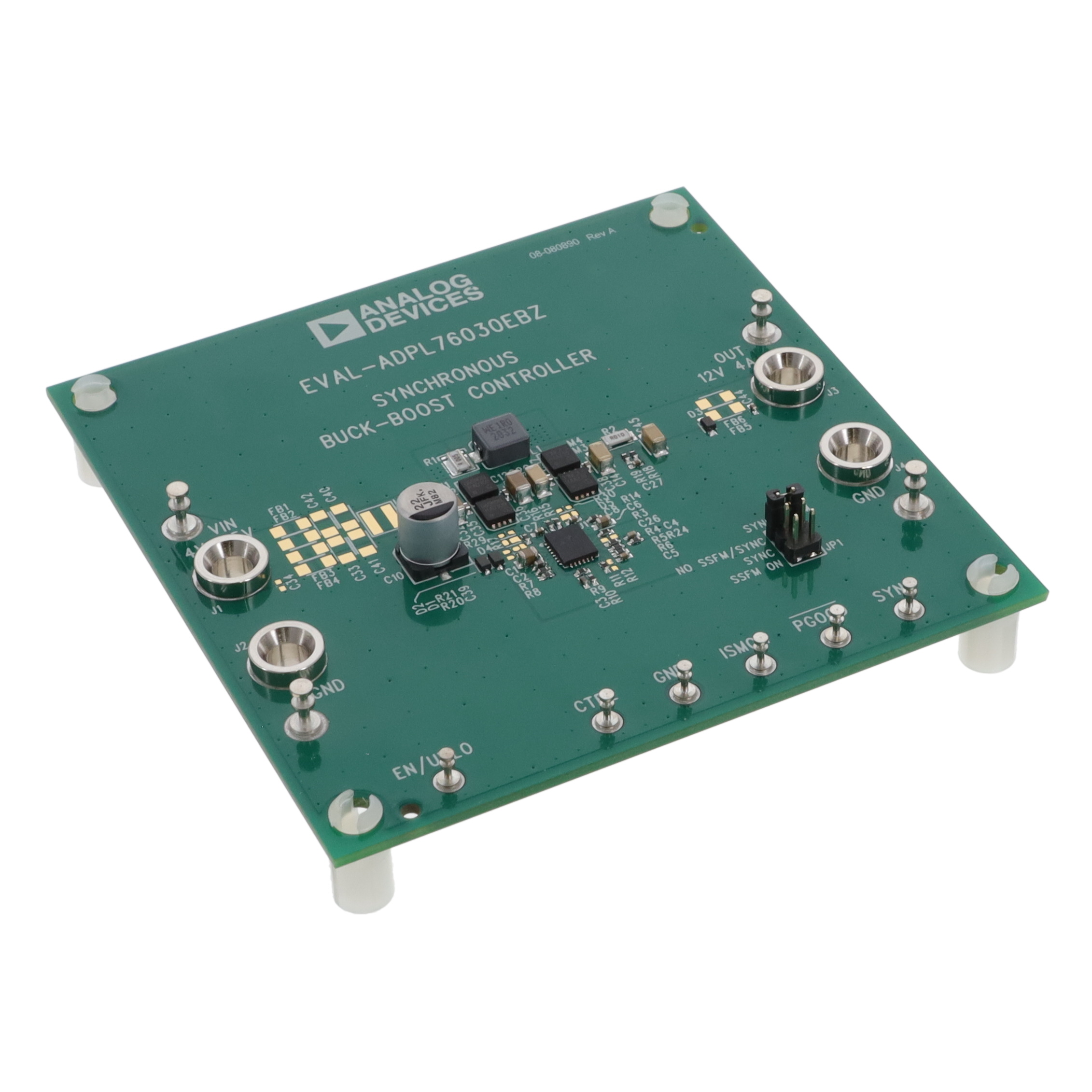

Analog Devices EVAL-ADPL76030EBZ																1.4 MHz			4 A	ADPL76030	DC/DC Step Up or Down	Board(s)	Non-Isolated	1	12 V	Fully Populated	Buck-Boost	55 V	4 V

Catalog

55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Key Features

• 4-Switch Single Inductor Architecture Allows VIN

• Above, Below, or Equal to VOUT

• Up to 95% Efficiency at 1.4 MHz

• Proprietary Peak-Buck, Peak-Boost Current-Mode

• Wide VINRange: 4 V to 55 V

• ±2% Output Voltage Accuracy: 1 V ≤ VOUT≤ 55 V

• ±3% Input or Output Current Accuracy with Monitor

• Spread Spectrum Frequency Modulation for Low EMI

• No Top MOSFET Refresh Noise in Buck or Boost

• Adjustable and Synchronizable: 600 kHz to 1.4 MHz

• VOUTDisconnected from VIN During Shutdown

Description

The ADPL76030 is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, and input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck, peak-boost current-mode control scheme allows adjustable and synchronizable 600 kHz to 1.4 MHz fixed frequency operation, or internal 25% triangle spread spectrum frequency modulation for low EMI. With a 4 V to 55 V input voltage range, 0 V to 55 V output voltage capability, and seamless low noise transitions between operation regions, the ADPL76030 is ideal for voltage regulators, and battery and supercapacitor charger applications in industrial, telecom, and even battery-powered systems.The ADPL76030 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the ADPL76030 retries, latches off, or keeps running.All registered trademarks and trademarks are the property of their respective owners.ApplicationsIndustrial, Telecom SystemsHigh Frequency, Battery-Powered System
