SQM40022 Series

Catalog

MOSFET N-CH 40V 150A TO263

Part	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Power Dissipation (Max)	Vgs (Max)	Qualification	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Supplier Device Package	Mounting Type	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Grade	Drain to Source Voltage (Vdss)
Vishay General Semiconductor - Diodes Division SQM40022E_GE3	150 A	9200 pF	N-Channel	150 W	20 V	AEC-Q101	3.5 V	160 nC	1.63 mOhm	-55 °C	175 ░C	MOSFET (Metal Oxide)	TO-263 (D2PAK)	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 V	Automotive	40 V

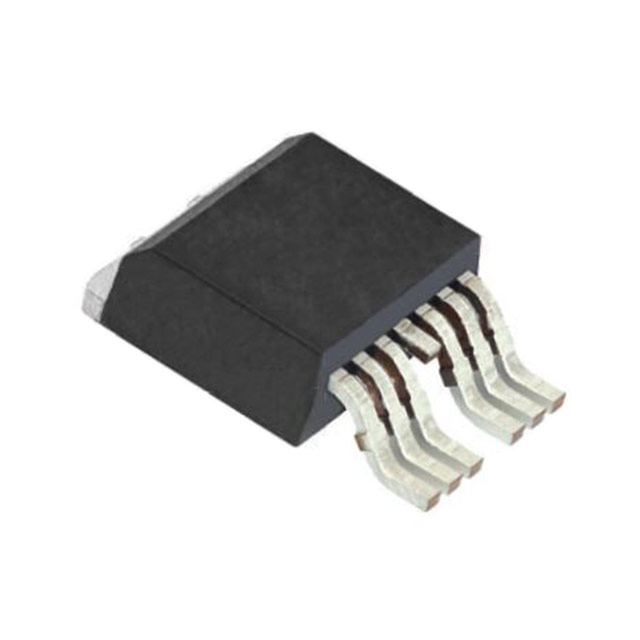

Vishay General Semiconductor - Diodes Division SQM40022EM_GE3	150 A	9200 pF	N-Channel	150 W	20 V	AEC-Q101	3.5 V	160 nC	1.63 mOhm	-55 °C	175 ░C	MOSFET (Metal Oxide)	TO-263-7	Surface Mount	D2PAK TO-263-7	10 V	Automotive	40 V
