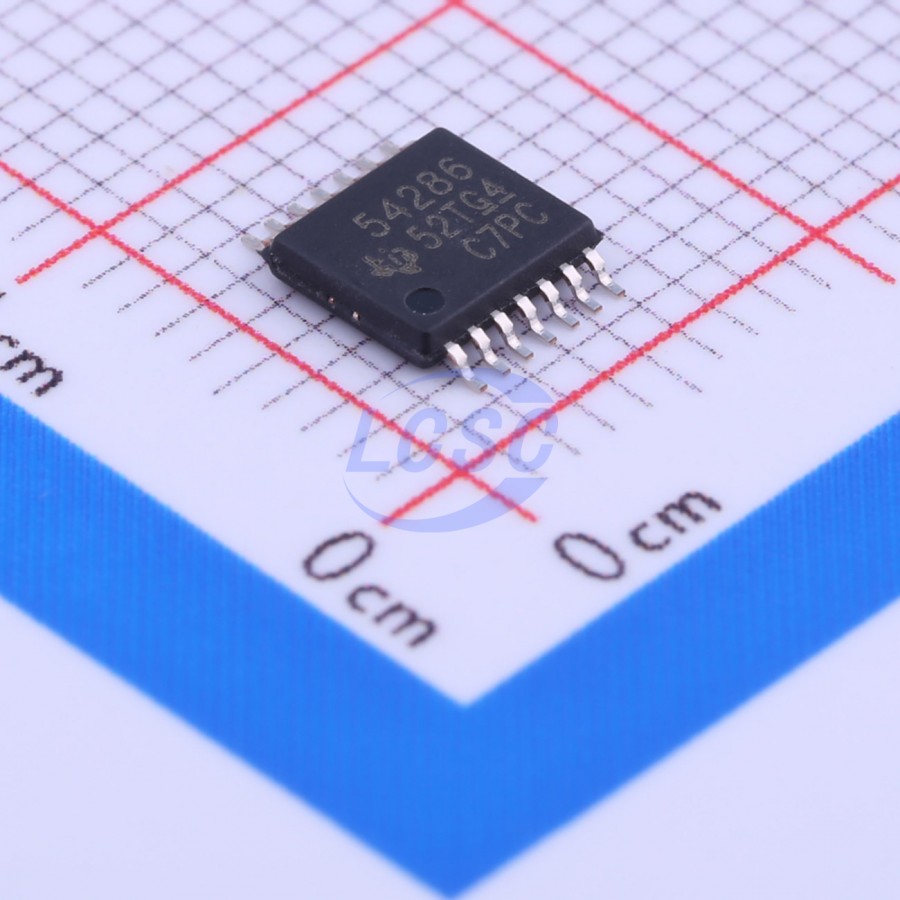

TPS54286 Series

Catalog

4.5V TO 28V INPUT, DUAL 2A OUTPUT, 600KHZ STEP-DOWN CONVERTER WITH INTERNAL COMPENSATION

Part	Output Configuration	Topology	Voltage - Output (Max)	Frequency - Switching	Voltage - Input (Min) [Min]	Output Type	Function	Current - Output	Mounting Type	Number of Outputs	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Supplier Device Package
Texas Instruments TPS54286PWP	Positive	Buck	25.2 V	630 kHz	4.5 V	Adjustable	Step-Down	2 A	Surface Mount	2	14-PowerTSSOP	4.4 mm	0.173 in	85 °C	-40 °C	0.8 V	28 V	14-HTSSOP
Texas Instruments TPS54286PWPG4	Positive	Buck	25.2 V	630 kHz	4.5 V	Adjustable	Step-Down	2 A	Surface Mount	2	14-PowerTSSOP	4.4 mm	0.173 in	85 °C	-40 °C	0.8 V	28 V	14-HTSSOP
Texas Instruments TPS54286PWPR	Positive	Buck	25.2 V	630 kHz	4.5 V	Adjustable	Step-Down	2 A	Surface Mount	2	14-PowerTSSOP	4.4 mm	0.173 in	85 °C	-40 °C	0.8 V	28 V	14-HTSSOP
