F280A2 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

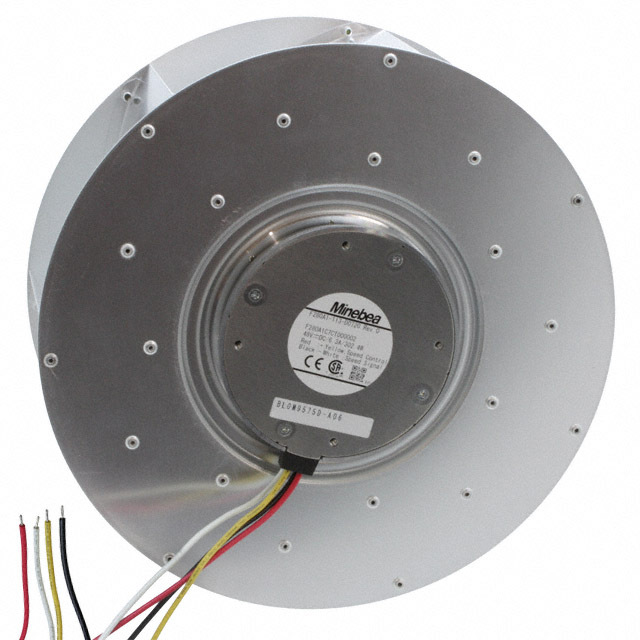

FAN IMP MTRZD 280X128.7MM 48VDC
| Part | Current Rating (Amps) | Material - Blade [custom] | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Voltage - Rated | Static Pressure | Static Pressure | Features | Termination | Power (Watts) | Weight | Weight | Fan Type | RPM | Noise | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Air Flow | Air Flow | Size / Dimension | Size / Dimension [diameter] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 2.8 A | Aluminum | 30 VDC | 72 VDC | 70000 Hrs | 48 VDC | 415.5 Pa | 1.668 in H2O | PWM Control Speed Sensor (Tach) | 4 Wire Leads | 134.4 W | 2.1 kg | 4.6 lbs | Motorized Impellers | 2000 RPM | 75 dB(A) | 70 °C | -30 ░C | -30 °C | 70 °C | Ball | 30 m³/min | 1071 CFM | Round | 280 mm | 128.7 mm |
