MAQ5300 Series

Catalog

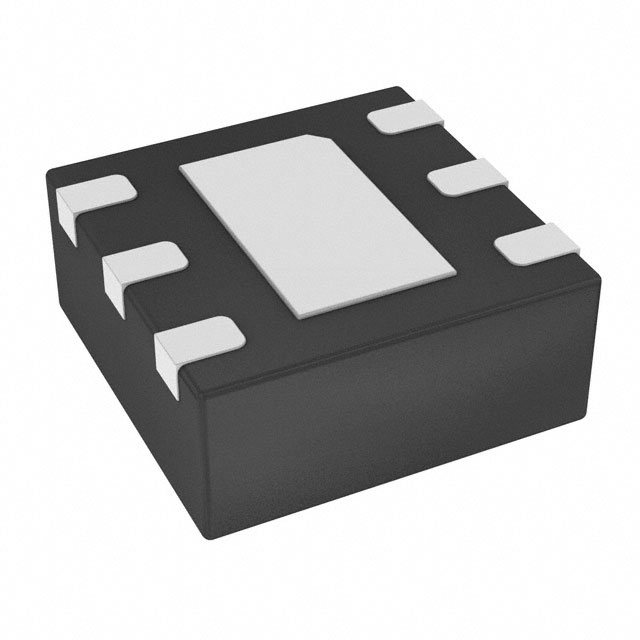

IC REG LINEAR 3V 300MA 6DFN

Part	Output Configuration	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Mounting Type	PSRR [Max]	PSRR [Min]	Control Features	Number of Regulators	Voltage - Input (Max) [Max]	Qualification	Current - Quiescent (Iq)	Output Type	Voltage Dropout (Max) [Max]	Package / Case	Supplier Device Package	Protection Features	Voltage - Output (Min/Fixed)
Microchip Technology MAQ5300-3.0YML-TRVAO	Positive	Automotive	125 °C	-40 °C	300 mA	Surface Mount	42 dB	65 dB	Enable	1	5.5 V	AEC-Q100	120 µA	1.81 mOhm	0.2 V	6-MLF® 6-VDFN Exposed Pad	6-DFN (2x2)	Over Current Over Temperature
Microchip Technology MAQ5300-3.3YML-TRVAO	Positive	Automotive	125 °C	-40 °C	300 mA	Surface Mount	42 dB	65 dB	Enable	1	5.5 V	AEC-Q100	120 µA	1.81 mOhm	0.2 V	6-MLF® 6-VDFN Exposed Pad	6-DFN (2x2)	Over Current Over Temperature	3.3 V
Microchip Technology MAQ5300-1.8YML-T5VAO	Positive	Automotive	125 °C	-40 °C	300 mA	Surface Mount	42 dB	65 dB	Enable	1	5.5 V	AEC-Q100	120 µA	1.81 mOhm	0.2 V	6-MLF® 6-VDFN Exposed Pad	6-DFN (2x2)	Over Current Over Temperature	1.8 V
Microchip Technology MAQ5300-2.5YML-TRVAO	Positive	Automotive	125 °C	-40 °C	300 mA	Surface Mount	42 dB	65 dB	Enable	1	5.5 V	AEC-Q100	120 µA	1.81 mOhm	0.2 V	6-MLF® 6-VDFN Exposed Pad	6-DFN (2x2)	Over Current Over Temperature	2.5 V
Microchip Technology MAQ5300-2.85YML-TRVAO	Positive	Automotive	125 °C	-40 °C	300 mA	Surface Mount	42 dB	65 dB	Enable	1	5.5 V	AEC-Q100	120 µA	1.81 mOhm	0.2 V	6-MLF® 6-VDFN Exposed Pad	6-DFN (2x2)	Over Current Over Temperature	2.85 V
